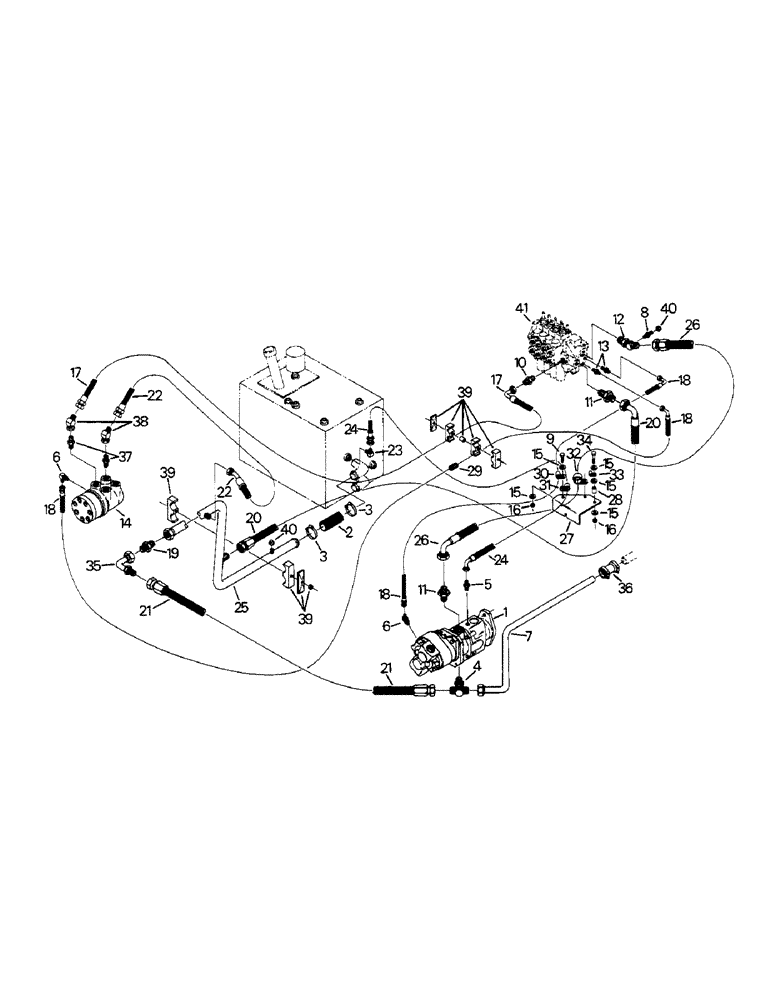

Запчасти Case IH 9110 (08-04) - HYDRAULIC SYSTEM, CONTROL VALVE AND PISTON PUMP (07) - HYDRAULICS

1

PUMP ASSEMBLY - tandem (See Fig. 8-10)

1шт.

2

1-4571

HOSE

1-1/2 x 4 inch

1шт.

3

31-1283

MOUNTING CLIP

CLAMP, 1-1/4 x 2-5/8

2шт.

4

31-2627

TEE,1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring Br

(20), 1-5/8-12 o-ring boss x 1-5/8-12 JIC 37 degree male x 1-5/8-12 JIC 37 degree male

1шт.

5

31-421

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER (6), 9/16-18 o-ring boss x 7/8-14 JIC 37 degree male

1шт.

6

18-1538

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

(4), 7/16-20 o-ring boss x 7/16-20 JIC 37 degree male

2шт.

7

50-2969T1

TUBE

- from filter tube

1шт.

8

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER, 1/8 NPT male x 7/16-20 JIC 37 degree male

1шт.

9

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

10

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER (12), 1-1/16-12 o-ring boss x 7/8-14 JIC 37 degree male

1шт.

11

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16), 1-5/16-12 o-ring boss x 1-5/16-12 JIC 37 degree male

2шт.

12

31-2695

ELBOW

(Special

1шт.

13

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

ADAPTER (6), 9/16-18 o-ring boss x 7/16-20 JIC 37 degree male

2шт.

14

VALVE ASSEMBLY - steering control (See Fig. 8-8)

1шт.

15

19-106

WASHER,5/16", SAE

- flat, 5/16

10шт.

16

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

3шт.

17

32-258

HOSE

- pressure

1шт.

18

31-2701

HOSE ASSY.

HOSE - load sense

2шт.

19

50-2565T1

VALVE

- check

1шт.

20

31-1875

HOSE ASSY.

HOSE - drain return

1шт.

21

31-2707

HOSE ASSY.

HOSE - pump drain

1шт.

22

31-2729

HOSE ASSY.

HOSE - drain return

1шт.

23

31-340

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF

1/2 NPT male x 7/8-14 JIC 37 degree male

1шт.

24

31-2698

HOSE ASSY.

HOSE - case drain

1шт.

25

90-6665T1

TUBE,1.5" OD x 27.35" L

- drain

1шт.

26

31-2699

HOSE,25.4mm ID x 1321mm L

- valve pressure

1шт.

27

50-2953T1

BRACKET

- clamp mount

1шт.

28

50-2955T1

SPACER

- clamp support

1шт.

29

50-2967T1

GUARD

PROTECTOR - flexguard

1шт.

30

31-2488

CLAMP

- hose

1шт.

31

32-302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

1шт.

32

31-1349

MOUNTING CLIP

CLAMP - hose

1шт.

33

31-1862

CLAMP

- throttle cable

1шт.

34

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

CAPSCREW, 5/16 UNC x 1-3/4 G-5

1шт.

35

31-2708

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

ELBOW, 1-5/8-12 JIC 37 degree female x 1-5/8-12 JIC 37 degree male

1шт.

36

JOINT ASSEMBLY - tube (See Fig. 8-21)

1шт.

37

31-462

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

ADAPTER (8), 3/4-16 o-ring boss x 7/8-14 JIC 37 degree male

2шт.

38

1-2056

ELBOW

- 7/8-14 JIC 37 degree female x 7/8-14 JIC 37 degree male

2шт.

39

EXISTING PARTS (See Fig. 8-6)

1шт.

40

9403369

CAP,37 Degree, 7/16"-20

NUT - cap, 7/16-20 JIC 37 degree

2шт.

41

VALVE ASSEMBLY - control (See Fig. 8-17)

1шт.
