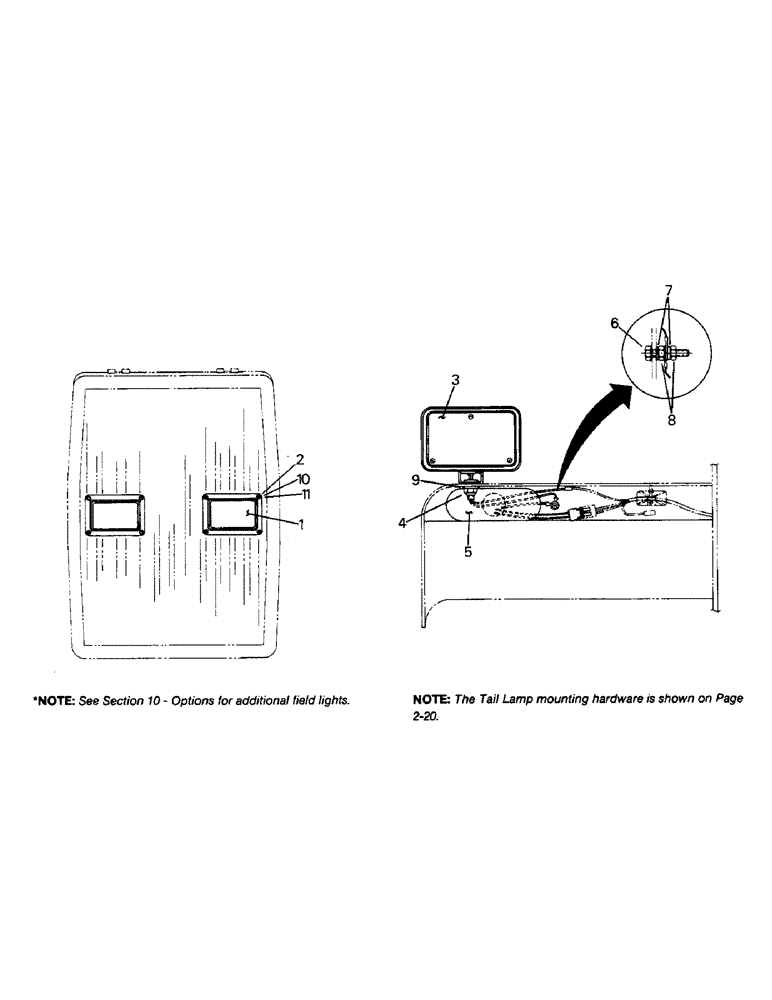

Запчасти Case IH 9110 (02-19) - CHASSIS LIGHTS (06) - ELECTRICAL

1

20-2063T1

HEADLIGHT

HEAD LAMPS

2шт.

2

19-567

NUT,#10-24

- lock, no. 10 UNC G-A

8шт.

3

LIGHT ASSEMBLY - field (See Fig. 2-20)

2шт.

See Section 10 - Options for additional field lights.

1шт.

4

19-653

LOCK NUT

- lock, 1/2 UNC G-A

2шт.

5

LAMP ASSEMBLY - tail (See Fig. 2-20)

2шт.

6

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

MACHINE SCREW, 1/4 UNC x 1-1/4

2шт.

7

19-115

LOCK WASHER,1/4"

1/4"

4шт.

8

19-76

NUT,1/4"-20, G5

- 1/4 UNC G-B

4шт.

9

22-367

SPRING WASHER

- curved spring, 1/2

2шт.

10

19-195

WASHER,#10

- flat, no. 10

8шт.

11

19-297

LOCK WASHER,#10

Washer, Lock, #10

8шт.
