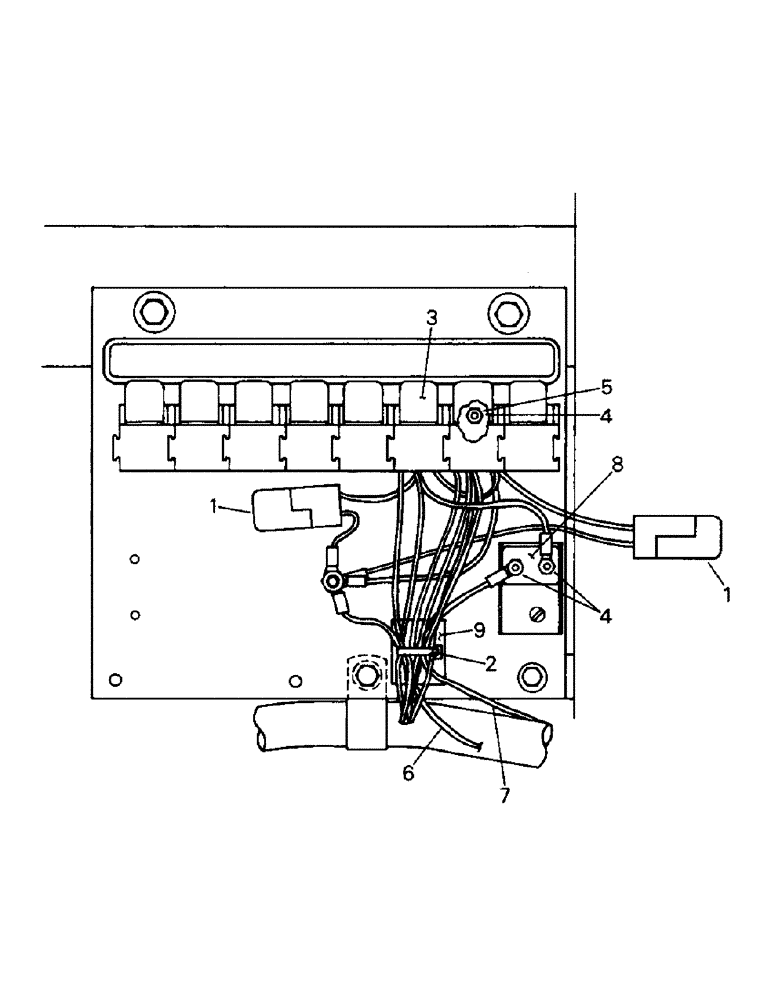

Запчасти Case IH 9110 (02-17) - INSTRUMENTATION GROUP, TRANSMISSION (06) - ELECTRICAL

1

22-738

DIODE

- transmission

2шт.

2

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

3

1-7877

RELAY

- electrical

2шт.

4

19-481

SERRATED NUT

- keps, no. 10 UNF

4шт.

5

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

2шт.

6

20-2328T1

HARNESS

WIRE - ground

1шт.

7

20-2301T1

ELECTRICAL WIRE

WIRE - power, from junction block

1шт.

8

22-670

BREAKER

CIRCUIT BREAKER - 10 amp.

1шт.

9

22-823

MOUNT

MOUNT - adhesive backed

1шт.
