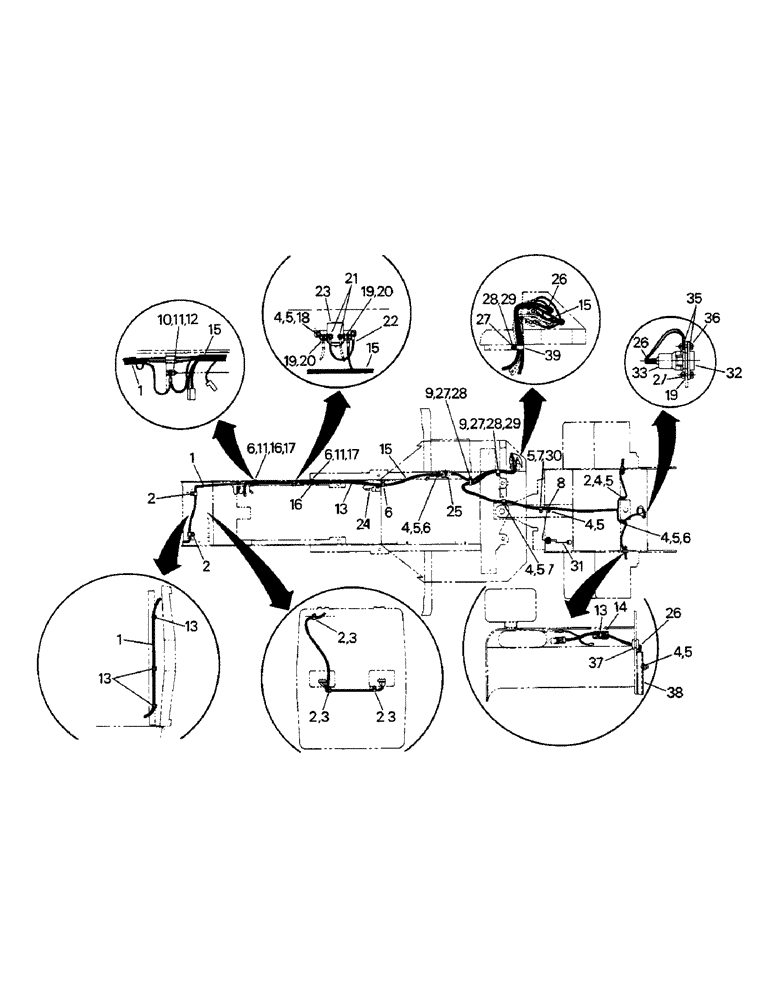

Запчасти Case IH 9110 (02-14) - EXTERIOR WIRING (06) - ELECTRICAL

1

20-2224T1

HARNESS

- headlight

1шт.

2

22-1109

CLAMP

- harness

6шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

TAPPING SCREW, 1/4 UNC x 3/4

3шт.

4

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

11шт.

5

19-105

WASHER,1/4", SAE

- flat, 1/4

12шт.

6

31-2488

CLAMP

- harness

5шт.

7

31-1776

MOUNTING CLIP

CLAMP - harness

2шт.

8

31-1443

CLAMP

- harness

1шт.

9

31-1349

MOUNTING CLIP

CLAMP - harness

1шт.

10

19-243

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, 3/8

1шт.

11

19-224

WASHER,3/8", SAE

- flat, 3/8

3шт.

12

232-4136

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8 UNC G-B

1шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

14

22-823

MOUNT

MOUNT - adhesive backed

2шт.

15

20-2225T2

HARNESS

- front frame

1шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

- 3/8 UNC G-B

2шт.

17

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW, 3/8 UNC x 1 G-5

2шт.

18

19-115

LOCK WASHER,1/4"

1/4"

2шт.

19

19-116

LOCK WASHER,5/16"

5/16"

4шт.

20

19-88

NUT,5/16"-24, G5

- 5/16 UNF G-B

2шт.

21

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, No. 8 UNC G-A

2шт.

22

20-1198T1

ELECTRICAL WIRE

WIRE - ground starter switch

1шт.

23

20-1608T1

SOLENOID

SWITCH - magnetic starter

1шт.

24

22-729

SWITCH

- brake light

1шт.

25

20-1989T1

SWITCH

- hydraulic oil temperature

1шт.

26

20-2220T1

HARNESS

- rear frame

1шт.

27

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

4шт.

28

19-700

WASHER,5/16"

- flat, 5/16

2шт.

29

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW, 5/16 UNC x 1-1/4 G-5

1шт.

30

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW, 1/4 UNC x 3/4 G-5

1шт.

31

UNIT - sending, fuel gauge (See Fig. 2-15)

1шт.

32

22-789

SOCKET

CONNECTOR - remote outlet

1шт.

33

22-790

COVER

BOOT - connector wiring

1шт.

34

19-106

WASHER,5/16", SAE

- flat, 5/16

2шт.

35

19-605

LOCK WASHER,Ext Tooth, 5/16"

WASHER - lock, 5/16

1шт.

36

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CAPSCREW, 5/16 UNC x 1 G-5

2шт.

37

31-2242

GROMMET

- rear lights

2шт.

38

70-4600T1

GUARD

- wire

2шт.

39

31-1427

MOUNTING CLIP

CLAMP - harness

1шт.
