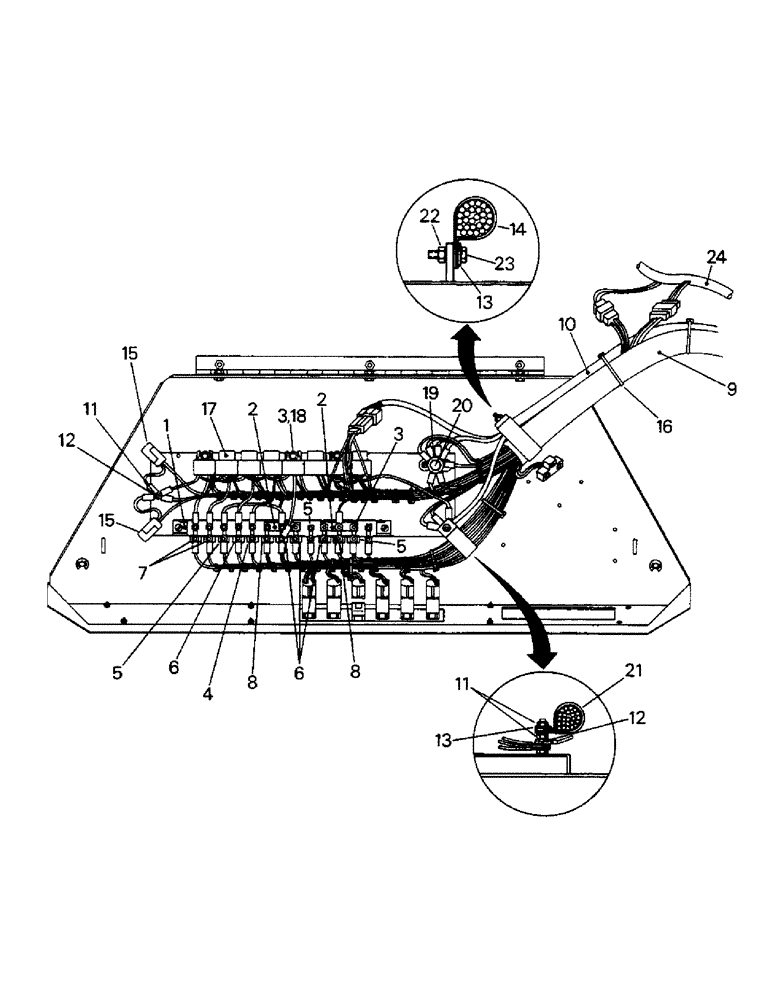

Запчасти Case IH 9110 (02-13) - CAB OVERHEAD WIRING (06) - ELECTRICAL

20-2245T91

BREAKER

CIRCUIT BREAKER ASSEMBLY, Includes: Ref. 1 - 8

1шт.

1

22-674

BRACKET

- circuit breaker

1шт.

2

22-676

BREAKER

CONNECTOR - circuit breaker

2шт.

3

19-481

SERRATED NUT

- keps, no. 10 UNF

26шт.

4

22-809

BREAKER

CIRCUIT BREAKER - 5 amp.

1шт.

5

22-670

BREAKER

CIRCUIT BREAKER - 10 amp.

4шт.

6

22-671

BREAKER

CIRCUIT BREAKER - 15 amp.

4шт.

7

22-673

BREAKER

CIRCUIT BREAKER - 30 amp.

2шт.

8

22-672

BREAKER

CIRCUIT BREAKER - 20 amp.

2шт.

9

20-2249T1

HARNESS

- main cab (With ROPS post gauges)

1шт.

20-2260T3

HARNESS

- main cab (Without ROPS post gauges)

1шт.

10

20-1974T1

HARNESS

- overhead power

1шт.

11

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

3шт.

12

19-115

LOCK WASHER,1/4"

1/4"

2шт.

13

19-223

WASHER,1/4"

- flat, 1/4

2шт.

14

31-1348

CLAMP

- harness

1шт.

15

22-738

DIODE

2шт.

16

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

17

1-7877

RELAY

- electrical (Quantity 7 without ROPS post gauges)

8шт.

18

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

3шт.

19

19-5577

LOCK WASHER

- lock, 3/8 brass

1шт.

20

115772

NUT

3/8 UNC brass

1шт.

21

31-1776

MOUNTING CLIP

CLAMP - harness

1шт.

22

280129

NUT,1/4"-20

NUT - lock, 1/4 UNC G-A

1шт.

23

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 UNC x 1 G-5

1шт.

24

20-1970T1

HARNESS

- overhead

1шт.
