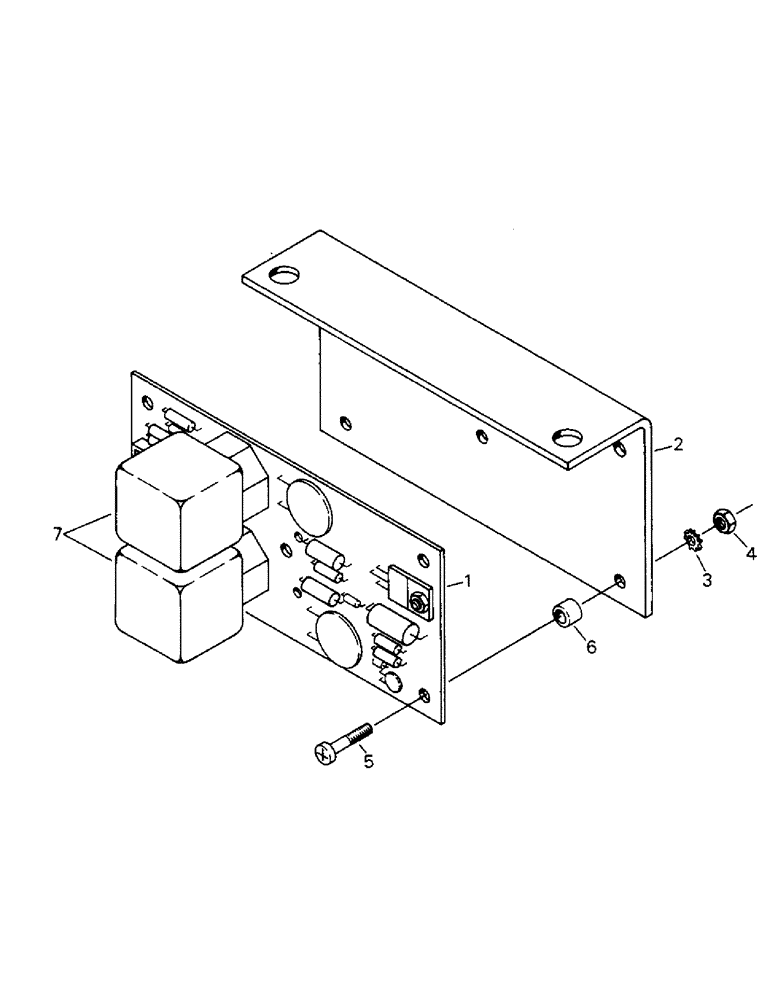

Запчасти Case IH 9110 (02-11) - TIME BASE FLASHER ASSEMBLY (06) - ELECTRICAL

20-1954T92

FLASHER UNIT

TIME BASE FLASHER ASSEMBLY, Includes: Ref. 1 - 7

1шт.

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T92

1шт.

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

1

20-2123T2

BOARD, PRINTED CIRCU

CIRCUIT BOARD - time base flasher (Includes ref. 7)

1шт.

1

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-2123T2

1шт.

1

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

2

25-1000155

SUPPORT

ANGLE

1шт.

3

19-601

LOCK WASHER,Ext, #6

WASHER - external lock, no. 6

5шт.

4

19-1013

NUT

no. 6 UNC G-A

5шт.

5

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

MACHINE SCREW, no. 6 UNC x 5/8

5шт.

6

25-1000174

SPACER

- circuit board

5шт.

7

1-7877

RELAY

- electrical

2шт.
