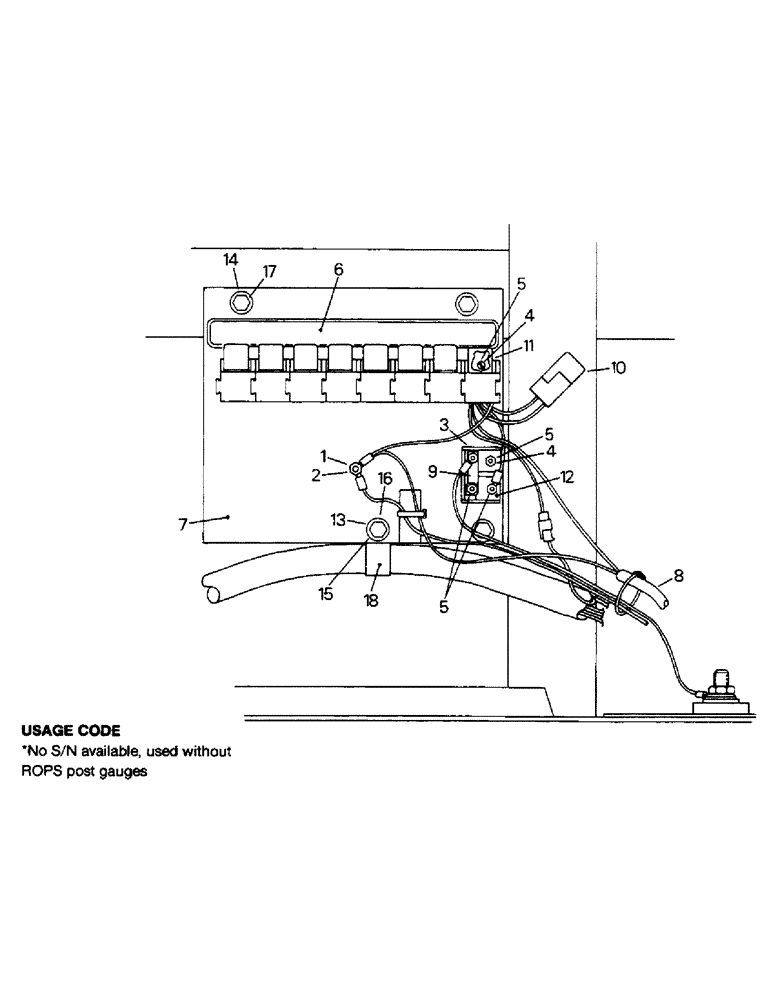

Запчасти Case IH 9110 (02-10) - INSTRUMENTATION GROUP, AIR SEAT (06) - ELECTRICAL

20-2327T92

PLATE ASSY.

INSTRUMENTATION GROUP (20-2327T91), Includes: Ref. 1 - 7

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

1

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

MACHINE SCREW, 1/4 UNC x 1-1/4

1шт.

2

19-76

NUT,1/4"-20, G5

1/4 UNC G-B

1шт.

3

20-1771T1

RECTIFIER

BRACKET - circuit breaker

1шт.

4

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

MACHINE SCREW, no. 10 UNF x 1/2

3шт.

5

19-481

SERRATED NUT

- keps, no. 10 UNF

5шт.

6

60-5053T2

DECAL

- relay (60-5053T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

No S/N available, used without ROPS post gauges.

1шт.

7

60-5052T2

LARGE PLATE

PLATE - relay mounting (60-5052T1)

1шт.

Old part can be used prior to serial number break only. When stock is depleted, use new on all.

1шт.

No S/N available, used without ROPS post gauges.

1шт.

8

20-2259T2

HARNESS

- air seat

1шт.

9

22-677

BAR

CONNECTOR - circuit breaker

1шт.

10

22-738

DIODE

- air seat

1шт.

11

1-7877

RELAY

- electrical

1шт.

12

22-671

BREAKER

CIRCUIT BREAKER - 15 amp.

1шт.

13

19-223

WASHER,1/4"

- flat, 1/4

3шт.

14

19-700

WASHER,5/16"

- flat, 5/16

2шт.

15

280129

NUT,1/4"-20

NUT - lock, 1/4 UNC G-B

2шт.

16

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

CAPSCREW, 1/4 UNC x 1 G-5

2шт.

17

19-508

LOCK NUT

- lock, 5/16 UNC G-B

2шт.

18

31-1348

CLAMP

- harness

1шт.
