Артикул
Название
Примечание
Количество
1
30-1386T1
WHEEL
14.9 x 38 (12 inch)
4шт.

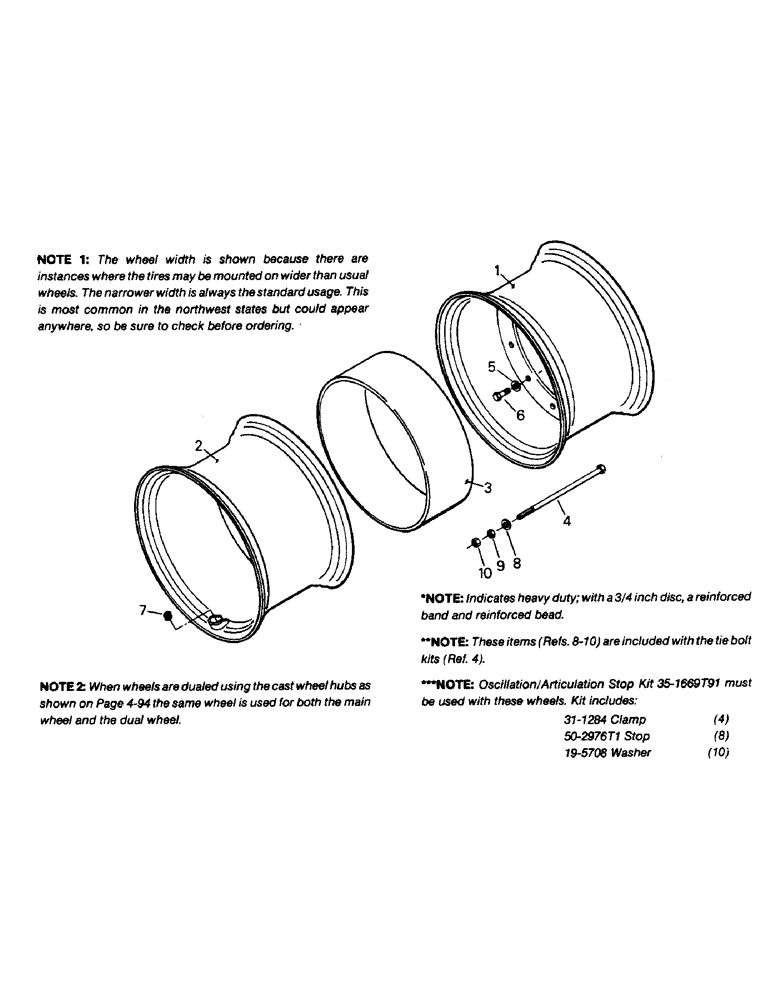

The wheel width is shown because there are instances where the tires may be mounted on wider than usual wheels. The narrower width is always the standard usage. This is most common in the northwest states but could appear anywhere, so be sure to check before ordering.
1шт.
30-1383T1
WHEEL
16.9 x 38 (15 inch)
1шт.
20-46
RIM
18.4 x 34 (16 inch)
1шт.
30-1110T1
RIM
18.4 x 38 (16 inch)
1шт.
30-1112T1
RIM
18.4 x 38 (18 inch)
1шт.
30-1358T1
RIM
18.4 x 42 (16 inch)
1шт.
Oscillation/Articulation Stop Kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10).
1шт.
30-1313T1
RIM
18.4 x 42 (18 inch)
1шт.
Oscillation/Articulation Stop Kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10).
1шт.
30-1123T1
RIM
20.8 x 34 (18 inch)
1шт.
30-1112T1
RIM
20.8 x 38 (18 inch)
1шт.
Oscillation/Articulation Stop Kit 35-1669T91 must be used with these wheels. Kit includes: 31-1284 Clamp (4), 50-2976T1 Stop (8), 19-5708 Washer (10).
1шт.
30-1124T1
RIM
23.1 x 34 (20 inch)
1шт.
30-1161T1
RIM
24.5 x 32 (24 inch)
1шт.
20-294
RIM
30.5 x 32 (27 inch)
1шт.
30-1013T1
RIM
30.5 x 32 (27 inch)
1шт.
Indicates heavy duty; with a 3/4 inch disc, a reinforced band and reinforced bead.
1шт.
30-1218T1
RIM
30.5 x 32 (30 inch)
1шт.
Indicates heavy duty; with a 3/4 inch disc, a reinforced band and reinforced bead.
1шт.
30-1159T1
RIM
30.5 x 32 (30 inch)
1шт.
2
30-1389T1
WHEEL
14.9 x 38 (12 inch), dual wheels
4шт.
When wheels are dualed using the cast wheel hubs as shown on Figure 4-94 the same wheel is used for both the main wheel and the dual wheel.
1шт.
30-1388T1
RIM
16.9 x 38 (15 inch), dual wheels
1шт.
20-47
RIM
18.4 x 34 (16 inch), dual wheels
1шт.
20-127
RIM
18.4 x 38 (16 inch), dual wheels
1шт.
30-1369T1
WHEEL
18.4 x 42 (16 inch), dual wheels
1шт.
30-1317T1
RIM
18.4 x 42 (18 inch), dual wheels
1шт.
20-191
RIM
20.8 x 38 (18 inch), dual wheels
1шт.
20-107
RIM
23.1 x 34 (20 inch), dual wheels
1шт.
20-56
RIM
24.5 x 32 (21 inch), dual wheels
1шт.
30-1152T1
RIM
24.5 x 32 (24 inch), dual wheels
1шт.
3
20-70T1
SPACER
BAND - 32 inch spacer (13 inch wide), dual wheels
4шт.
20-8391T1
BAND - 32 inch spacer (15 inch wide), dual wheels
1шт.
20-162T1
SPACER
BAND - 34 inch spacer (13 inch wide), dual wheels
1шт.
20-397T1
SPACER
BAND - 34 inch spacer (15 inch wide), dual wheels
1шт.
20-1007T1
SPACER
BAND - 38 inch spacer (13 inch wide), dual wheels
1шт.
20-1404T1
HOURMETER
BAND - 38 inch spacer (14.32 inch wide), dual wheels
1шт.
20-1001T1
SPACER
BAND - 38 inch spacer (15 inch wide), dual wheels
1шт.
30-1318T1
SPACER
BAND - 42 inch spacer (15 inch wide), dual wheels
1шт.
4
35-1322T91
KIT
- tie bolt (27 inch), dual wheels
24шт.
35-1323T91
BOLT
KIT - tie bolt (32 inch), dual wheels
1шт.
35-1324T91
KIT
- tie bolt (34 inch), dual wheels
1шт.
35-1325T91
BOLT
KIT - tie bolt (36 inch), dual wheels
1шт.
5
19-2975
WASHER
- flat, hardened, dual wheels
40шт.
6
223470
BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8
CAPSCREW, 7/8 UNC x 2-1/2 G-8, dual wheels
40шт.
7
22-521
PLUG
(Quantity 8 with duals), dual wheels
4шт.
8
20-62
WASHER
7/8 x 3 x 1/4 thk, dual wheels
40шт.
These Refs. (Refs. 8-10) are included with the tie bolt kits (Ref. 4).
1шт.
9
19-5753
JAM NUT
- jam, 7/8 UNC G-B, dual wheels
40шт.
These Refs. (Refs. 8-10) are included with the tie bolt kits (Ref. 4).
1шт.
10
19-457
NUT,7/8"-9, G5
7/8 UNC G-B, dual wheels
40шт.
These Refs. (Refs. 8-10) are included with the tie bolt kits (Ref. 4).
1шт.
Выбрано товаров: 55
