(04-88) - FRONT AXLE MOUNTING, NON-STEERABLE AXLE

Запчасти Case IH 9110 (04-88) - FRONT AXLE MOUNTING, NON-STEERABLE AXLE (04) - Drive Train

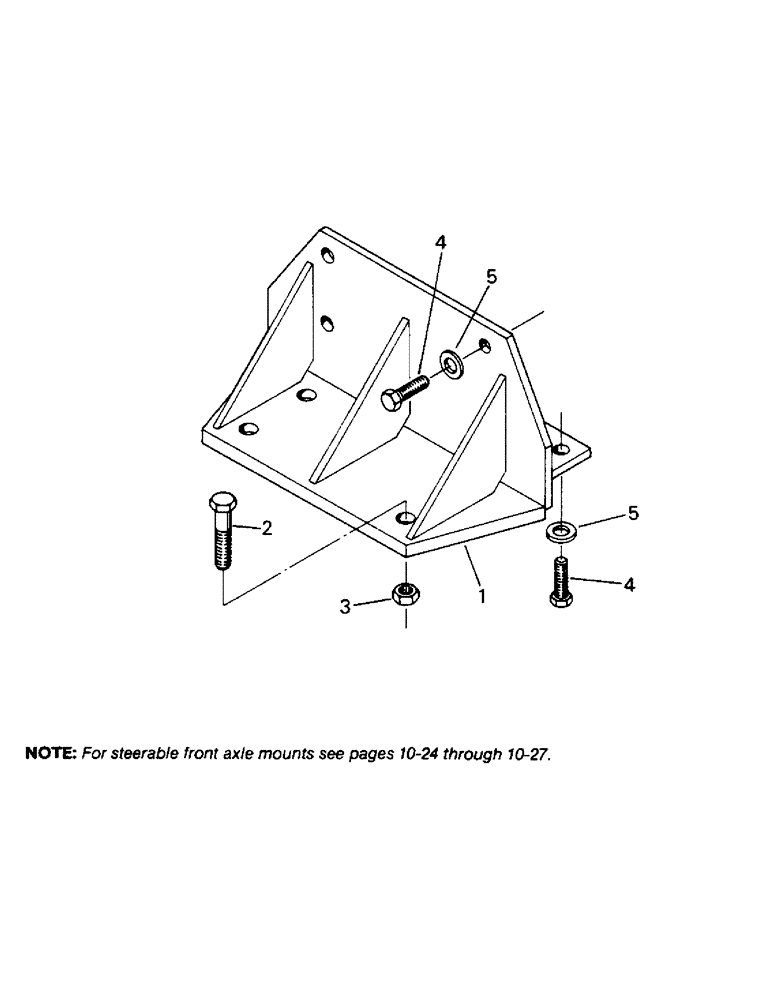

Схема запчастей Case IH 9110 - (04-88) - FRONT AXLE MOUNTING, NON-STEERABLE AXLE (04) - Drive Train
3
1
5
2
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

90-6041T1

AXLE

MOUNT - axle

2шт.

2

223489

BOLT,Hex, 1" - 8 x 3 1/2", Gr 8

CAPSCREW, 1 UNC x 3-1/2 G-8

8шт.

3

19-859

LOCK NUT

- lock, 1 UNC G-B

8шт.

4

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

CAPSCREW, 3/4 UNC x 2 G-8

16шт.

5

19-5723

WASHER

- hardened, 3/4 x 1-1/2 x 5/32 thk

16шт.
