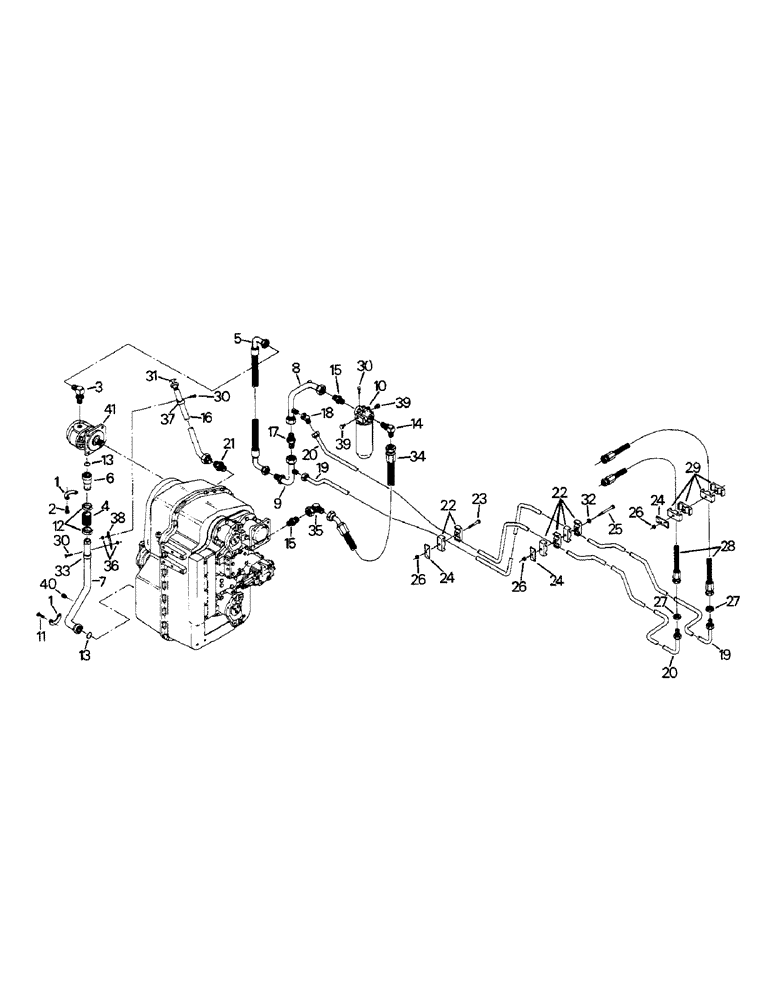

Запчасти Case IH 9110 (04-82) - TRANSMISSION LUBE SYSTEM, WITHOUT PTO (04) - Drive Train

1

31-1910

COUPLING FLANGE

FLANGE - hydraulic split, 1-1/4

4шт.

2

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 UNC x 1-1/4 G-5

4шт.

3

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

(16), 1-5/16-12 o-ring boss x 1-5/16-12 JIC 37 degree male

1шт.

4

1-4571

HOSE

4.00 inch

1шт.

5

31-2673

HOSE ASSY.

HOSE, 32.00 inch

1шт.

6

31-2640

ADAPTER

1шт.

7

90-6609T2

TUBE,1.5" OD

- suction

1шт.

8

90-6591T1

TUBE,1.25" OD

- filter

1шт.

9

50-2900T1

TUBE

1шт.

10

90-6524T91

FILTER ASSY

FILTER ASSEMBLY

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT - filter (90-6602T1)

1шт.

Duplicate or identical parts - renumber all stock as indicated.

1шт.

11

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW, 3/8 UNC x 1-1/4 G-5

4шт.

12

31-1283

MOUNTING CLIP

CLAMP - hose, Serial Range: 1-1/4-2-5/8

2шт.

13

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- split flange

2шт.

14

31-2250

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

(16), 1-5/16-12 o-ring boss x 1-5/8-12 JIC 37 degree male

1шт.

15

1-4144

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1 5/16"-12, O-Ring

ADAPTER (16), 1-5/16-12 o-ring boss x 1-5/8-12 JIC 37 degree male

2шт.

16

90-6545T1

TUBE,1.25" OD

- dipstick

1шт.

17

90-6578T1

VALVE POPPET

VALVE - check

1шт.

18

31-1545

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1-1/16 -12 JIC 37 degree female x 1-1/16-12 JIC 37 degree male

1шт.

19

50-2916T1

TUBE

- oil cooler

1шт.

20

50-2915T1

TUBE

- oil cooler

1шт.

21

31-401

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER (20), 1-5/8-12 o-ring boxx x 1-5/8-12 JIC 37 degree male

1шт.

22

50-2551T1

CLAMP

- half, hose, 3/4 inch

10шт.

23

19-724

CAPSCREW, 5/16 UNC x 2-1/2 G-5 Hex, 5/16"-18 x 2 1/2", G5

1шт.

24

50-2533T1

PLATE

- clamp cover

4шт.

25

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

CAPSCREW, 5/16 UNC x 4 G-5

2шт.

26

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16 UNC G-A

4шт.

27

31-2375

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - fitting

2шт.

28

31-2547

HOSE ASSY.

HOSE, 58.00 inches

2шт.

29

50-2534T1

CLAMP

- half, hose, 1.00 inch

4шт.

30

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

6шт.

31

90-6546T1

DIPSTICK

- transmission

1шт.

32

19-700

WASHER,5/16"

- flat, 3/8

2шт.

33

31-1328

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

CLAMP - tube

1шт.

34

31-2734

HOSE

46.50 inch

1шт.

35

31-2708

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

ELBOW, 1-5/8-12 JIC 37 degree female x 1-5/8-12 JIC 37 degree male (31-2718)

1шт.

Old part must not be used in this area only. Is OK elsewhere when shown.

1шт.

36

19-78

SPECIAL NUT,3/8"-16, G5

3/8 UNC G-B

2шт.

37

31-1349

MOUNTING CLIP

CLAMP - tube

1шт.

38

90-6588T1

SUPPORT

STRAP - clamp support

1шт.

39

31-1664

PLUG

- with o-ring (5) 1/2-20 o-ring boss

2шт.

40

9403369

CAP,37 Degree, 7/16"-20

NUT - cap, 7/16-20 JIC 37 degree

1шт.

41

PUMP ASSEMBLY - transmission lube (See Fig. 4-80)

1шт.
