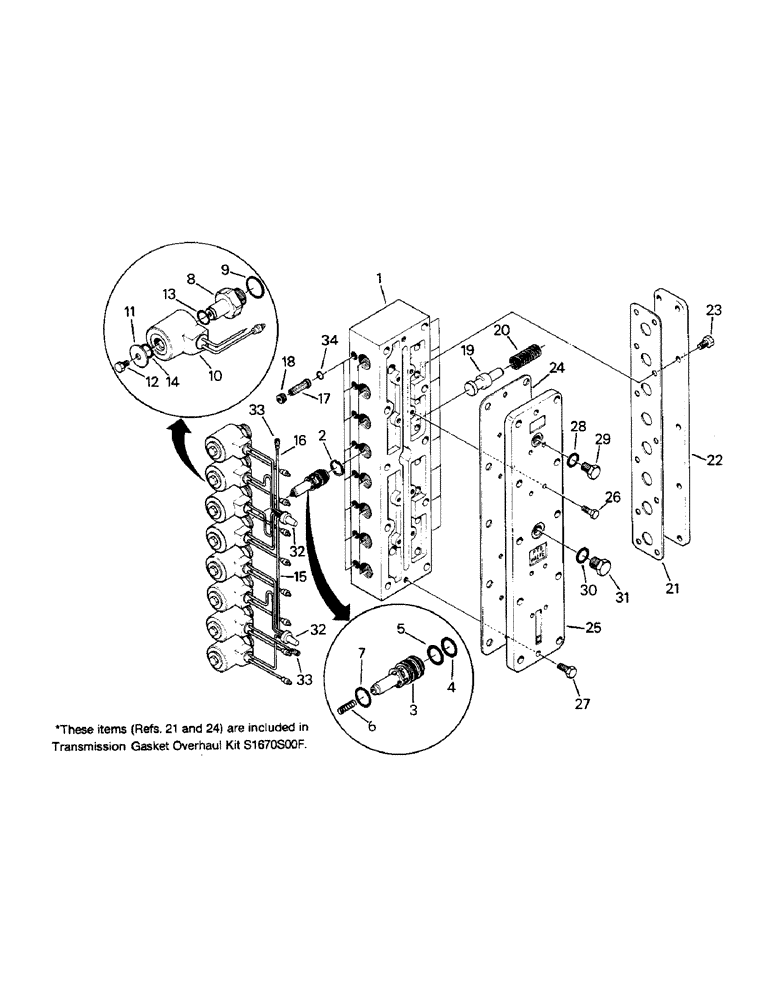

Запчасти Case IH 9110 (04-81) - RANGE SELECTOR VALVE ASSEMBLY (04) - Drive Train
№
Артикул
Название
Примечание
Количество
S9000S01F
CHECK VALVE
VALVE ASSEMBLY - range selector, Includes: Ref. 1 - 34
1шт.
1
S9050S00F
VALVE BODY
BODY - valve
1шт.
2
S9090S00F
RING, SNAP
RING - snap
8шт.
S9300S01F
SOLENOID
ASSEMBLY, Includes: Ref 3 - 14
8шт.
371737A1R
REMAN-SOLENOID
Reman for New PN S9300S01F
8шт.
371737A1C
CORE-SOLENOID
Return Number
8шт.
3
S9180S01F
VALVE, CHECK
VALVE ASSEMBLY - pilot
8шт.
4
S9310S00F
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
8шт.
5
S9320S00F
O-RING
8шт.
6
S9330S01F
SPRING
8шт.
7
S9380S00F
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
8шт.
8
S9340S00F
PLUG
- solenoid
8шт.
9
S9350S00F
O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro
8шт.
10
S9070S00F
SOLENOID
AND WIRE ASSEMBLY
8шт.
10
371737A1R
REMAN-SOLENOID
Reman for New PN S9070S00F
8шт.
10
371737A1C
CORE-SOLENOID
Return Number
8шт.
11
S9360S00F
WASHER
8шт.
12
S9370S00F
BOLT
8шт.
13
S9390S00F
O-RING
8шт.
14
S9400S00F
O-RING
8шт.
15
S9130S00F
ELECTRICAL WIRE
WIRE
1шт.
16
S9120S00F
ELECTRICAL WIRE
WIRE - with terminal
1шт.
17
S9060S00F
SCREEN
- filter
8шт.
18
S9080S00F
PLUG
8шт.
19
S9040S00F
VALVE
- selector
8шт.
20
S9010S00F
SPRING
- selector valve
8шт.
21
S9030S00F
GASKET
- side plate
1шт.
These Refs. (Refs. 21 and 24) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.
1шт.
22
S9020S00F
PLATE
- valve side
1шт.
23
SM8120820
BOLT
CAPSCREW, M8 x 1.25 x 20 MM G-8.8
11шт.
24
S91100S00F
GASKET - valve cover
1шт.
25
S9100S00F
COVER
- valve
1шт.
26
SM8120620
CAPSCREW
. M6 x 1.00 x 20 MM G-8.8
8шт.
27
SM8120825
BOLT
CAPSCREW, M8 x 1.25 x 25 MM G-8.8
2шт.
28
S1040S00F
O-RING
- plug
1шт.
29
S1030S00F
PLUG
(Includes ref. 28)
1шт.
30
S1320S00F
O-RING
- plug
1шт.
31
S1390S00F
PLUG
(Includes ref. 30)
1шт.
32
S9140S00F
TERMINAL CONNECTOR
TERMINAL
2шт.
33
S9160S00F
TERMINAL CONNECTOR
TERMINAL
2шт.
34
S9170S00F
O-RING
- filter
8шт.
Выбрано товаров: 41
