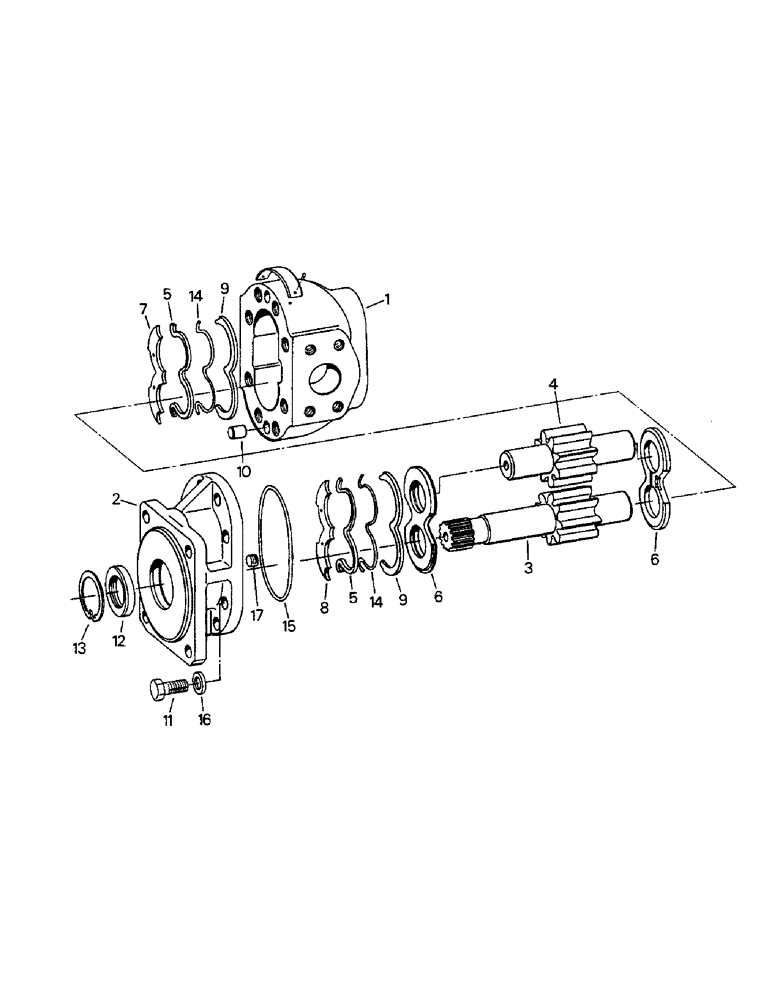

Запчасти Case IH 9110 (04-80) - TRANSMISSION LUBE PUMP ASSEMBLY (04) - Drive Train

S8000S00G

PUMP

ASSEMBLY - transmission, Includes: Ref. 1 - 17

1шт.

S8210S00G

PACKAGE, REPAIR

REPAIR KIT, Includes: ref. nos. 5, 10, 12, 13, 14, 15

1шт.

1

S8010S00G

BODY

- pump

1шт.

2

S8020S00G

COVER

- pump drive

1шт.

S8200S00G

GEAR-SET

GEAR SET - drive and idler

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

5

S8050S00G

PLATE

RING - backup

2шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

6

S8060S00G

PLATE

- pressure

2шт.

7

S8070S00G

PLATE

- isolation

1шт.

8

S8080S00G

PLATE

- isolation

1шт.

9

S8090S00G

RING

- retainer

2шт.

10

S8100S00G

DOWEL

PIN - dowel

2шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

11

S8110S00G

CAPSCREW

8шт.

12

S8120S00G

OIL SEAL

SEAL - shaft

1шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

13

S8130S00G

RING, SNAP

RING - snap

1шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

14

S8140S00G

O-RING

2шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

15

S8150S00G

O-RING

1шт.

Part of Package Repair Kit, P/N S8210S00G

1шт.

16

S8160S00G

WASHER

8шт.

17

S8170S00G

PLUG

1шт.
