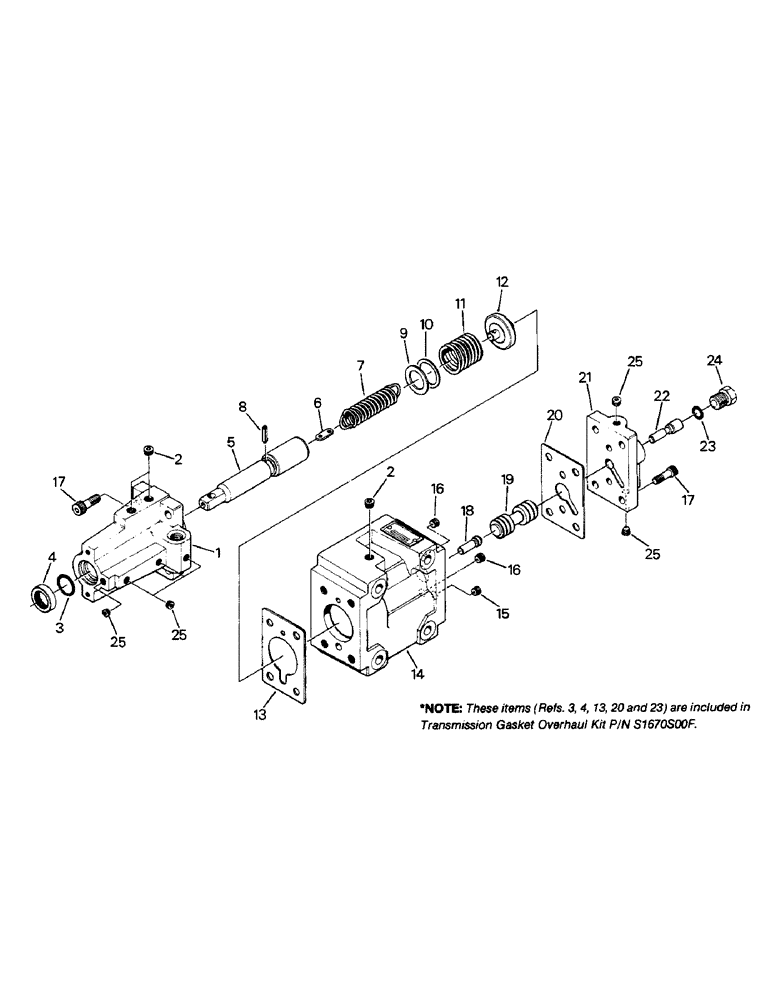

Запчасти Case IH 9110 (04-78) - TRANSMISSION CLUTCH CONTROL VALVE ASSEMBLY (04) - Drive Train

S6000S00F

VALVE

ASSEMBLY - clutch control, Includes: Ref. 1 - 25

1шт.

1

S6090S00F

HOUSING

COVER - control stem

1шт.

2

STX99700F

PLUG

3шт.

3

S6120S00F

O-RING

- control stem

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S6110S00F

OIL SEAL

- control stem

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S6100S00F

HOUSING

STEM - control

1шт.

6

S6080S00F

LINK, CONNECTING

LINK - connecting

1шт.

7

S6210S00F

SPRING

- tension

1шт.

8

S6130S00F

PIN, ROLL

PIN - roll

1шт.

9

S6200S00F

SPACER

- (31 MM x 1.2 MM thk)

1шт.

10

S6140S00F

SHIM,1.0mm Thk

(30 mm) 1.0mm Thk

1шт.

11

S6510S00F

SPRING - compression

1шт.

12

S6060S00F

SPRING SEAT

SEAT - spring

1шт.

13

S6070S00F

GASKET

- control stem cover

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

14

S6050S00F

HOUSING

BODY - modulator

1шт.

15

S6240S00F

ORIFICE

plug

1шт.

16

S6230S00F

ORIFICE

plug

2шт.

17

S6260S00F

SCREW

CAPSCREW - socket head

8шт.

18

S6160S00F

PIN

1шт.

19

S6040S00F

SPOOL

- modulator

1шт.

20

S6030S00F

GASKET

- valve cover

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

21

S6020S00F

COVER

- valve

1шт.

22

S6010S00F

SPOOL

- reducing

1шт.

23

S6180S00F

O-RING

- plug

1шт.

These Refs. (Refs. 3, 4, 13, 20 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

24

S6170S00F

PLUG

1шт.

25

S6220S00F

PLUG

6шт.
