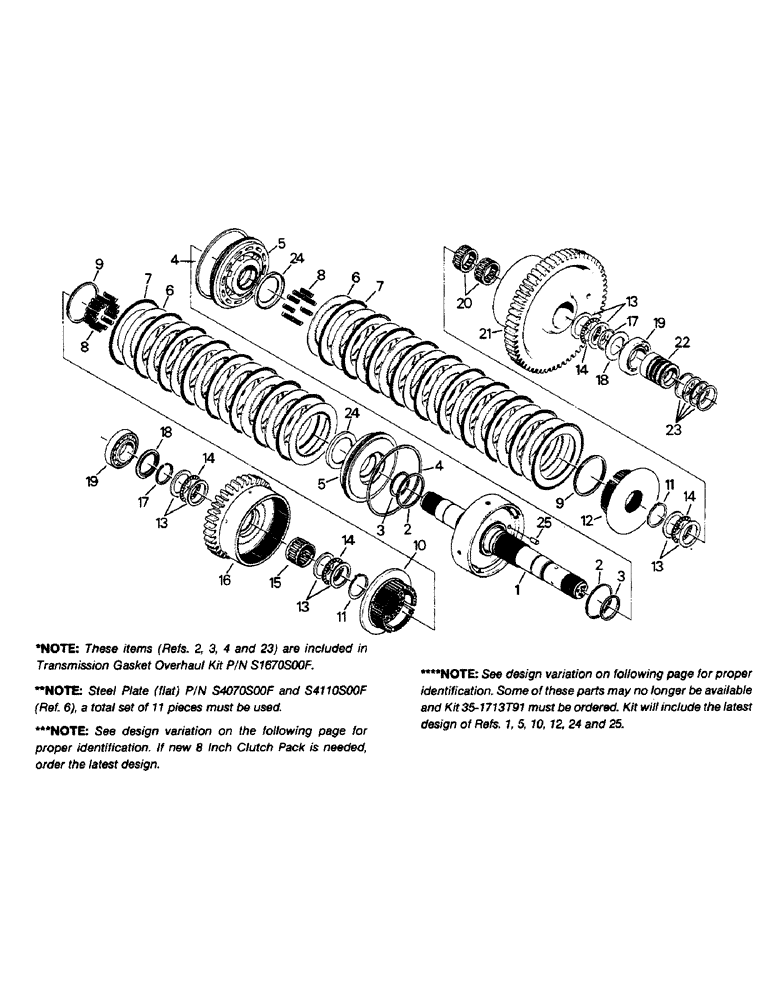

Запчасти Case IH 9110 (04-75) - 8 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train

S4000S00H

CLUTCH ASSEMBLY

CLUTCH PACK ASSEMBLY - 8 inch, Includes: Ref 1 - 23

1шт.

See design variation on the following figure for proper identification. If new 8 inch Clutch Pack is needed, order the latest design.

1шт.

S4000S02H

CLUTCH ASSEMBLY

CLUTCH PACK ASSEMBLY (S4000S00H), Includes: Ref. 1 - 23

1шт.

See design variation on the following figure for proper identification. If new 8 inch Clutch Pack is needed, order the latest design.

1шт.

1

S4900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

2

S4420S00F

RING

- piston

2шт.

These Refs. (Refs. 2, 3, 4 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

3

S4410S00F

RING

- piston

2шт.

These Refs. (Refs. 2, 3, 4 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

4

S4430S00F

RING

- sealing

2шт.

These Refs. (Refs. 2, 3, 4 and 23) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

5

S4180S00F

PISTON

- clutch

2шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

S4180S02F

PISTON

- clutch

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

6

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel (Flat 2.4 MM)

1шт.

Steel Plate (flat) P/N S4070S00F and S4110S00F (Ref. 6), a total set of 11 pieces must be used.

1шт.

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel (Flat 2.1 MM)

1шт.

Steel Plate (flat) P/N S4070S00F and S4110S00F (Ref. 6), a total set of 11 pieces must be used.

1шт.

7

S4080S00F

LARGE PLATE

PLATE - faced

11шт.

8

S4440S00F

SPRING

- return

22шт.

9

S4390S00F

RING, SNAP

RING - retaining

2шт.

10

S4850S00H

HUB

- clutch

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

S4100S01H

HUB

- clutch

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

11

S2100S00F

RING, SNAP

RING - snap

2шт.

12

S4840S00H

HUB ASSY.

HUB - clutch

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

S4380S01H

HUB

- clutch

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

13

S2200S00F

BEARING WASHER

WASHER - bearing thrust

8шт.

14

S2230S00F

BEARING

- thrust

4шт.

15

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

16

S4210S00F

PINION

GEAR - output (38T)

1шт.

17

S2240S00F

RING, SNAP

RING - retaining

2шт.

18

S4040S00F

SPACER

- bearing

2шт.

19

1-1584

BEARING CUP,4.4375" OD x 1.1875"

CUP - bearing

2шт.

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

CONE - bearing

2шт.

20

S2030S00F

BEARING, ROLLER

BEARING - needle

2шт.

21

S4170S00F

PINION

GEAR - output (59T)

1шт.

22

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

23

S4150S00F

RING

- sealing

4шт.

24

S4530S01F

LARGE PLATE

PLATE - compression (Latest design only)

2шт.

25

S4680S02F

SPECIAL NUT

PIN - guide, 11 MM dia.

1шт.

See design variation on the following figure for proper identification. Some of these parts may no longer be available and Kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.
