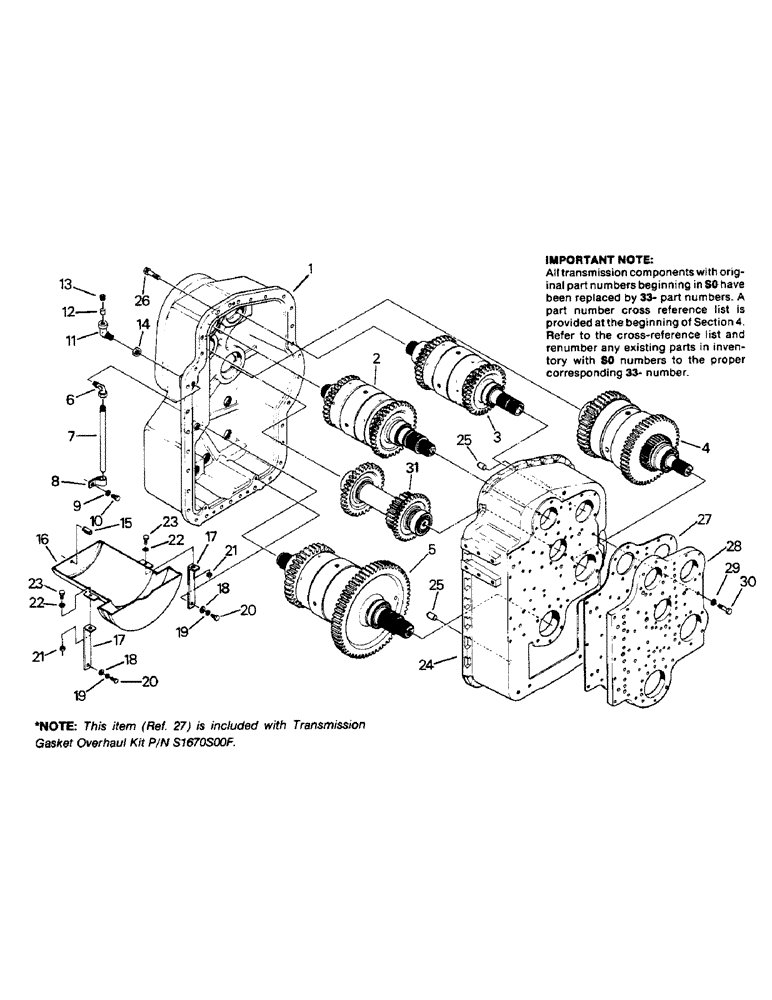

Запчасти Case IH 9110 (04-71) - 33-1476T1 TRANSMISSION ASSEMBLY (04) - Drive Train

1

33-1476T1

HOUSING

- rear

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

2

CLUTCH PACK ASSEMBLY - 7 inch input (See Fig. 4-73)

1шт.

3

CLUTCH PACK ASSEMBLY - 7 inch (See Fig. 4-74)

1шт.

4

CLUTCH PACK ASSEMBLY - 9 inch (See Fig. 4-77)

1шт.

5

CLUTCH PACK ASSEMBLY - 8 inch (See Fig. 4-75)

1шт.

6

33-1472T1

ELBOW

- breather tube

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

7

33-1471T1

TUBE

- breather

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

8

33-1473T1

MOUNTING CLIP

CLAMP - breather tube

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

9

SM8915142

WASHER

- lock, M12

1шт.

10

SM8124225

BOLT

CAPSCREW, M12 x 1.25 x 25 MM G-8.8

1шт.

11

33-1455T1

VENTILATION PIPE

ELBOW - breather filter

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

12

33-1454T1

BREATHER

FILTER - breather

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

13

SAS99900F

PLUG

- filter element

1шт.

14

SM8911246

NUT

M16 x 1.5

1шт.

15

33-1423T1

PIN, ROLL

PIN - roll

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

16

33-1425T1

PAN, ENGINE OIL

BAFFLE - oil

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

17

33-1424T1

STRAP

- oil baffle

2шт.

18

SM8915442

WASHER

- flat, M12

2шт.

19

SM8915142

WASHER

- lock, M12

2шт.

20

SM8124225

BOLT

CAPSCREW, M12 x 1.25 x 25 MM G-8.8

2шт.

21

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

22

SM8915440

WASHER

- flat, M10

2шт.

23

SM8124020

BOLT

CAPSCREW, M10 x 1.25 x 20 MM G-8.8

2шт.

24

S1400S00F

HOUSING

- front

1шт.

25

33-1467T1

DOWEL

PIN - dowel

2шт.

26

SM8121240

BOLT

CAPSCREW, M12 x 1.75 x 40 MM G-8.8

30шт.

27

S1590S00F

GASKET

- oil supply plate

1шт.

This Ref. (Ref. 27) is included with Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

28

S1580S00F

LARGE PLATE

PLATE - oil supply

1шт.

29

SM8915140

PLATE, LOCKING

WASHER - lock, M10

7шт.

30

SM8124045

BOLT

CAPSCREW, M10 x 1.25 x 45 MM G-8.8

7шт.

31

SHAFT - compound (See Fig. 4-72)

1шт.
