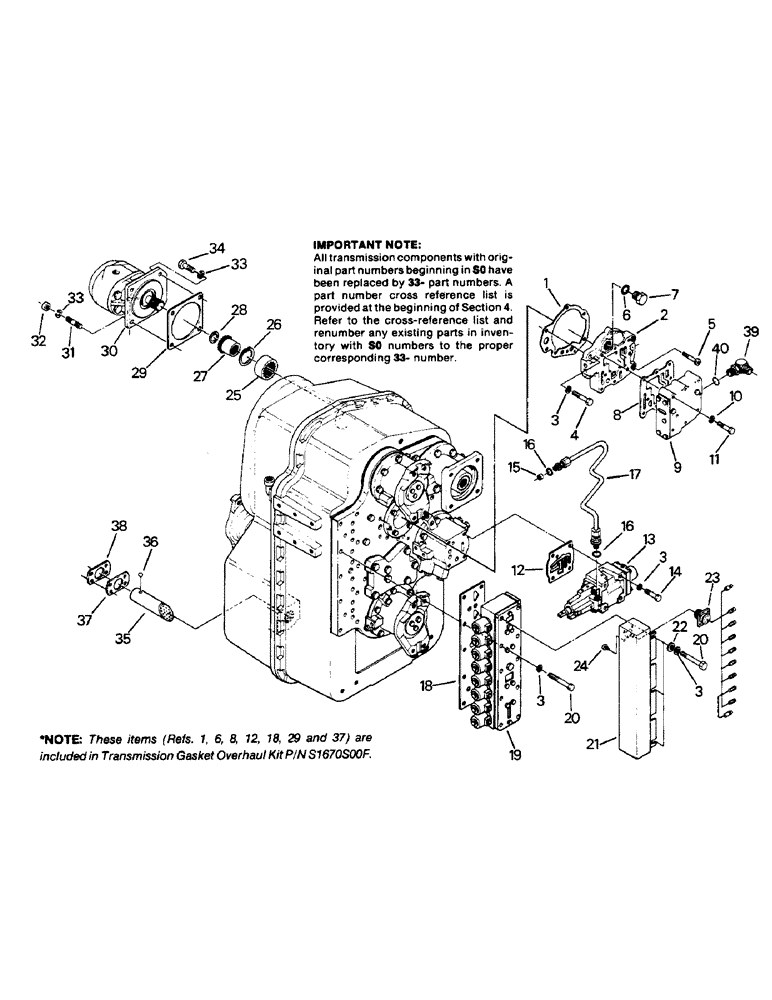

Запчасти Case IH 9110 (04-67) - S1160S00F TRANSMISSION ASSEMBLY (04) - Drive Train

1

S1160S00F

GASKET

- ditch plate

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

2

S1170S00F

LARGE PLATE

PLATE - ditch

1шт.

3

SM8915140

PLATE, LOCKING

WASHER - lock, M10

3шт.

4

SM8124070

BOLT

CAPSCREW, M10 x 1.25 x 70 MM G-8.8

3шт.

5

S1050S00F

SCREW

CAPSCREW - socket head

3шт.

6

S1200S00F

O-RING

- plug

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

7

S1210S00F

PLUG

(Includes ref. 6)

1шт.

8

S1150S00F

GASKET

- regulator valve

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

9

VALVE ASSEMBLY - regulator (See Fig. 4-79)

1шт.

10

SM8915138

WASHER

- lock, M8

8шт.

11

SM8120865

BOLT

CAPSCREW, M8 x 1.25 x 65 MM G-8.8

8шт.

12

S1140S00F

GASKET

clutch control

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

13

CONTROL ASSEMBLY - clutch (See Fig. 4-78)

1шт.

14

SM8124085

BOLT

CAPSCREW, M10 x 1.25 x 85 MM G-8.8

4шт.

15

S1020S00F

FILTER

SCREEN - filter

1шт.

16

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

hydraulic tube 6-1, 90 Duro, .468" ID x .078" Thk

2шт.

17

S1650S00F

TUBE

- clutch

1шт.

18

84286922

GASKET,1.2mm Thk

range selector valve

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

19

VALVE ASSEMBLY - range selector (See Fig. 4-81)

1шт.

20

SM8124003

BOLT

CAPSCREW, M10 x 1.25 x 115 MM G-8.8

10шт.

21

S1230S00F

TERMINAL BOX

COVER - junction box

1шт.

22

SM8915440

WASHER

- flat, M10

10шт.

23

S1300S00F

CONTAINER

HARNESS - solenoid

1шт.

24

S1240S00F

TAPPING SCREW

4шт.

25

33-1452T1

COUPLING

- pump

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

26

33-1445T1

RING, SNAP

RING - snap

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

27

33-1453T1

ADAPTER

- pump

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

28

33-1447T1

RING, SNAP

RING - snap

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

29

50-1388T1

GASKET

- pump (33-1469T1)

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

All transmission components with original part numbers beginning in S0 have been replaced by 33- part numbers. A part number cross reference list is provided at the beginning of Section 4. Refer to the cross-reference list and renumber any existing parts in inventory with S0 numbers to the proper corresponding 33- number.

1шт.

Duplicate or identical parts - renumber all stock as indicated.

1шт.

30

PUMP ASSEMBLY - lube (See Fig. 4-80)

1шт.

31

SM8267430

STUD

M14 x 1.5 x 30 MM G-8.8

2шт.

32

SM8911244

NUT

M14 x 1.5

2шт.

33

SM8915144

PLATE, LOCKING

WASHER - lock, M14

2шт.

34

SM8124440

BOLT

CAPSCREW, M14 x 1.5 x 40 G-8.8

2шт.

35

S1520S00F

PIPE

TUBE - suction

1шт.

36

S14701960

BALL,3.968mm OD

- steel

1шт.

37

S1620S00F

GASKET

- suction tube

1шт.

These Refs. (Refs. 1, 6, 8, 12, 18, 29 and 37) are included in Transmission Gasket Overhaul Kit P/N S1670S00F.

1шт.

38

S1700S00F

LARGE PLATE

PLATE - suction tube retainer

1шт.

39

31-479

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

1-5/16-12 o-ring boss x 1-5/16-12 JIC 37 degree male

1шт.

40

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.
