Запчасти Case IH QUADTRAC 620 (21.113.AD[11]) - TRANSMISSION MOUNTING, PS6 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, ASN ZFF308001 (21) - TRANSMISSION

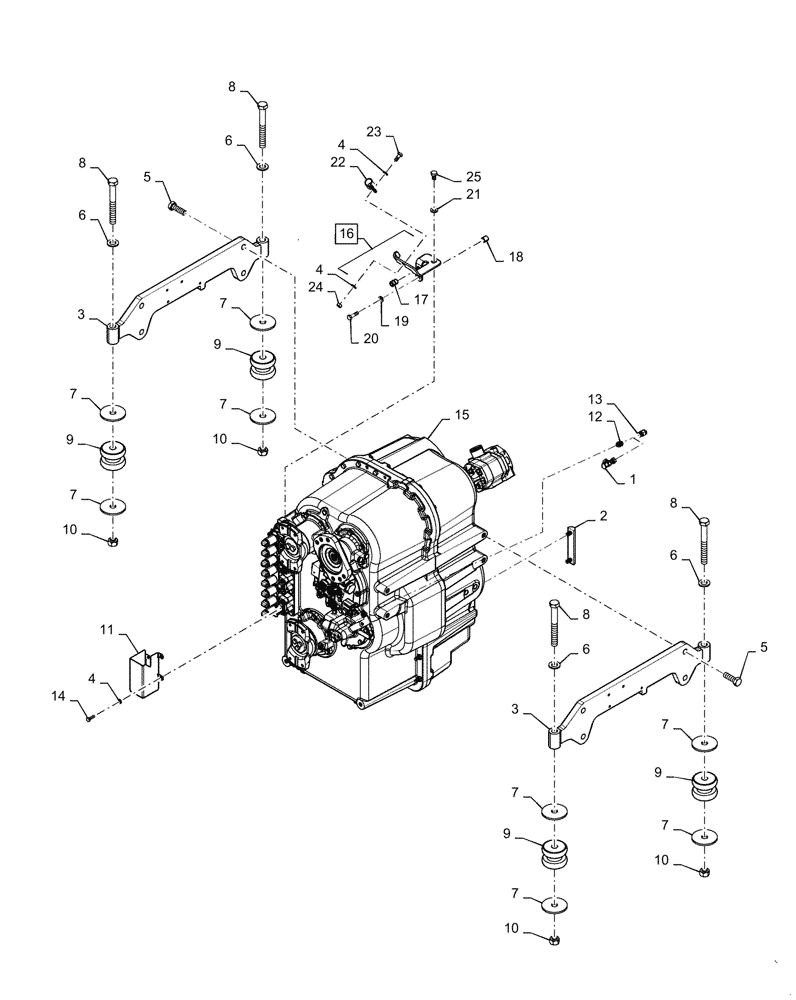

Схема запчастей Case IH QUADTRAC 620 - (21.113.AD[11]) - TRANSMISSION MOUNTING, PS6 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, ASN ZFF308001 (21) - TRANSMISSION
4
8
7
7
7
10
10
9
18
23
6
4
24
9
16
21
6
7
4
3
7
1
8
15
8
8
12
11
9
22
7
2
19
5
25
5
6
6
20
17
10
7
7
13
14
3
10
9

Артикул

Название

Примечание

Количество

1

190117A1

COUPLING

Diagnostic

1шт.

2

L116247

GAUGE

Liquid Level

1шт.

3

84204446

PLATE

Transmission Mounting

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

8шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

7

379611A1

WASHER

Transmission Mount

8шт.

8

828-22190

BOLT,Hex, M22 x 2.5 x 190mm, Cl 10.9

4шт.

9

340967A1

RUBBER MOUNTING

2-Piece

4шт.

10

829-1422

NUT,M22 x 2.5, Cl 10

4шт.

11

47498781

COVER

Transmission Range Valve

1шт.

12

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

13

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

15

47387049

TRANSMISSION

Complete Assembly, PS6, 9C

1шт.

16

48085091

Transmission Wiring, Incl 17

BRACKET

1шт.

17

379540A1

INSERT,M8

1шт.

18

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.

19

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

20

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 25
