Запчасти Case IH QUADTRAC 620 (21.113.AD[05]) - TRANSMISSION, FRONT YOKE, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

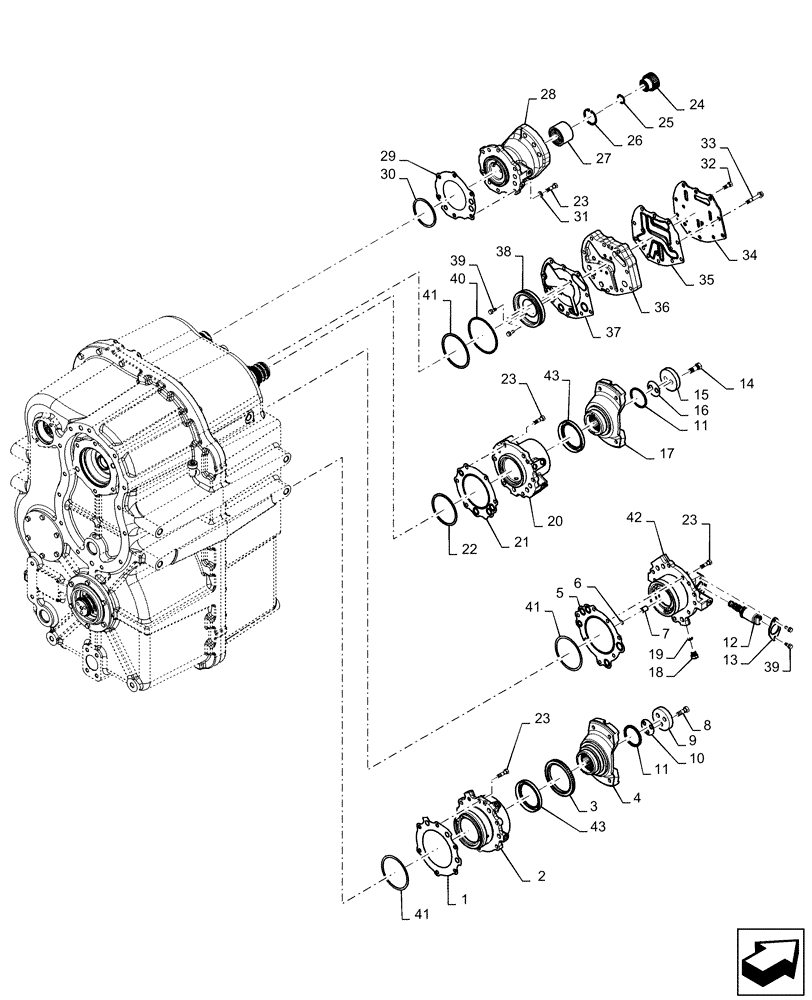

Схема запчастей Case IH QUADTRAC 620 - (21.113.AD[05]) - TRANSMISSION, FRONT YOKE, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
4
33
18
38
30
43
11
32
2
23
9
20
41
13
5
26
1
41
31
25
23
39
42
28
34
43
19
14
37
8
41
23
6
29
39
7
27
21
3
22
23
36
40
35
17
12
15
16
24
11
10

Артикул

Название

Примечание

Количество

1

362603A1

GASKET

Output Retainer

1шт.

2

84315335

RETAINER

5th Shaft Bearing

1шт.

3

362601A1

RING

Speed Pick-up

1шт.

4

84315318

YOKE

Output, 9C

1шт.

5

84315326

GASKET

Collector

1шт.

6

100-2156

SNAP RING,0.562", Int, #56

1шт.

7

87350436

CHECK VALVE,4.45mm

4.45mm

1шт.

8

514-853

BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.

9

427515A1

RETAINING PLATE

Washer

1шт.

10

427517A1

SHIM,0.1mm Thk

1шт.

10

427519A1

SHIM,0.3mm Thk

1шт.

11

428165A1

O-RING

Yoke

1шт.

12

84173878

SOLENOID

4th Shaft

1шт.

13

87351402

PLATE

Valve Retainer

1шт.

14

514-915

BOLT,Hex, M14 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

15

84315360

WASHER

Retainer

1шт.

16

427560A1

SHIM,0.1mm Thk

1шт.

16

427561A1

SHIM,0.3mm Thk

1шт.

16

427562A1

SHIM,0.7mm Thk

1шт.

17

84315359

YOKE

Input, 9C

1шт.

18

220064A1

PLUG,M14 x 1.5, ORB

14шт.

19

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

14шт.

20

84315362

RETAINER

1st Shaft Bearing

1шт.

21

84315332

GASKET

Input Retainer

1шт.

22

84315375

SHIM,0.2mm Thk

1шт.

22

84315377

SHIM,0.25mm Thk

1шт.

22

362576A1

SHIM,0.3mm Thk

1шт.

22

84315378

SHIM,0.35mm Thk

1шт.

23

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

25шт.

24

362566A1

ADAPTER

Pump

1шт.

25

800-2128

SNAP RING,M28, Int

1шт.

26

428681A1

RING, SNAP

Retainer

1шт.

27

362567A1

COUPLING

Pump

1шт.

28

84315338

RETAINER

2nd Shaft Bearing

1шт.

29

362569A1

GASKET

2nd Retainer

1шт.

30

47403798

SHIM,0.2mm Thk

1шт.

30

47403799

SHIM,0.25mm Thk

1шт.

30

359244A1

SHIM,0.3mm Thk

1шт.

30

47403801

SHIM,0.35mm Thk

1шт.

30

359251A1

SHIM,0.5mm Thk

1шт.

31

892-11010

LOCK WASHER,M10

6шт.

32

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

33

84315320

BOLT

Valve

4шт.

34

84315363

PLATE

Valve

1шт.

35

84315323

GASKET

Valve Plate

1шт.

36

84315365

PLATE

Valve

1шт.

37

84315331

GASKET

3rd Retainer

1шт.

38

84315337

RETAINER

3rd Shaft Bearing

1шт.

39

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

40

428149A1

O-RING

3rd Shaft

1шт.

41

47402749

SHIM,0.2mm Thk

1шт.

41

47402759

SHIM,0.25mm Thk

1шт.

41

427566A1

SHIM,0.3mm Thk

1шт.

41

47402839

SHIM,0.35mm Thk

1шт.

41

427567A1

SHIM,0.5mm Thk

1шт.

41

427568A1

SHIM,0.7mm Thk

1шт.

42

84315366

RETAINER

4th Shaft Bearing

1шт.

43

84315358

OIL SEAL

Shaft Bearing

2шт.

Выбрано товаров: 58
