Запчасти Case IH QUADTRAC 620 (21.105.BL[04]) - TRANSMISSION LUBRICATION LINES, REAR, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

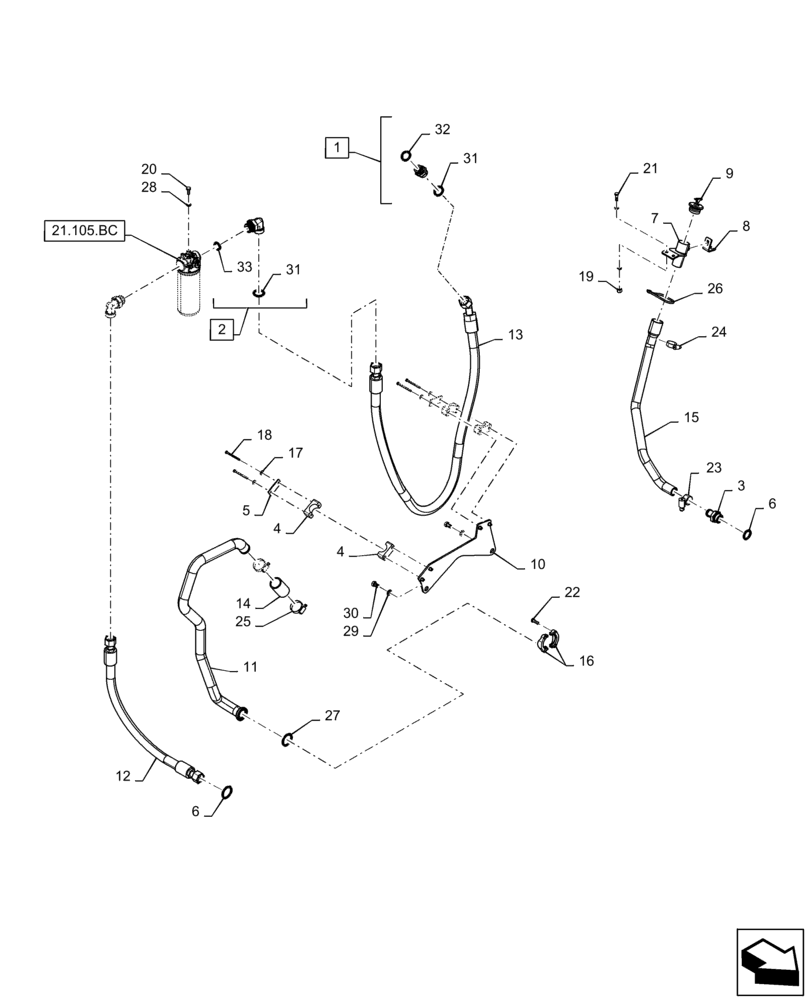

Схема запчастей Case IH QUADTRAC 620 - (21.105.BL[04]) - TRANSMISSION LUBRICATION LINES, REAR, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
28
14
19
6
16
6
21.105.bc
21
24
8
4
11
7
33
4
9
32
18
5
10
13
15
20
30
25
23
22
29
27
17
3
2
31
26
1
31
12

Артикул

Название

Примечание

Количество

1

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 31 - 32

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 31, 33

2шт.

3

87340823

HYD CONNECTOR

Fitting Transmission Fill, Incl 6

1шт.

4

429384A1

CLAMP,40mm ID x 30mm W x 71mm L

Body

4шт.

5

429414A1

COVER PLATE,70mm L x 30mm W x 3mm Thk

Backing

2шт.

6

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

7

87646809

TUBE,46.23 mm L

1шт.

8

87646822

BRACKET

Retainer Fill Cap Lock

1шт.

9

325737A1

CAP

Transmission Filler

1шт.

10

84422105

BRACKET

Transmission Hose Support

1шт.

11

84283538

HYD TUBE

Transmission Lube Suction

1шт.

12

84179184

HOSE ASSY.

Transmission Pump To Filter

1шт.

13

84422102

HOSE ASSY.,25.4mm ID x 1702mm L, SAE 100R1

Transmission Supply To Filter

1шт.

14

427140A1

HOSE,50.80 mm ID x 101.60 mm

1шт.

15

84319553

HOSE

Transmission Fill Formed

1шт.

16

A14141

FLANGE

Split Half Clamp

2шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

18

11030431

BOLT,Hex, M6 x 75mm, Cl 10.9

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

21

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

22

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

23

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

1шт.

24

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

1шт.

25

47757203

HOSE CLAMP,60.3mm - 68.3mm, Spring

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

1шт.

27

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

29

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

30

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.

31

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

32

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

33

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 33
