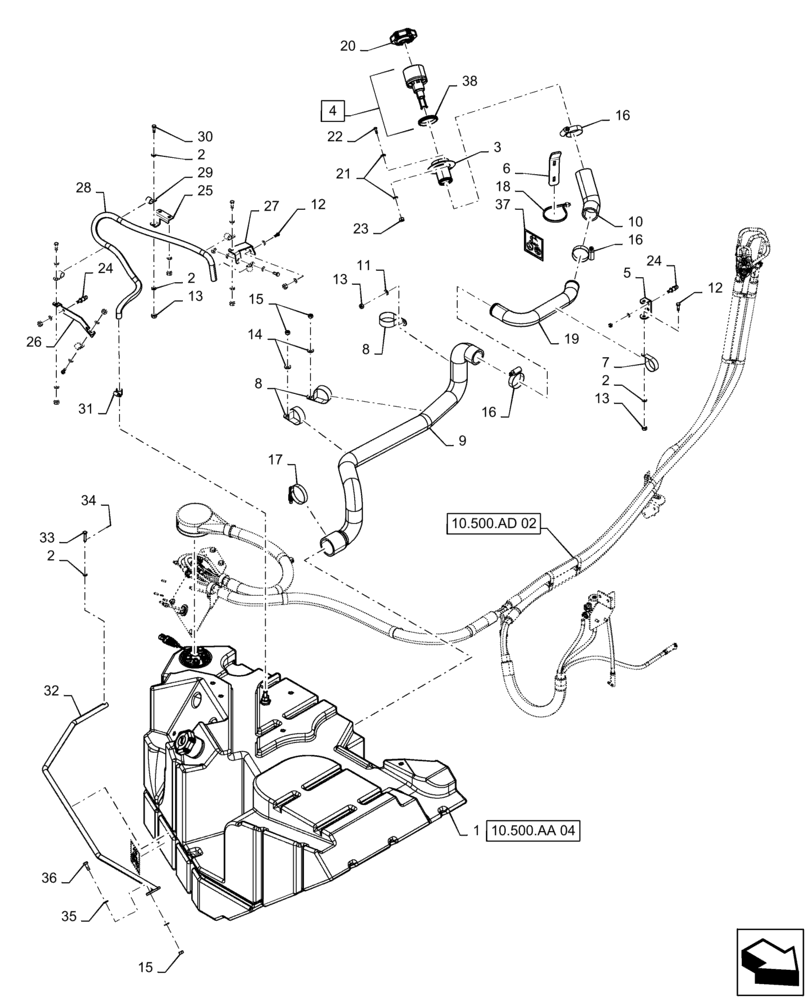

Запчасти Case IH QUADTRAC 620 (10.500.AA[03]) - DEF/ADBLUE TANK LINES, BTW ZEF303001 - ZFF304113 (10) - ENGINE

1

47711891

TANK

DEF Assembly

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

20шт.

3

84315307

FILLER

Neck Support

1шт.

4

87483158

NECK FILLER

DEF Tank, Incl 38

1шт.

5

84425052

BRACKET

DEF Fill Support

1шт.

6

84425077

BRACKET

DEF LH Fill Lock

1шт.

7

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

8

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

3шт.

9

84563334

HOSE

DEF FIll

1шт.

10

47507801

HOSE

DEF Tank Fill

1шт.

11

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

12

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

16

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

3шт.

17

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

19

84425053

TUBE

DEF Fill

1шт.

20

84206552

FILLER CAP,Male

DEF Tank

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

22

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

24

426285A1

STUD

Threaded, M8

4шт.

25

47533305

BRACKET

DEF Tank Breather

1шт.

26

47398275

BRACKET

DEF Tank Breather

1шт.

27

47533307

BRACKET

DEF Tank Breather

1шт.

28

47533302

HOSE

DEF Tank Vent

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.

30

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

31

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

32

47401040

SUPPORT

DEF Tank

1шт.

33

728-840

CLEVIS PIN,M8 x 40

1шт.

34

733-1616

COTTER PIN,M1.6 x 16

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

36

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

37

84284896

DECAL,DEF TANK identification label

DEF

2шт.

38

84186232

RING

Filler Neck, DEF Tank

1шт.
