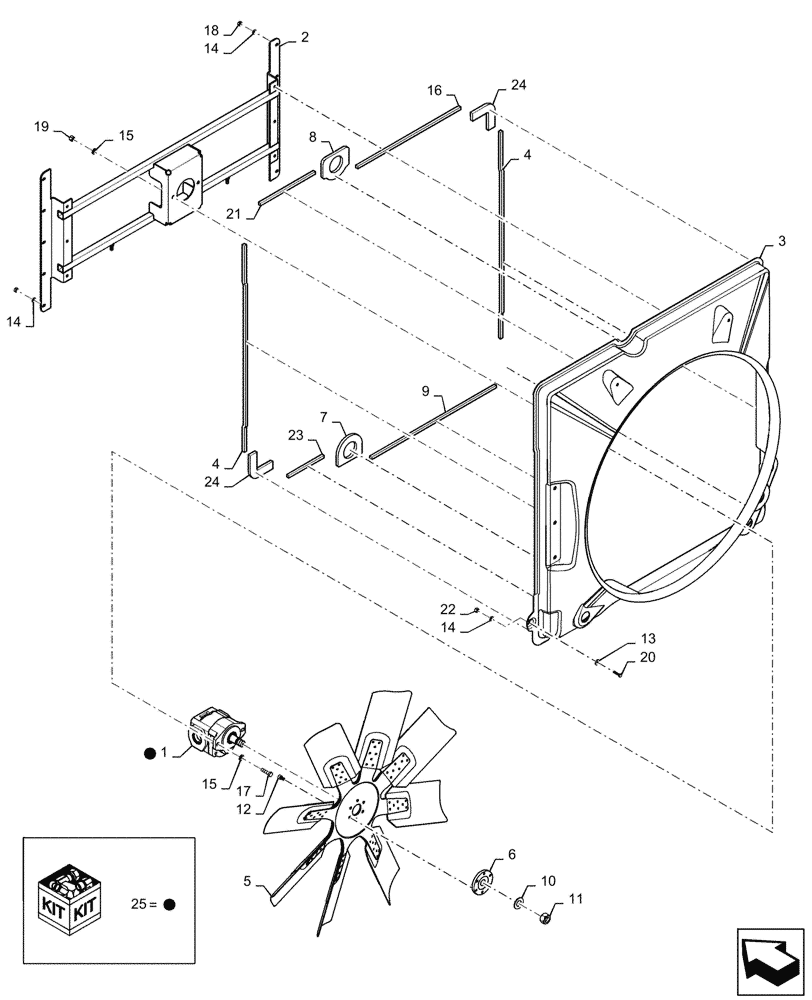

Запчасти Case IH QUADTRAC 620 (10.414.AC[02]) - FAN DRIVE, 540, 580, 620 (10) - ENGINE

1

84595236

HYDRAULIC MOTOR

Cooling Fan

1шт.

1

84595236R

REMAN-HYD MOTOR

Cooling Fan

1шт.

1

84595236C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

84163937

BRACKET

Cooling Fan

1шт.

3

47443988

SHROUD

Fan

1шт.

4

47521461

FOAM

Seal, Side

2шт.

5

84135823

FAN,8 Blades, 1066.8mm OD

42 inch

1шт.

6

47358305

HUB

Fan

1шт.

7

47469102

SEAL

Foam

1шт.

8

47469664

SEAL

Foam

1шт.

9

47521460

FOAM

Seal, Bottom

1шт.

10

495-11106

WASHER,1", SAE

1шт.

11

84139328

NUT,1"-14, Gr 8

1шт.

12

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

6шт.

13

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

14

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

16

47521459

FOAM

Seal, Top

1шт.

17

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

21

47521458

FOAM

Seal, Top

1шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

23

47521455

FOAM

Seal, Bottom

1шт.

24

47519296

FOAM

Seal, Corner

4шт.

25

47952654

SEAL KIT

Cooling Fan, Services 1

1шт.
