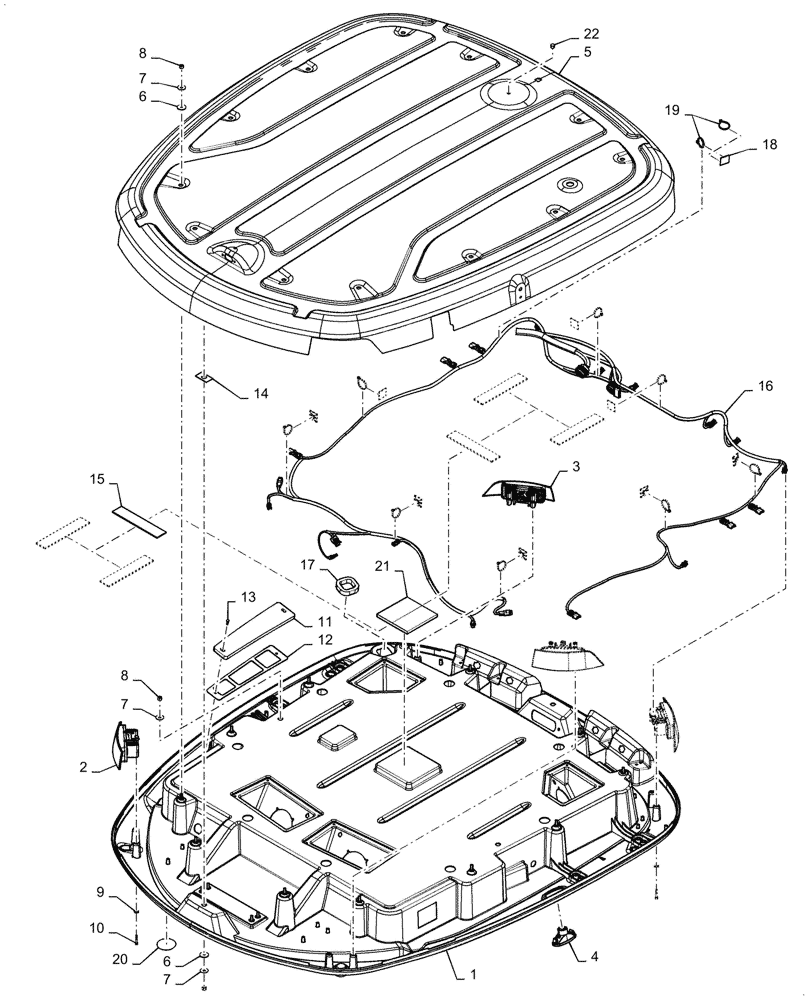

Запчасти Case IH QUADTRAC 620 (90.150.BG[03]) - CAB ROOF 20TH ANNIVERSARY EDITION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47972702

ROOF

Lower, Assy

1шт.

2

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

2шт.

3

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

2шт.

4

87301963

CEILING LAMP,12V

1шт.

5

48047313

Upper, Assy

ROOF

1шт.

6

221429A2

SPACER

Door Handle

14шт.

7

495-81140

WASHER,13/32" x 1 1/4" x .060"

16шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

16шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

10

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

8шт.

11

84211797

AIR FILTER

Cab, Roof

1шт.

12

84303099

COVER PLATE

HVAC

1шт.

13

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

14

84402690

FOAM INSULATION

Spacer

2шт.

15

403325A2

FOAM,30mm x 50mm x 250mm

6шт.

16

84316433

HARNESS

Cab Roof

1шт.

17

84211795

GASKET

HVAC Intake, Roof

1шт.

18

22-823

MOUNT

9шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

20

84353524

DECAL

No FOPS Plate

1шт.

21

84274568

PADDING

FOPS Plate

1шт.

22

353-402

PLUG,Dome, .375" hole, Nylon

1шт.
