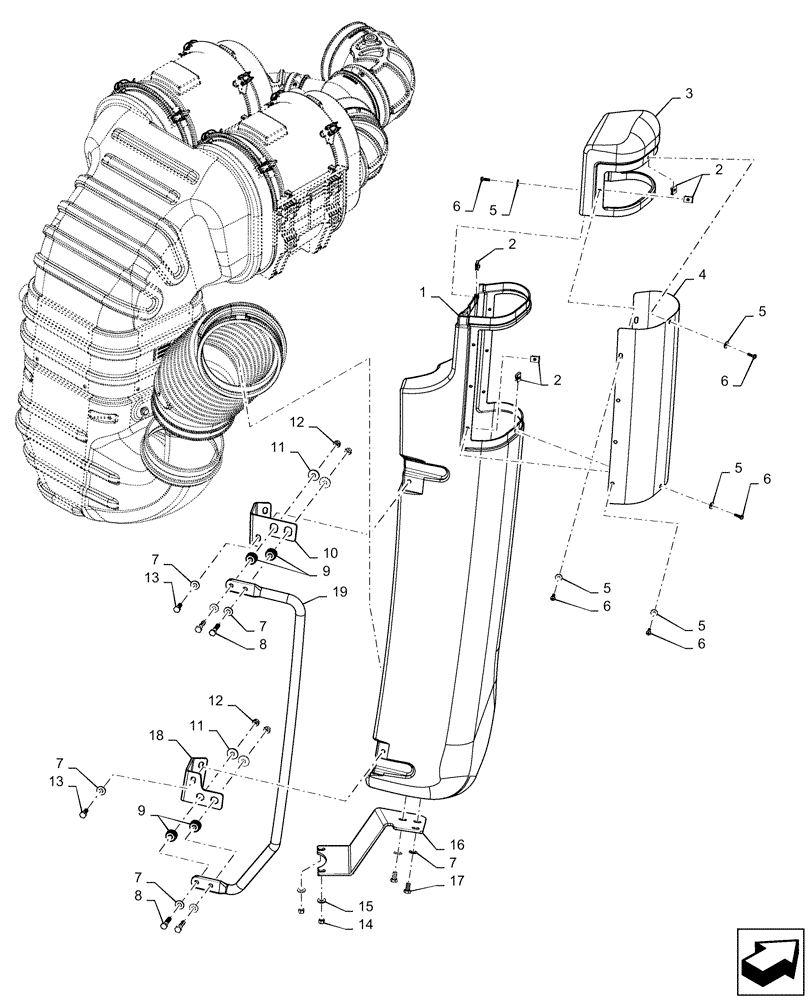

Запчасти Case IH QUADTRAC 620 (10.202.AD[03]) - AIR INTAKE, 470, 500, 540, 550, 580, 600, 620 (10) - ENGINE

1

84556144

AIR DUCT

Inlet Assy , Serial Range: ZEF300001-ZFF304942

1шт.

1

47745043

AIR DUCT

Inlet Assy , Start Serial: ZFF304943

1шт.

2

76047274

NUT,M6 x 1

Spring Fastner , Serial Range: ZEF300001-ZFF304942

12шт.

2

47780334

NUT,M6

, Start Serial: ZFF304943

12шт.

3

84556145

AIR DUCT

Inlet Extension , Serial Range: ZEF300001-ZFF304942

1шт.

3

47713291

AIR DUCT

Inlet Extension , Start Serial: ZFF304943

1шт.

4

47388179

SCREEN

Air Inlet, Assy , Serial Range: ZEF300001-ZFF304942

1шт.

4

47712866

SCREEN

Air Inlet, Start Serial: ZFF304943

1шт.

5

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

6

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

12шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

13шт.

8

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

9

434177A1

ISOLATOR

Air Inlet Assy, Mounting

4шт.

10

84354283

BRACKET

Air lnlet Mounting, Top

1шт.

11

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

12

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

16

84580303

BRACKET

Air Inlet Support

1шт.

17

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

18

84354282

BRACKET

Air Inlet Support, Bottom

1шт.

19

47543111

HANDLE

Grab, Cab Mounted, Outer

1шт.
