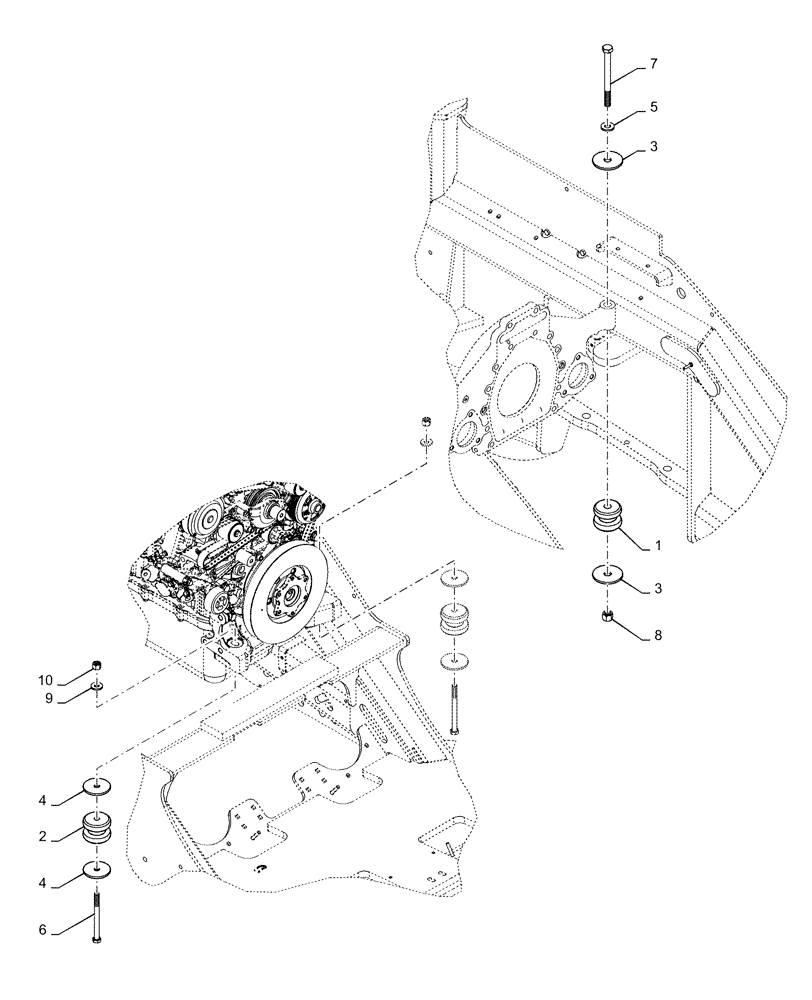

Запчасти Case IH QUADTRAC 620 (10.001.AK) - ENGINE MOUNT (10) - ENGINE

1

361187A1

ISOLATOR

Engine Mount, Rear

2шт.

2

84148959

ISOLATOR

Engine Mount, Front

2шт.

3

379611A1

WASHER

Engine Mount, Rear

4шт.

4

84162034

WASHER

Engine Mount, Front

4шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

6

827-16180

BOLT,Hex, M16 x 2 x 180mm, Cl 10.9

2шт.

7

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

10

832-10416

NUT,M16 x 2, Cl 8

2шт.
