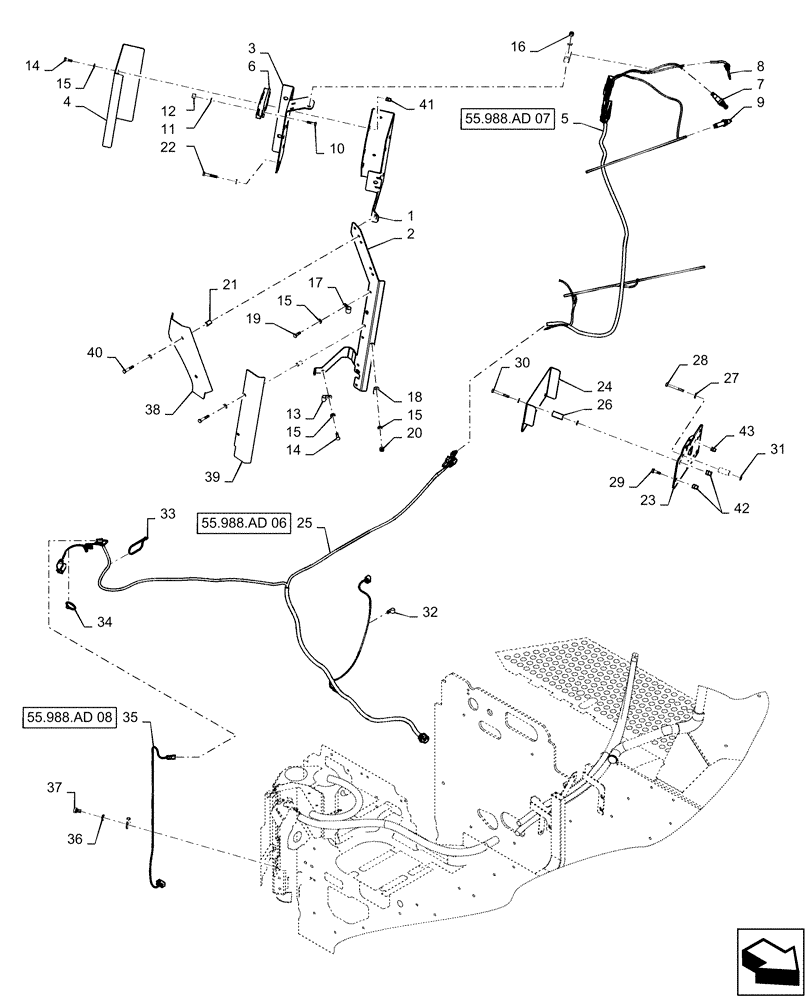

Запчасти Case IH QUADTRAC 620 (55.988.AD[05]) - SCR EXHAUST SYSTEM HARNESS MOUNTING, 540, 580, 620 (55) - ELECTRICAL SYSTEMS

1

47522819

BRACKET

Upper Exhaust

1шт.

2

47522831

BRACKET

Lower Exhaust

1шт.

3

47522811

BRACKET

Upper Exhaust Sensors

1шт.

4

47522814

COVER

Upper Exhaust Sensors

1шт.

5

47471966

WIRE HARNESS

SCR Exhaust Sensors

1шт.

6

47368959

ECU

NH3

1шт.

7

47520140

SENSOR,8 Pin

NH3

1шт.

8

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature

3шт.

9

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX

2шт.

10

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

11

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

5шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

15шт.

15

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

37шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

18

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

21

414937A1

SPACER

9.25mm x 13.72mm x 22.4mm

5шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

23

47362332

BRACKET

Lower Exhaust Sensors

1шт.

24

47362334

COVER

Lower Exhaust Sensors

1шт.

25

84558909

WIRE HARNESS

SCR Main

1шт.

26

8500692

SPACER

9mm x 42mm

5шт.

27

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

28

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

29

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

30

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

31

84359103

NUT,Push On, M8

Push, M8

10шт.

32

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

33

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

11шт.

34

L11541

CABLE TIE,203.2mm L, Nylon

16шт.

35

47500500

WIRE HARNESS

SCR DEF Quality Sensor

1шт.

36

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

37

87547661

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

3шт.

38

47726544

COVER

Lower Exhaust

1шт.

39

47522826

COVER

Lower Exhaust

1шт.

40

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

4шт.

41

408566A1

INSERT,M8

Threaded, M8

19шт.

42

379540A1

INSERT,M8

Threaded, M8

3шт.

43

86013769

NUT

Threaded, M6

2шт.
