(55.911.AC[03]) - GPS RECEIVER SUB-ROOF HARNESS

Запчасти Case IH QUADTRAC 620 (55.911.AC[03]) - GPS RECEIVER SUB-ROOF HARNESS (55) - ELECTRICAL SYSTEMS

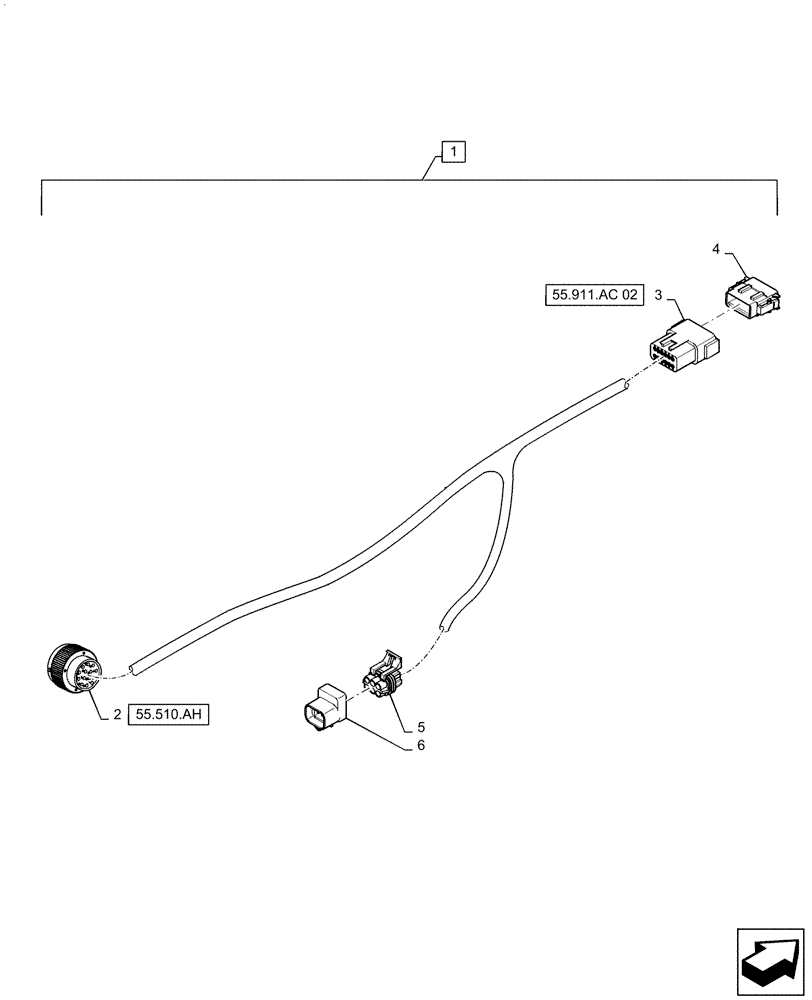

Схема запчастей Case IH QUADTRAC 620 - (55.911.AC[03]) - GPS RECEIVER SUB-ROOF HARNESS (55) - ELECTRICAL SYSTEMS
3
1
6
55.510.ah
4
2
5
55.911.ac 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47475187

WIRE HARNESS

GPS Antenna Sub-Roof, Incl 2 - 6

1шт.

2

84178654

ELEC CONNECTOR

To Cab Roof Harness, C014M

1шт.

3

225388C1

ELEC CONNECTOR,Male, 12 Pin

To GPS Antenna Roof Harness, C442F

1шт.

4

225389C1

CONNECTOR, ELEC

Dust Cover, DC442M

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Dust Cover, DC442M

12шт.

5

256348A1

ELEC CONNECTOR,Female, 6 Pin

Active Terminator, C433

1шт.

6

87601142

ELEC CONNECTOR,Female, 6 Cavities

Active Terminator, RES433

1шт.
