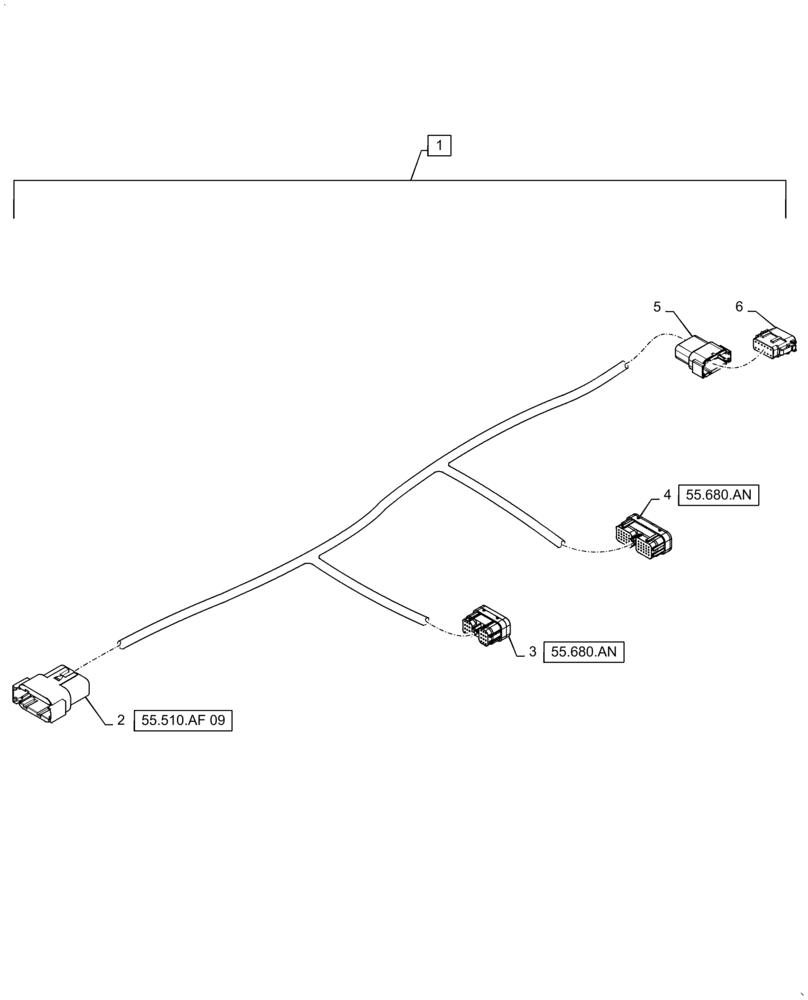

Запчасти Case IH QUADTRAC 620 (55.680.AA[04]) - AUTOGUIDANCE CAB HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

1

47461763

WIRE HARNESS

Autoguidance, Cab

1шт.

2

223686A1

CONNECTOR, ELEC

To Cab Harness, C604F

1шт.

2

87705201

WEDGE

To Cab Harness, C604F

1шт.

2

87696141

TERMINAL

To Cab Harness, C604F

8шт.

2

84807680

PLUG

To Cab Harness, C604F

4шт.

3

84146326

WIRE CONNECTOR

Autoguidance Controller J1B, C087

1шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Autoguidance Controller J1B, C087

3шт.

3

84807680

PLUG

Autoguidance Controller J1B, C087

21шт.

4

87706495

WIRE CONNECTOR

Autoguidance Controller J1A, C086

1шт.

4

381419A1

SOCKET

Autoguidance Controller J1A, C086

8шт.

4

84807680

PLUG

Autoguidance Controller J1A, C086

32шт.

5

87700155

ELEC CONNECTOR,Female, 12 Cavities

Nav II Diagnostic Connector, C614F

1шт.

5

87705201

WEDGE

Nav II Diagnostic Connector, C614F

1шт.

5

87697946

CONNECTOR, ELEC

Nav II Diagnostic Connector, C614F

3шт.

5

84807680

PLUG

Nav II Diagnostic Connector, C614F

9шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

Dust Cap, DC614M

1шт.

6

84807680

PLUG

Dust Cap, DC614M

12шт.
