Запчасти Case IH QUADTRAC 620 (55.518.BL[03]) - WINDSHIELD WASHER HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

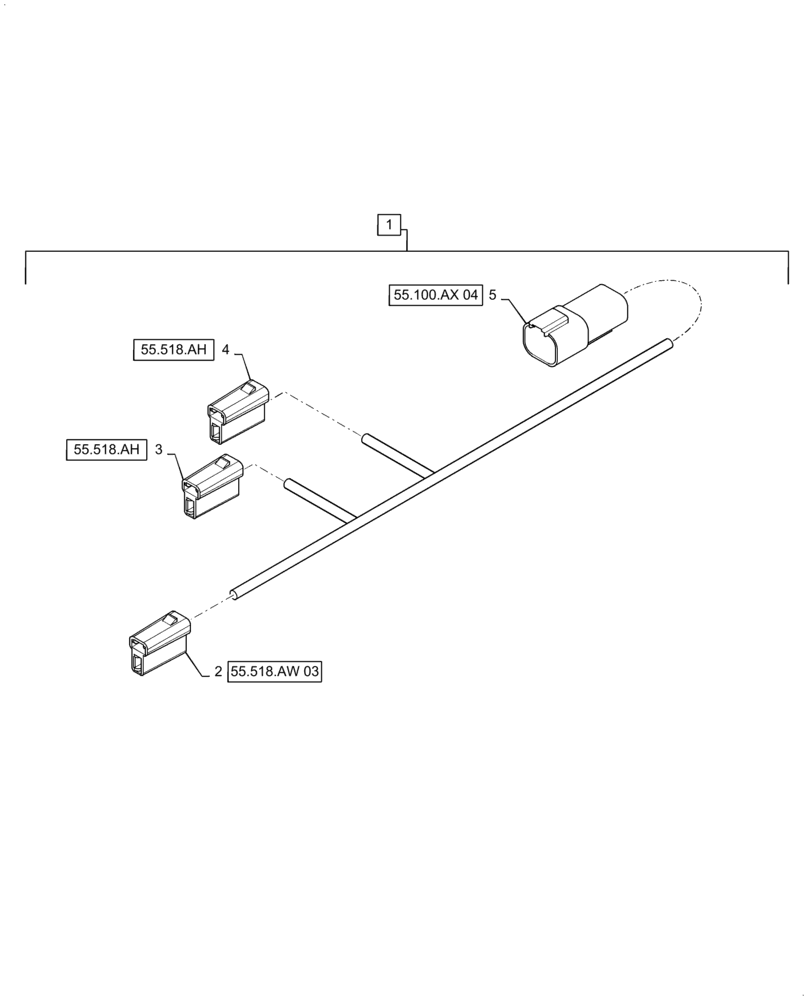

Схема запчастей Case IH QUADTRAC 620 - (55.518.BL[03]) - WINDSHIELD WASHER HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS
4
2
55.518.ah
1
3
55.518.aw 03
55.518.ah
55.100.ax 04
5

Артикул

Название

Примечание

Количество

1

47725473

WIRE HARNESS

Windshield Washer, Incl 2 - 5

1шт.

2

87693325

ELEC CONNECTOR,Female, 2 Cavities

Front Lower Washer Pump, C144

1шт.

2

47727513

TERMINAL

Front Lower Washer Pump, C144

1шт.

3

87693325

ELEC CONNECTOR,Female, 2 Cavities

Rear Washer Pump, C145

1шт.

3

47727513

TERMINAL

Rear Washer Pump, C145

1шт.

4

87693325

ELEC CONNECTOR,Female, 2 Cavities

Front Washer Pump, C143

1шт.

4

47727513

TERMINAL

Front Washer Pump, C143

1шт.

5

87694154

CONTACT HOUSING,Male, 4 Pole

Front Frame Harness, C148F

1шт.

5

87694145

ELEC CONNECTOR

Front Frame Harness, C148F

1шт.

5

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

Front Frame Harness, C148F

4шт.

Выбрано товаров: 10
