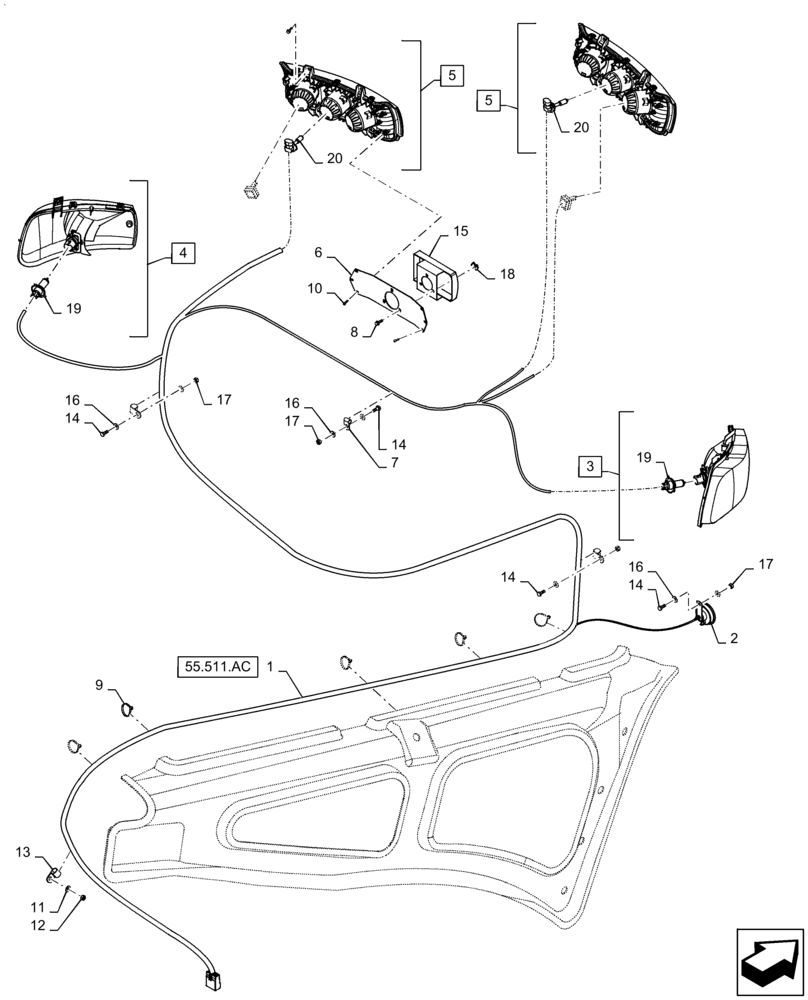

Запчасти Case IH QUADTRAC 620 (55.404.AQ[01]) - STANDARD HALOGEN HEADLIGHT (55) - ELECTRICAL SYSTEMS

1

84225875

HARNESS

Headlight

1шт.

2

87049215

HORN

350Hz, 105 - 118 dBA

1шт.

3

84367875

HEADLAMP

Headlight, RH, RH Drive, Incl 19

1шт.

4

84367874

HEADLAMP

Headlight, LH, RH Drive, Incl 19

1шт.

5

84372203

HEADLAMP,Halogen, 12V, 60W, Clear

Work, Center, 3 Halogen Lights, Incl 20

2шт.

6

84222316

BRACKET, SUPPORTING

Center Headlights

1шт.

7

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

3шт.

8

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

19шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

10

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

6шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

15

84222320

REFLECTOR

Headlight Spacer

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

18

833-40306

SPRING NUT,M6, U

3шт.

19

87283179

BULB,H4, 12V, 60/55W

H4, 12V

2шт.

20

87316352

BULB,HB3, 12V, 60W

HB3, 12V, 60W

6шт.
