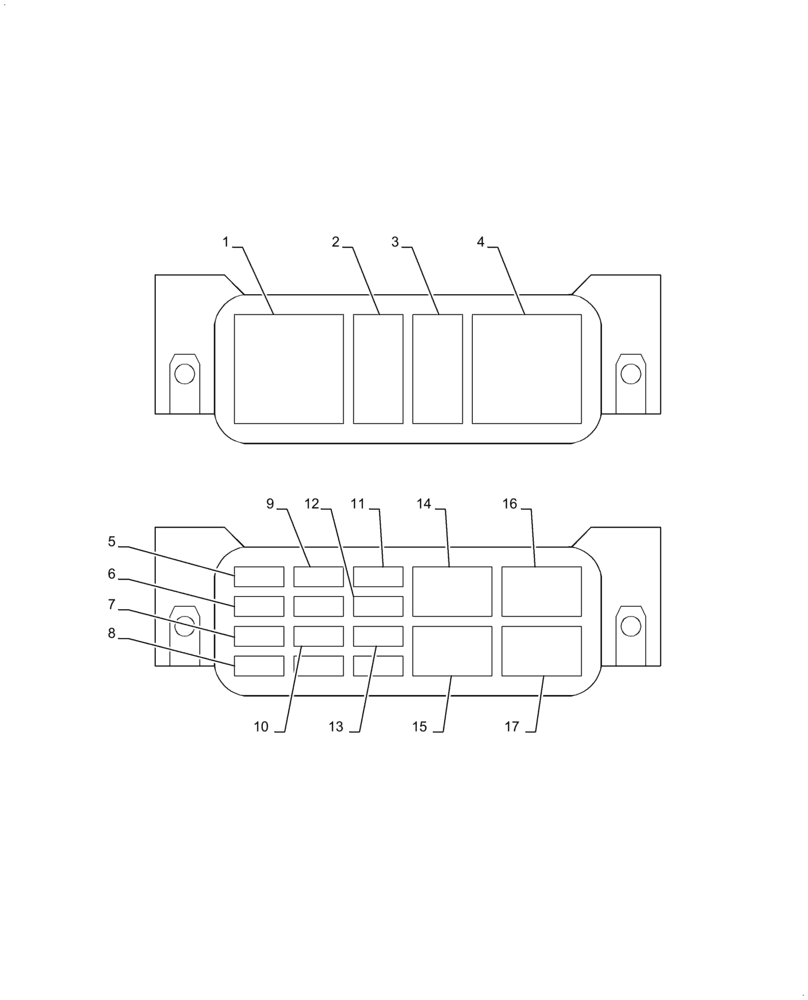

Запчасти Case IH QUADTRAC 620 (55.302.AV[03]) - BATTERY EQUALIZER/CONVERTER HARNESS, T4B, FUSE & RELAY (55) - ELECTRICAL SYSTEMS

1

84539290

RELAY,12V, 50A

F-201, 24V Starter Coil

1шт.

2

82012388

FUSE,30A, Maxival, Green

F-202, Engine, Main

1шт.

3

338057A1

FUSE,50A, Maxival, Red

K-201, 24V Starter Coil

1шт.

4

84539290

RELAY,12V, 50A

K-202, Engine, Main

1шт.

5

84127708

FUSE,30A, Mini, Green

F-203, Engine Auxiliary

1шт.

6

84127704

FUSE,20A, Mini, Yellow

F-204, Engine Auxiliary

1шт.

7

84127703

FUSE,15A, Mini, Blue

F-205, Engine Auxiliary

1шт.

8

84153830

FUSE,5A, Mini, Beige

F-206, Engine After Run, Serial Range: ZEF300001-ZEF303000

1шт.

9

84127708

FUSE,30A, Mini, Green

F-207, Battery Equalizer Input

1шт.

10

84153828

FUSE,2A, Mini, Gray

F-209, Engine Auxiliary

1шт.

11

84127703

FUSE,15A, Mini, Blue

F-211, 24V Battery Equalizer Output

1шт.

12

84153830

FUSE,5A, Mini, Beige

F-212, 24V Monitor

1шт.

13

84127702

FUSE,10A, Mini, Red

F-213, 24V Secondary Steering Pump Coil

1шт.

14

84561098

RELAY,12V, 35A

K-203, Engine Starter

1шт.

15

84561098

RELAY,12V, 35A

K-204, Engine Auxiliary

1шт.

16

84561098

RELAY,12V, 35A

K-205, Engine After Run, Serial Range: ZEF300001-ZEF303000

1шт.
