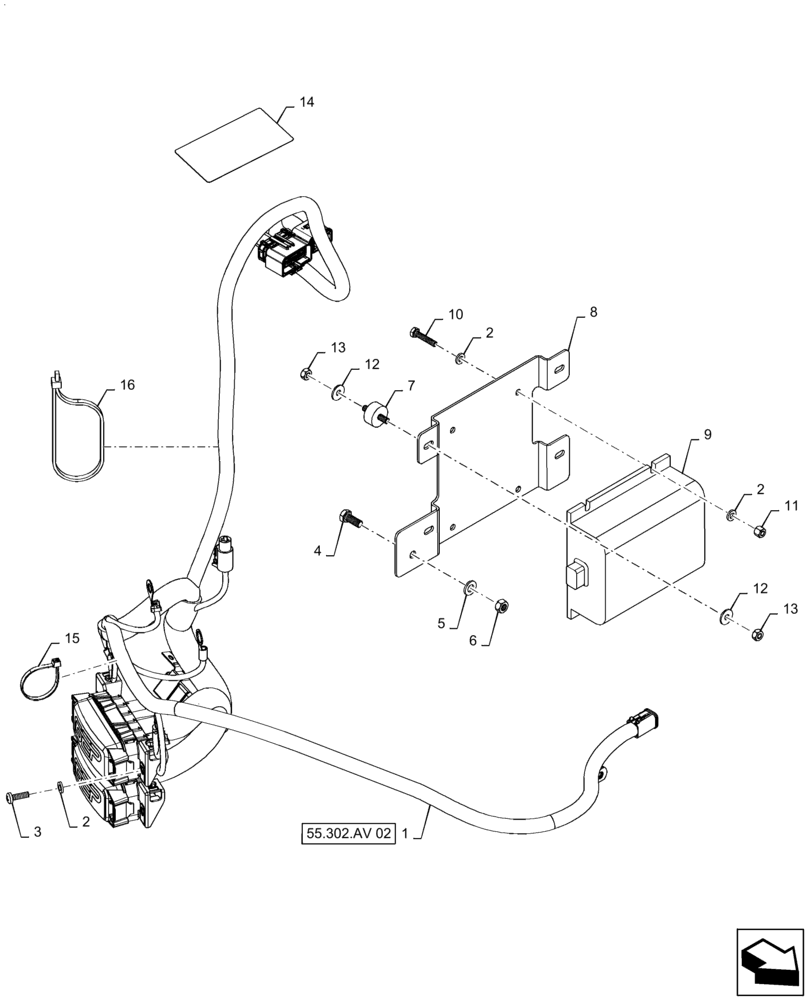

Запчасти Case IH QUADTRAC 620 (55.302.AV[01]) - BATTERY EQUALIZER/CONVERTER, T4B (55) - ELECTRICAL SYSTEMS

1

47603900

WIRE HARNESS

Battery Equalizer, T4B

1шт.

2

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

12шт.

3

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

7

84316981

ISOLATOR

Vibration Dampening

4шт.

8

47716443

BRACKET

Equalizer

1шт.

9

47489949

CONVERTER,12V To 24V

Battery Equalizer

1шт.

9

47489949R

REMAN-MODULE

Battery Equalizer

1шт.

9

47489949C

CORE-MODULE

Return Number

1шт.

10

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

4шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

13

425-104

NUT,1/4"-20, Cl 5

8шт.

14

47603908

DECAL

Fuse And Relay Location

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

1шт.
