Запчасти Case IH QUADTRAC 620 (55.100.AX[04]) - FRONT FRAME HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

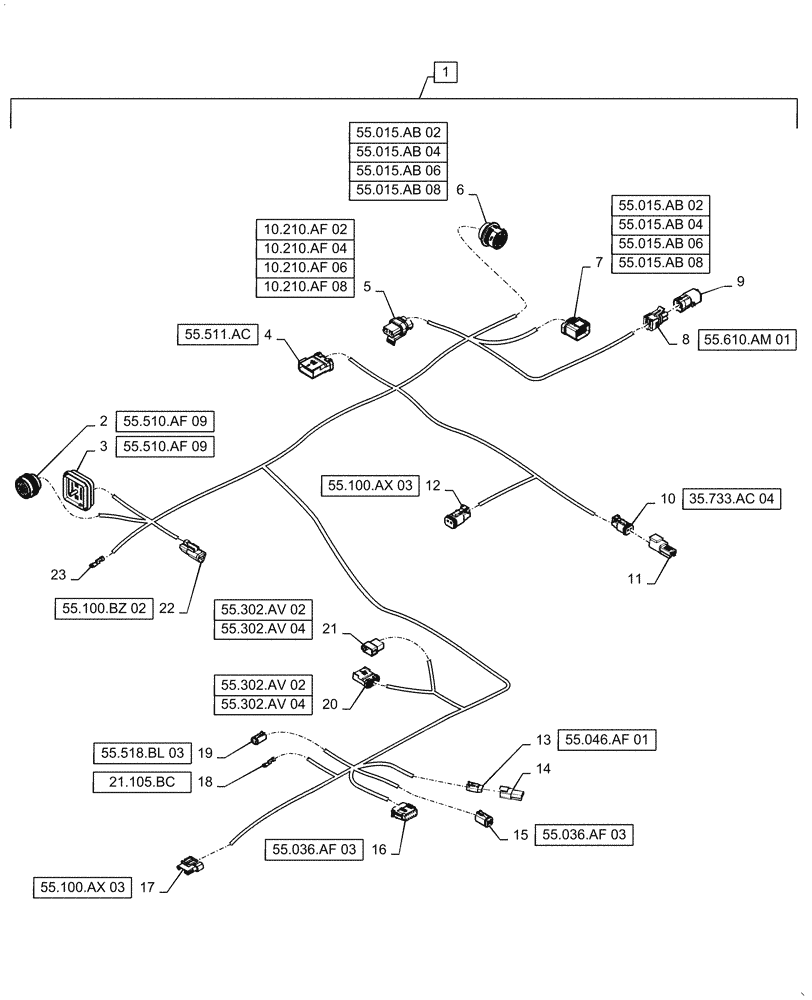

Схема запчастей Case IH QUADTRAC 620 - (55.100.AX[04]) - FRONT FRAME HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS
55.302.av 04
18
11
16
7
17
5
10
1
6
23
13
3
21
14
19
22
20
8
2
4
15
9
12
55.510.af 09
55.510.af 09
55.518.bl 03
55.036.af 03
35.733.ac 04
55.015.ab 08
55.015.ab 08
55.036.af 03
55.100.ax 03
55.100.ax 03
10.210.af 04
10.210.af 02
10.210.af 08
55.046.af 01
55.015.ab 02
55.015.ab 02
55.015.ab 06
55.015.ab 06
55.302.av 02
55.302.av 02
55.100.bz 02
55.511.ac
55.610.am 01
10.210.af 06
21.105.bc
55.015.ab 04
55.015.ab 04
55.302.av 04

Артикул

Название

Примечание

Количество

1

47694010

WIRE HARNESS

Front Frame, Incl 2 - 23

1шт.

2

47509926

ELEC CONNECTOR

To Cab Harness, C009M

1шт.

2

87695623

ELEC. TERMINAL PIN

To Cab Harness, C009M

9шт.

2

84068583

PLUG,12 - 16 Ga, White

To Cab Harness, C009M

10шт.

3

84177902

ELEC CONNECTOR

To Cab Harness, C001M

1шт.

3

84177910

ELEC CONNECTOR

To Cab Harness, C001M

1шт.

3

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

To Cab Harness, C001M

12шт.

3

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To Cab Harness, C001M

20шт.

3

87695923

TERMINAL

To Cab Harness, C001M

10шт.

3

84807680

PLUG

To Cab Harness, C001M

4шт.

3

84068583

PLUG,12 - 16 Ga, White

To Cab Harness, C001M

2шт.

4

87382926

WIRE CONNECTOR,Female, 14 Cavities

To Hood Harness, C102F

1шт.

4

84395358

TERMINAL

To Hood Harness, C102F

12шт.

4

84294640

TERMINAL

To Hood Harness, C102F

1шт.

4

84279937

PLUG,Apex, 2.80mm

To Hood Harness, C102F

1шт.

5

87679438

WIRE CONNECTOR,Female

Fuel Primer Pump, C170

1шт.

5

84806458

COLLAR

Fuel Primer Pump, C170

1шт.

5

87680656

CONTACT

Fuel Primer Pump, C170

2шт.

5

87680710

SEAL

Fuel Primer Pump, C170

2шт.

6

87696944

ELEC CONNECTOR,Female, 31 Pole

To Engine Harness, C100F

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Engine Harness, C100F

25шт.

6

84068583

PLUG,12 - 16 Ga, White

To Engine Harness, C100F

6шт.

7

87382922

WIRE CONNECTOR,Female, 10 Cavities

To Engine Harness, C150F

1шт.

7

84395358

TERMINAL

To Engine Harness, C150F

3шт.

7

84294640

TERMINAL

To Engine Harness, C150F

6шт.

7

84279937

PLUG,Apex, 2.80mm

To Engine Harness, C150F

1шт.

8

87692862

ELEC CONNECTOR

Ground Speed Radar, C139M

1шт.

8

87692856

CABLE TERMINAL

Ground Speed Radar, C139M

4шт.

8

84286327

SEAL

Ground Speed Radar, C139M

4шт.

9

87692881

WIRE CONNECTOR

Dust Cap, DC139

1шт.

9

87686742

PLUG

Dust Cap, DC139

4шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

Front Diff Lock Solenoid, C133

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

Front Diff Lock Solenoid, C133

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Front Diff Lock Solenoid, C133

2шт.

11

87695584

CONTACT HOUSING,Male, 2 Cavities

Dust Cap, DC133

1шт.

11

84068583

PLUG,12 - 16 Ga, White

Dust Cap, DC133

2шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

Axle Lube Pressure Switch, C130

1шт.

12

84074638

LOCKING TAB,Locking Wedge, Green

Axle Lube Pressure Switch, C130

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Axle Lube Pressure Switch, C130

2шт.

13

87706461

ELEC CONNECTOR

To Steering Pressure Sensor Harness, C140M

1шт.

13

87705586

WEDGE

To Steering Pressure Sensor Harness, C140M

1шт.

13

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To Steering Pressure Sensor Harness, C140M

3шт.

14

84146316

ELEC CONNECTOR

Dust Cap, DC140

1шт.

14

84807680

PLUG

Dust Cap, DC140

3шт.

15

87694112

ELEC CONNECTOR,Female, 6 Pole

To Hydraulic Sub Harness, C131M

1шт.

15

87694150

LOCKING TAB,Wedge Lock

To Hydraulic Sub Harness, C131M

1шт.

15

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Hydraulic Sub Harness, C131M

6шт.

16

87700156

CONTACT HOUSING,Female, 12 Pole

To Hydraulic Sub Harness, C360M

1шт.

16

87705198

WEDGE

To Hydraulic Sub Harness, C360M

1шт.

16

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

To Hydraulic Sub Harness, C360M

12шт.

17

84398823

ELEC CONNECTOR,Female, 2 Cavities

Steering Angle Sensor, C362

1шт.

17

441660A1

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Steering Angle Sensor, C362

6шт.

18

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Transmission Oil Filter Restrictor Switch, C141

1шт.

19

87694153

CONTACT HOUSING,Female, 4 Cavities

Washer Bottle Harness, C148M

1шт.

19

84074640

LOCKING TAB,Wedge Lock

Washer Bottle Harness, C148M

1шт.

19

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Washer Bottle Harness, C148M

4шт.

20

87382927

ELEC CONNECTOR,Male, 14 Cavities

To Battery Equalizer Harness, C134M

1шт.

20

84395363

TERMINAL

To Battery Equalizer Harness, C134M

3шт.

20

84294639

TERMINAL

To Battery Equalizer Harness, C134M

6шт.

20

84279937

PLUG,Apex, 2.80mm

To Battery Equalizer Harness, C134M

5шт.

21

87695724

ELEC CONNECTOR,Male, 12 Pole

To Battery Equalizer Harness, C135F

1шт.

21

87698541

LOCKING TAB,Wedge Lock, 12-Pin

To Battery Equalizer Harness, C135F

1шт.

21

87695623

ELEC. TERMINAL PIN

To Battery Equalizer Harness, C135F

10шт.

21

84068583

PLUG,12 - 16 Ga, White

To Battery Equalizer Harness, C135F

2шт.

22

87695580

ELEC CONNECTOR,Female, 3 Pole

To Rear Frame Harness, C149M

1шт.

22

84074639

LOCKING TAB,Wedge Lock

To Rear Frame Harness, C149M

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Rear Frame Harness, C149M

3шт.

23

84401295

TERMINAL

Chassis Ground, C125

1шт.

Выбрано товаров: 68
