Запчасти Case IH QUADTRAC 620 (55.036.AF[03]) - HYDRAULIC SYSTEM HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS

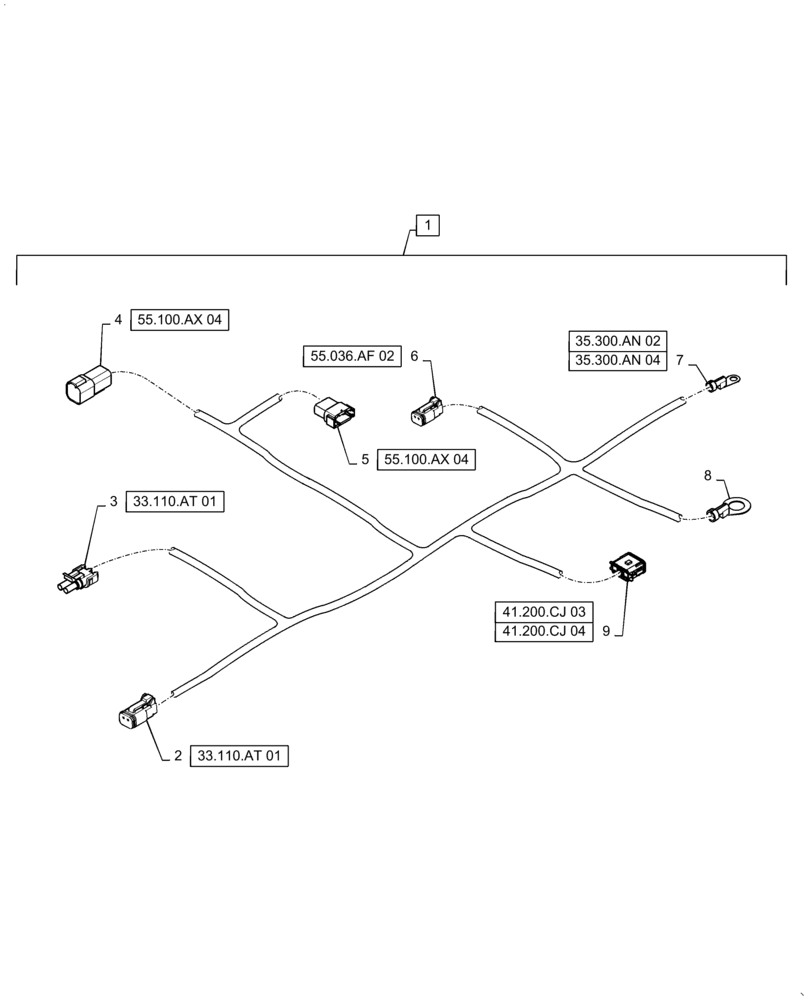

Схема запчастей Case IH QUADTRAC 620 - (55.036.AF[03]) - HYDRAULIC SYSTEM HARNESS, ASN ZFF308001 (55) - ELECTRICAL SYSTEMS
9
33.110.at 01
55.100.ax 04
1
41.200.cj 04
7
35.300.an 04
2
35.300.an 02
4
6
5
3
41.200.cj 03
55.036.af 02
8
55.100.ax 04
33.110.at 01

Артикул

Название

Примечание

Количество

1

47694019

WIRE HARNESS

Hydraulic System, Incl 2 - 9

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

Park Brake Solenoid, C138

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Park Brake Solenoid, C138

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Park Brake Solenoid, C138

2шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Park Brake Pressure Switch, C137

1шт.

3

87692856

CABLE TERMINAL

Park Brake Pressure Switch, C137

2шт.

3

87680701

SEAL

Park Brake Pressure Switch, C137

2шт.

4

87694152

CONTACT HOUSING,Male, 6 Pole

To Front Frame Harness, C131F

1шт.

4

87694147

WEDGE,Locking, Green

To Front Frame Harness, C131F

1шт.

4

87695623

ELEC. TERMINAL PIN

To Front Frame Harness, C131F

6шт.

5

87700155

ELEC CONNECTOR,Female, 12 Cavities

To Front Frame Harness, C360F

1шт.

5

87705201

WEDGE

To Front Frame Harness, C360F

1шт.

5

87697946

CONNECTOR, ELEC

To Front Frame Harness, C360F

12шт.

6

87695582

ELEC CONNECTOR,Female, 2 Pole

Hydraulic Oil Temperature Sender, C132

1шт.

6

84074638

LOCKING TAB,Locking Wedge, Green

Hydraulic Oil Temperature Sender, C132

1шт.

6

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Hydraulic Oil Temperature Sender, C132

2шт.

7

1964703C1

TERMINAL CONNECTOR

Hydraulic Oil Filter Restriction Switch, C136

1шт.

8

1964706C1

TERMINAL CONNECTOR

Hydraulic Oil Filter Restriction Switch Ground, C129

1шт.

9

87696075

ELEC CONNECTOR

To Electronic Steering Valve, C361

1шт.

9

87695651

LOCKING TAB,Wedge Lock

To Electronic Steering Valve, C361

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

To Electronic Steering Valve, C361

12шт.

Выбрано товаров: 21
