Запчасти Case IH QUADTRAC 620 (55.036.AF[01]) - HYDRAULIC SYSTEM HARNESS, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS

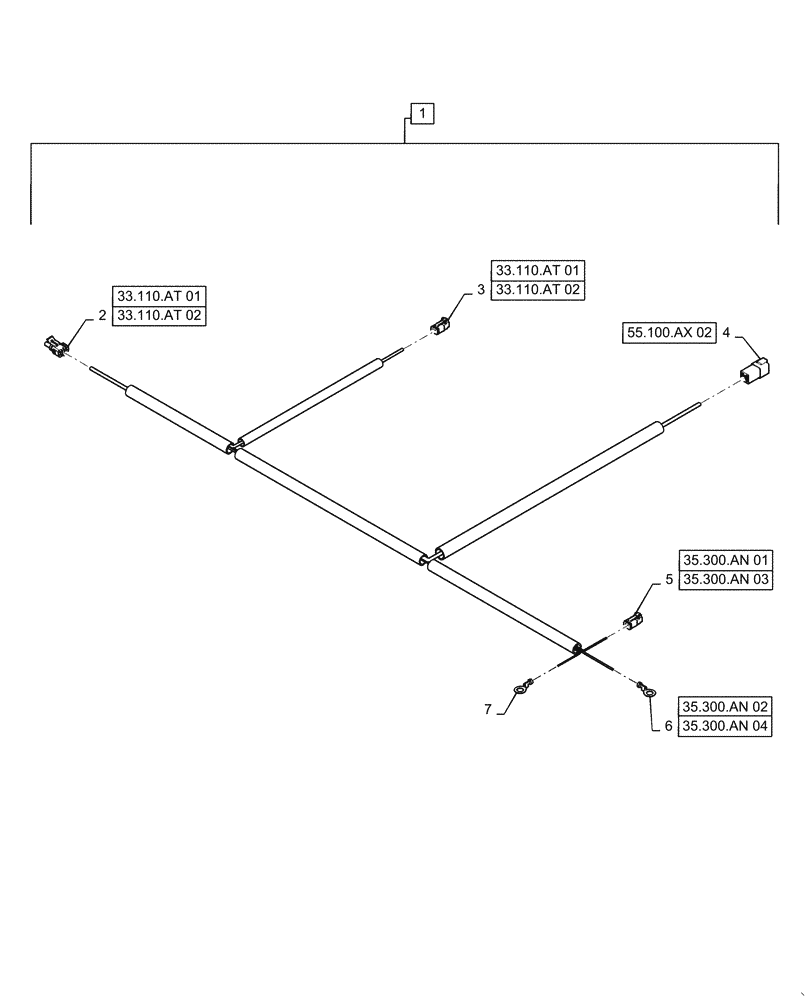

Схема запчастей Case IH QUADTRAC 620 - (55.036.AF[01]) - HYDRAULIC SYSTEM HARNESS, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS
7
33.110.at 02
4
5
6
35.300.an 02
35.300.an 04
35.300.an 03
33.110.at 02
35.300.an 01
3
33.110.at 01
1
2
33.110.at 01
55.100.ax 02

Артикул

Название

Примечание

Количество

1

84250842

HARNESS

Hydraulic Sub Assembly, Incl 2 - 7

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

Park Brake Solenoid, C138

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Park Brake Solenoid, C138

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Park Brake Solenoid, C138

2шт.

3

245482C1

ELEC CONNECTOR,2 Pin

Park Brake Pressure Switch, C137

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

Park Brake Pressure Switch, C137

1шт.

3

87608853

WIRE CONNECTOR

Park Brake Pressure Switch, C137

2шт.

3

87680701

SEAL

Park Brake Pressure Switch, C137

2шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

To Front Frame Harness, C131F

1шт.

4

87694147

WEDGE,Locking, Green

To Front Frame Harness, C131F

1шт.

4

87695623

ELEC. TERMINAL PIN

To Front Frame Harness, C131F

6шт.

5

225316C1

ELEC CONNECTOR,Female, 2 Pin

Hydraulic Oil Temperature, C132M

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Hydraulic Oil Temperature, C132M

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Hydraulic Oil Temperature, C132M

2шт.

6

1964703C1

TERMINAL CONNECTOR

Hydraulic Oil Filter Restriction Switch, C136

1шт.

7

1964706C1

TERMINAL CONNECTOR

Hydraulic Oil Filter Restriction Switch Ground, C129

1шт.

Выбрано товаров: 16
