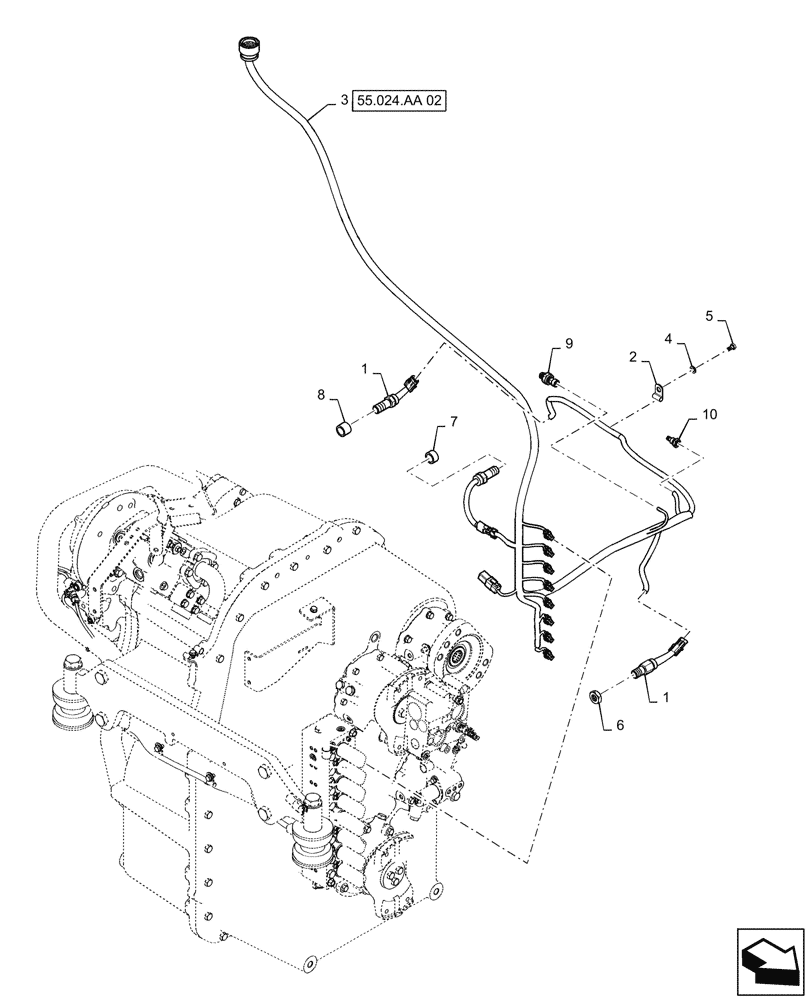

Запчасти Case IH QUADTRAC 620 (55.024.AA[03]) - TRANSMISSION HARNESS MOUNTING, PS6, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (55) - ELECTRICAL SYSTEMS

1

47942959

Speed, Transmission Gear

SENSOR

4шт.

2

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

3

84195943

WIRE HARNESS

Transmission Control

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

7

87351748

SPACER,20.5mm ID x 28.5mm OD x 15.22mm W

15.217mm, 1st Shaft Speed Sensor

1шт.

8

87715474

SPACER,20.5mm ID x 28.5mm OD x 21.19mm W

21.185mm, Speed Sensor

1шт.

9

86987513

SENSOR

Transmission Pressure

1шт.

10

87521424

TEMPERATURE SENDER

Transmission Oil

1шт.
