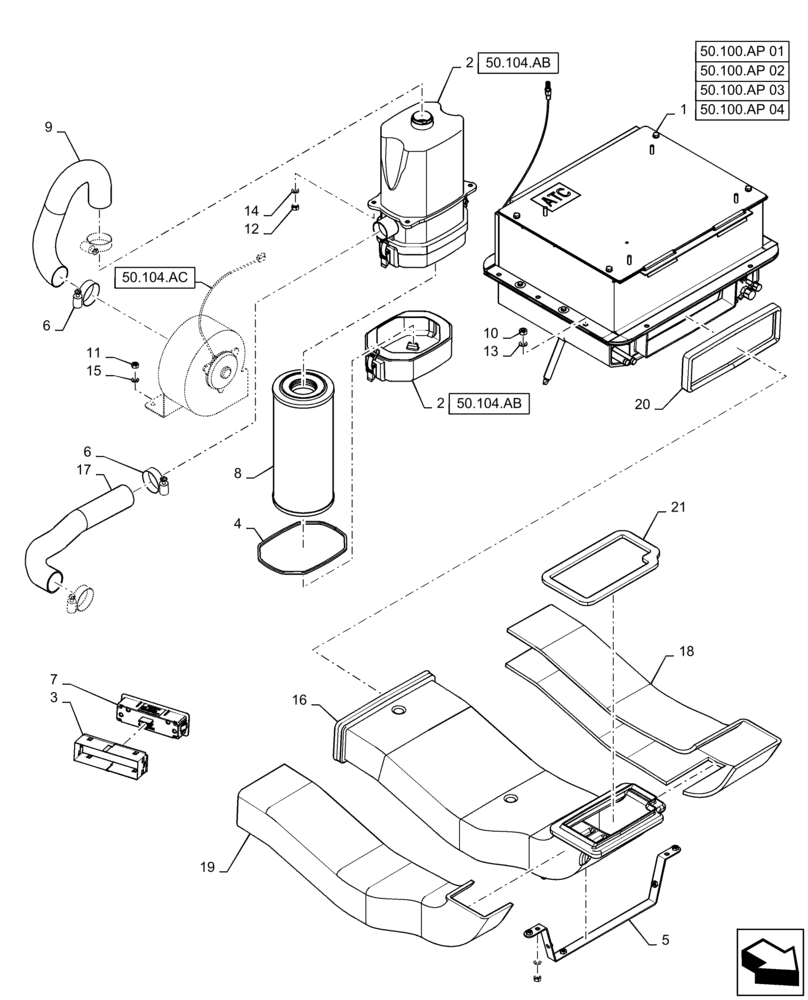

Запчасти Case IH QUADTRAC 620 (50.104.AO) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

47597103

AIR CONDITIONER

Unit, Serial Range: -ZFF303911

1шт.

1

47764034

AIR CONDITIONER

Unit, Start Serial: ZFF303912

1шт.

2

87596194

HOUSING

Cab Air Cleaner

1шт.

3

87281122

SLEEVE

HVAC Control Unit

1шт.

4

359586A1

SEAL

Air Duct

1шт.

5

384950A2

BRACKET

Air Duct

1шт.

6

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

4шт.

7

84369353

DISPLAY

HVAC

1шт.

8

87684088

CAB FILTER,CAB

Fresh Air

1шт.

8

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

9

307024A4

INTAKE AIR HOSE,57.00 mm ID x 390.00 mm

1шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

14

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

3шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

16

327851A1

DUCT

HVAC

1шт.

17

87380071

HOSE,54.00 mm ID x 975.00 mm, SAE 20R4

Used Without Suspended Cab

1шт.

17

84371676

AIR HOSE

Used With Suspended Cab

1шт.

18

328052A2

FOAM INSULATION

Air Duct

1шт.

19

328051A2

FOAM INSULATION

Air Dust

1шт.

20

359670A2

INSULATION,60mm W x 860mm L x 10mm Thk

Duct

1шт.

21

278967A3

GASKET

Duct To Cab Floor

1шт.
