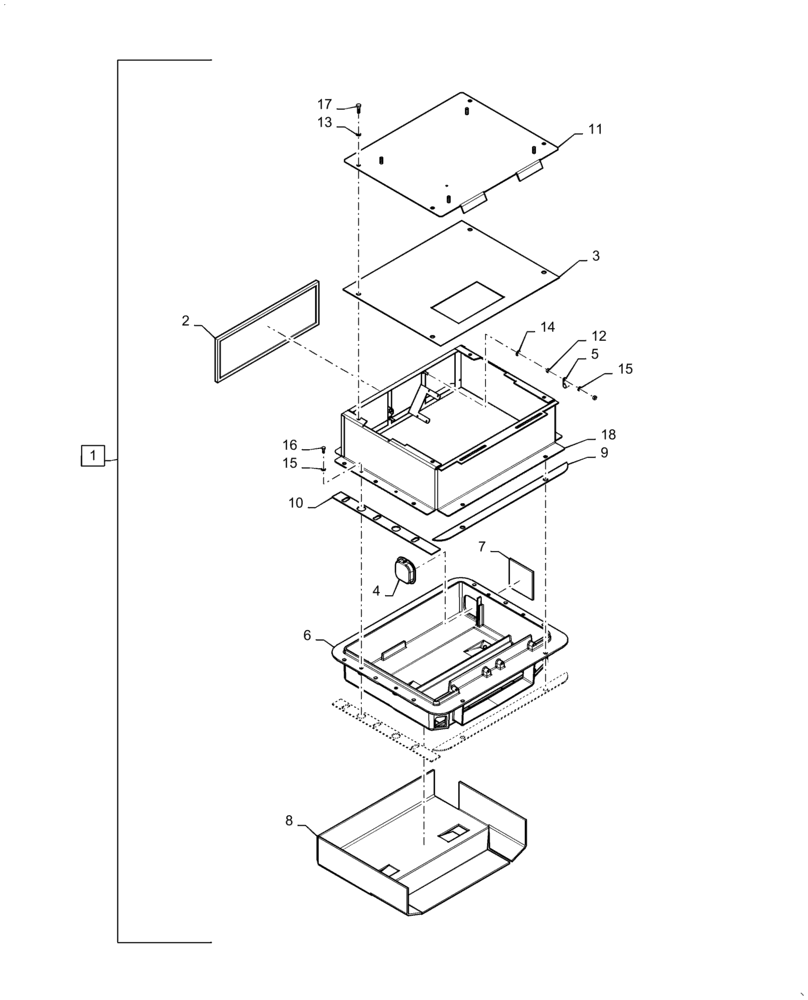

Запчасти Case IH QUADTRAC 620 (50.100.AP[03]) - AIR CONDITIONING UNIT, HOUSING & COVERS, ASN ZFF303912 (50) - CAB CLIMATE CONTROL

1

47764034

AIR CONDITIONER

Incl 2 - 18 and All Parts On Figure 50.100.AP(04)

1шт.

2

386751A1

CAB FILTER

HVAC, Recirculated Air

1шт.

3

87324951

GASKET,3mm Thk

1шт.

4

368313A1

PLASTIC PLUG

HVAC Corner

1шт.

5

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

6

322996A1

BOX

Lower Evaporator

1шт.

7

87306773

FOAM INSULATION

Side

1шт.

8

324484A1

INSULATOR

Bottom

1шт.

9

322995A1

GASKET,3mm Thk

4шт.

10

322994A1

GASKET,3mm Thk

4шт.

11

87306495

COVER

Top

1шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

15

892-11006

LOCK WASHER,M6

5шт.

16

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

4шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

18

47764565

COVER ASSY

Upper HVAC Housing

1шт.
