Запчасти Case IH QUADTRAC 620 (50.100.AP[01]) - AIR CONDITIONING UNIT, HOUSING & COVERS, BSN ZFF303911 (50) - CAB CLIMATE CONTROL

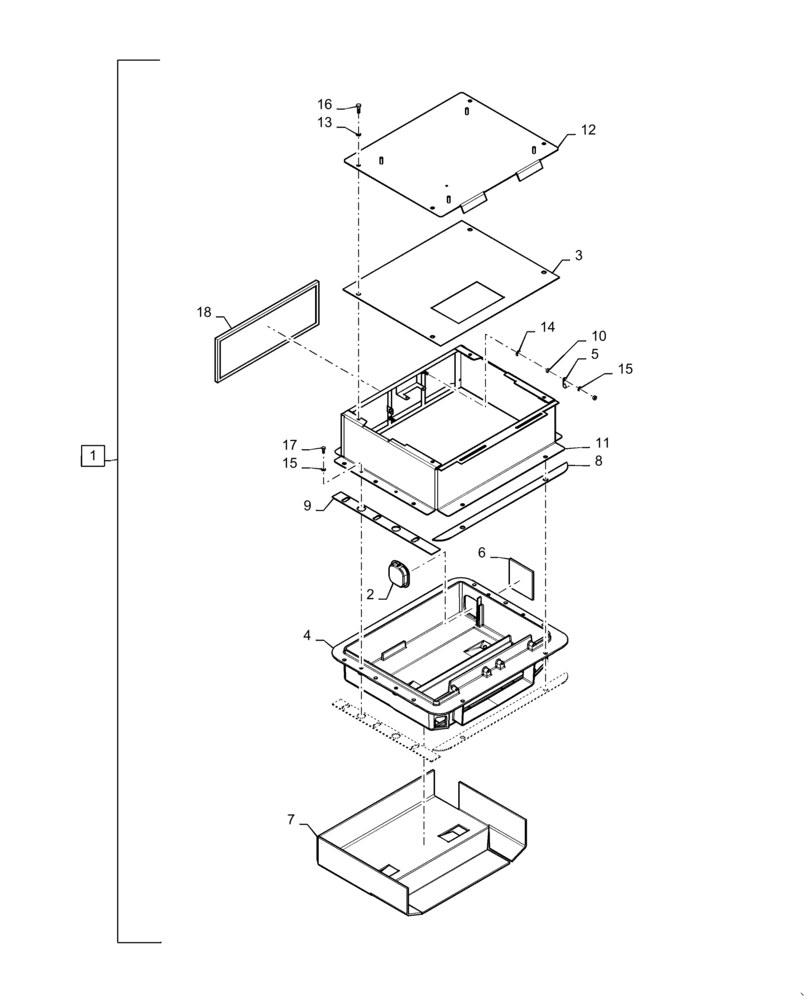

Схема запчастей Case IH QUADTRAC 620 - (50.100.AP[01]) - AIR CONDITIONING UNIT, HOUSING & COVERS, BSN ZFF303911 (50) - CAB CLIMATE CONTROL
16
4
11
15
6
1
14
8
10
13
5
3
15
12
2
9
7
17
18

Артикул

Название

Примечание

Количество

1

47597103

AIR CONDITIONER

Incl 2 - 18 and All Parts On Figure 50.100.AP(02)

1шт.

2

368313A1

PLASTIC PLUG

HVAC Corner

1шт.

3

87324951

GASKET,3mm Thk

1шт.

4

322996A1

BOX

Lower Evaporator

1шт.

5

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

1шт.

6

87306773

FOAM INSULATION

Side

1шт.

7

324484A1

INSULATOR

Bottom

1шт.

8

322995A1

GASKET,3mm Thk

4шт.

9

322994A1

GASKET,3mm Thk

4шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

11

87306776

CASE ASSY.

Upper HVAC Housing

1шт.

12

87306495

COVER

Top

1шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

493-81002

LOCK WASHER,Ext-Int Tooth, 1/4"

1шт.

15

892-11006

LOCK WASHER,M6

5шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

18

386751A1

CAB FILTER

HVAC, Recirculated Air

1шт.

Выбрано товаров: 18
