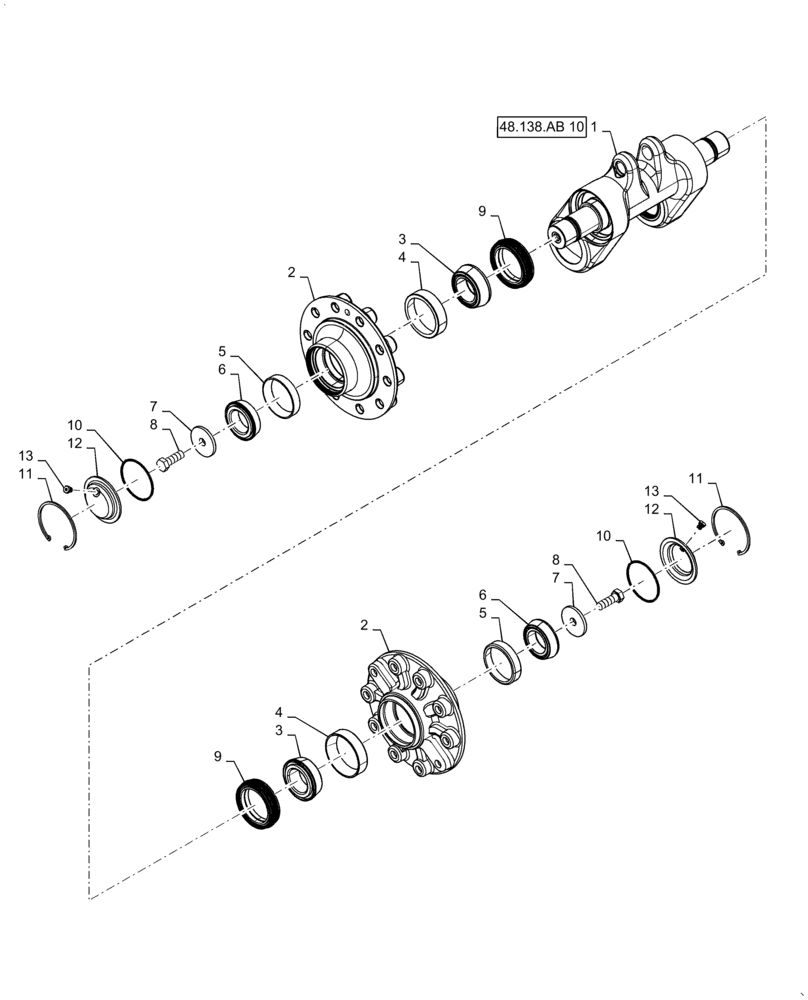

Запчасти Case IH QUADTRAC 620 (48.138.AB[09]) - FRONT IDLER, ASN ZFF304748 (48) - TRACKS & TRACK SUSPENSION

1

84222577

PIVOT

Front Idler Assembly

1шт.

2

84272488

HUB

Idler

2шт.

3

87750406

BEARING CONE,66.68mm ID x 38.35mm W

2шт.

4

87750407

BEARING CUP,122.24mm OD x 29.72mm W

2шт.

5

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

2шт.

6

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

2шт.

7

87387720

RETAINER

Bearing

2шт.

8

84303553

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

2шт.

9

84198542

SEAL,96mm ID x 125.35mm OD x 33mm W

2шт.

10

238-5426

O-RING,0.275" Thk x 4.625" ID, -426, Cl 5, 75 Duro

2шт.

11

370014

SNAP RING,M130, Internal

2шт.

12

87408174

CAP

Idler, Steel

2шт.

12

47608296

COVER

Idler, Clear

2шт.

13

246406A1

PLUG,M12 x 1.5 ORB

Used with Steel Cap

2шт.

13

86598043

PLUG,M12 x 1.5 ORB

Used with Clear Cap

2шт.
