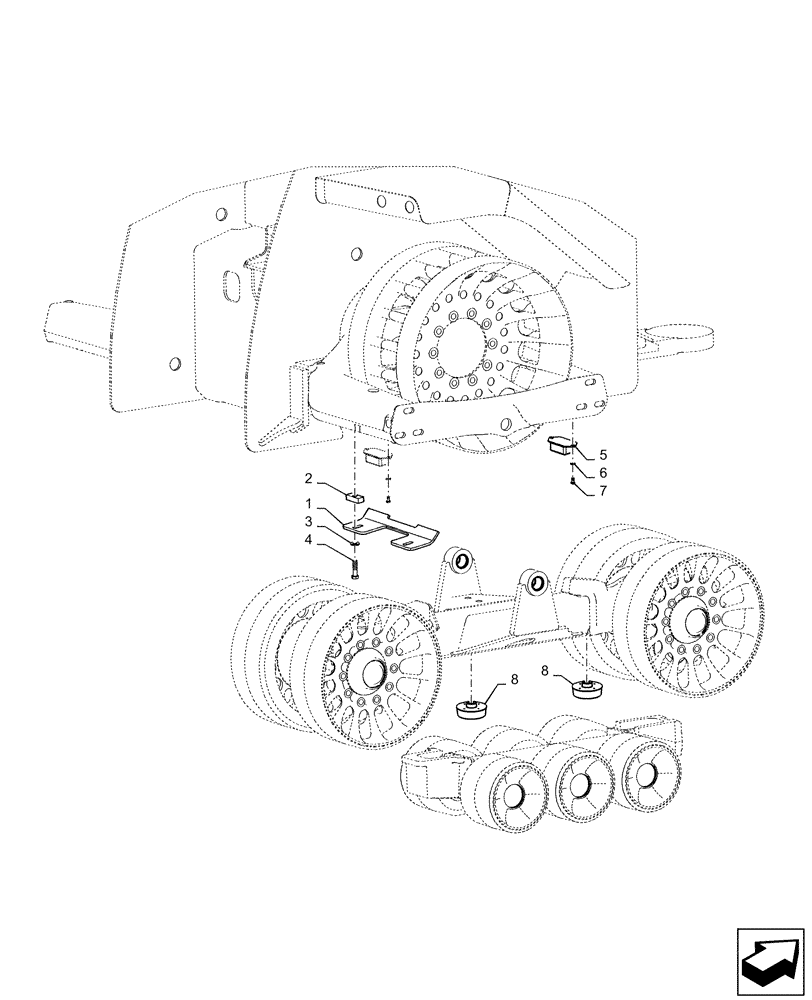

Запчасти Case IH QUADTRAC 620 (48.130.AJ[02]) - QUADTRAC DRIVE WHEEL, SCRAPER BUMP STOPS (48) - TRACKS & TRACK SUSPENSION

1

87439068

PLATE

Drive Wheel Scraper

4шт.

2

87439069

BAR

Scraper Retention

8шт.

3

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

4

827-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

8шт.

5

87428948

BUMPER,58mm ID x 115mm OD x 5mm Thk

Rubber Undercarriage

8шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

16шт.

7

86836488

HEX SOC SCREW,M12 x 25mm, Cl 12.9

16шт.

8

87669420

STOP,150mm OD x 68mm L

Suspension

8шт.
