Запчасти Case IH QUADTRAC 620 (41.200.BD) - STEERING VALVE LINES (41) - STEERING

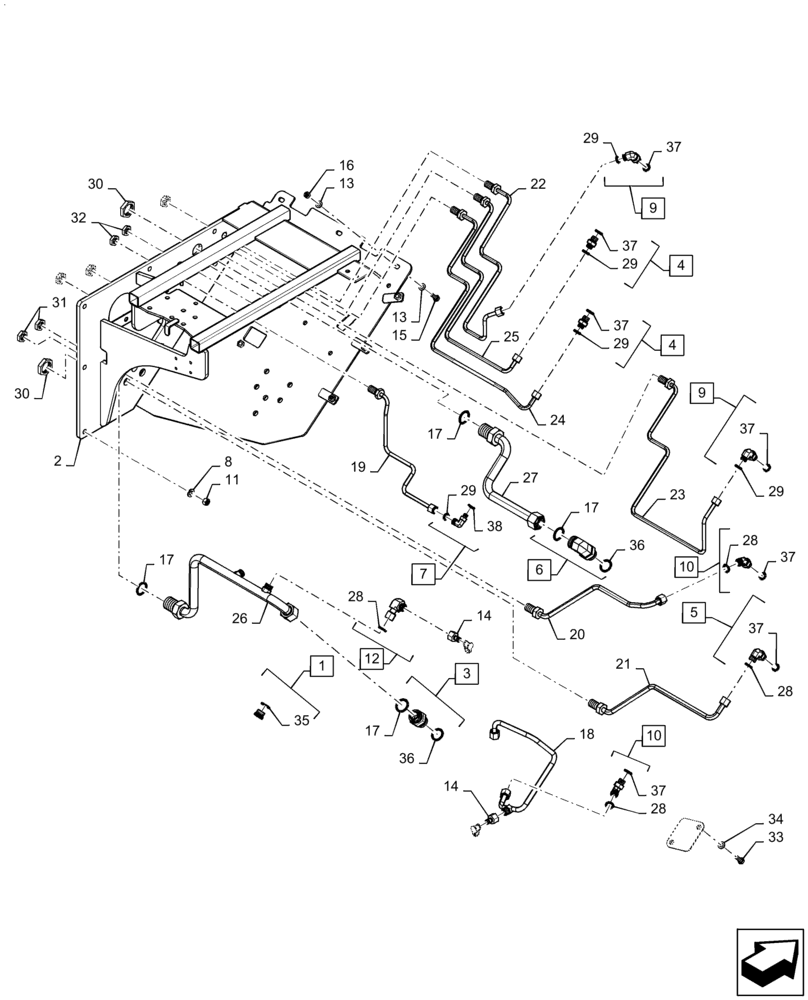

Схема запчастей Case IH QUADTRAC 620 - (41.200.BD) - STEERING VALVE LINES (41) - STEERING
1
13
16
37
37
30
19
2
33
3
37
36
28
15
10
27
7
28
17
34
28
37
32
29
13
38
6
37
12
8
26
9
22
11
17
4
24
30
25
35
17
29
21
14
20
18
29
37
29
31
9
23
29
4
14
28
5
10
37
17
36

Артикул

Название

Примечание

Количество

1

221579A1

PLUG,M22 x 1.5 ORB

Incl 35

1шт.

2

47512601

SUPPORT

Hydraulic Valve

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 17, 36

1шт.

4

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 29, 37

2шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 28, 37

1шт.

6

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 17, 36

1шт.

7

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Incl 29, 38

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

7шт.

9

700-345

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 29, 37

2шт.

10

700-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 28, 37

2шт.

11

829-1412

NUT,M12, Cl 10.9

7шт.

12

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 28

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

14

190316A1

COUPLING

Diagnostic

2шт.

15

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

16

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

18

84212477

TUBE

Priority Return

1шт.

19

84212479

TUBE

Steering Load Sense

1шт.

20

84212480

TUBE

Steering Pressure, LH

1шт.

21

84212482

TUBE

Steering Pressure, RH

1шт.

22

84212484

TUBE

Steering Control, LH

1шт.

23

84212485

TUBE

Steering Control, RH

1шт.

24

84212486

TUBE

Steering Control, Pressure

1шт.

25

84212488

TUBE

Steering Control, Tank

1шт.

26

84212490

TUBE

Pump Pressure

1шт.

27

84212492

TUBE

EF Supply

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

9шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

30

701-908

BHD LOCK NUT,1-7/16" - 12

2шт.

31

701-903

NUT,13/16" - 16

2шт.

32

701-909

NUT,11/16" - 16

5шт.

33

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

34

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

35

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

36

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

37

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

7шт.

38

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 38
