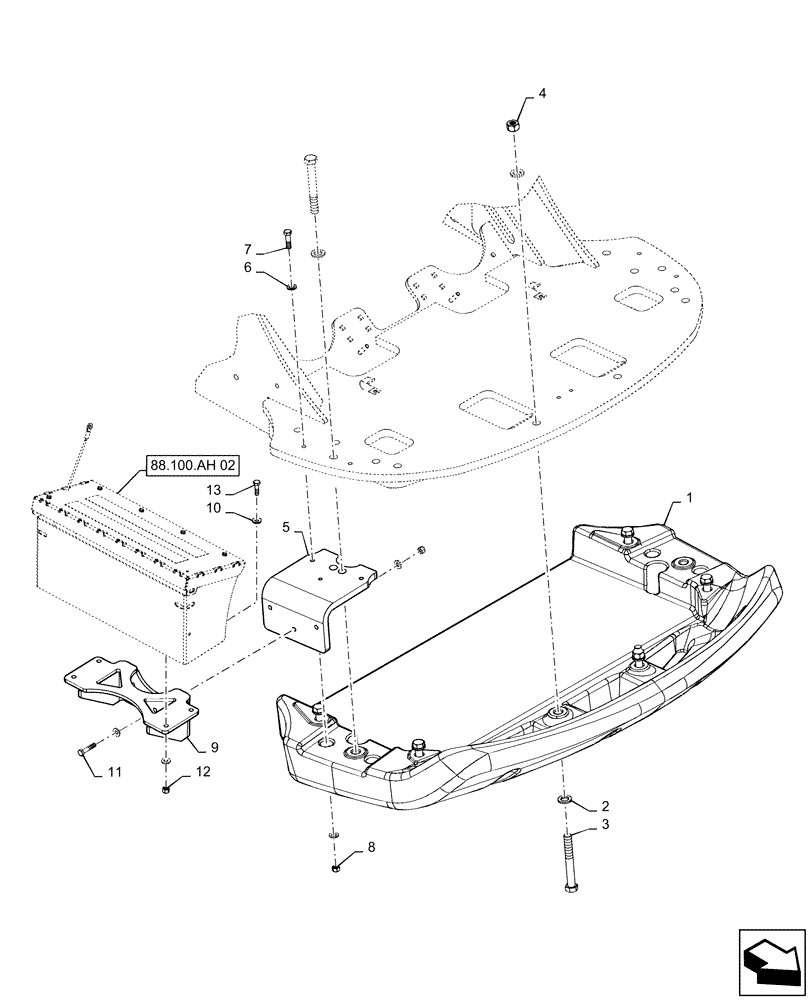

Запчасти Case IH QUADTRAC 620 (39.140.AF[02]) - FRONT BALLAST (39) - FRAMES AND BALLASTING

1

84185284

BALLAST

Front

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

3

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

4

829-1420

NUT,M20, Cl 10

8шт.

5

84187145

BRACKET

Tool Box

2шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

9

84187148

BRACKET

Tool Box Support

2шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

11

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.
