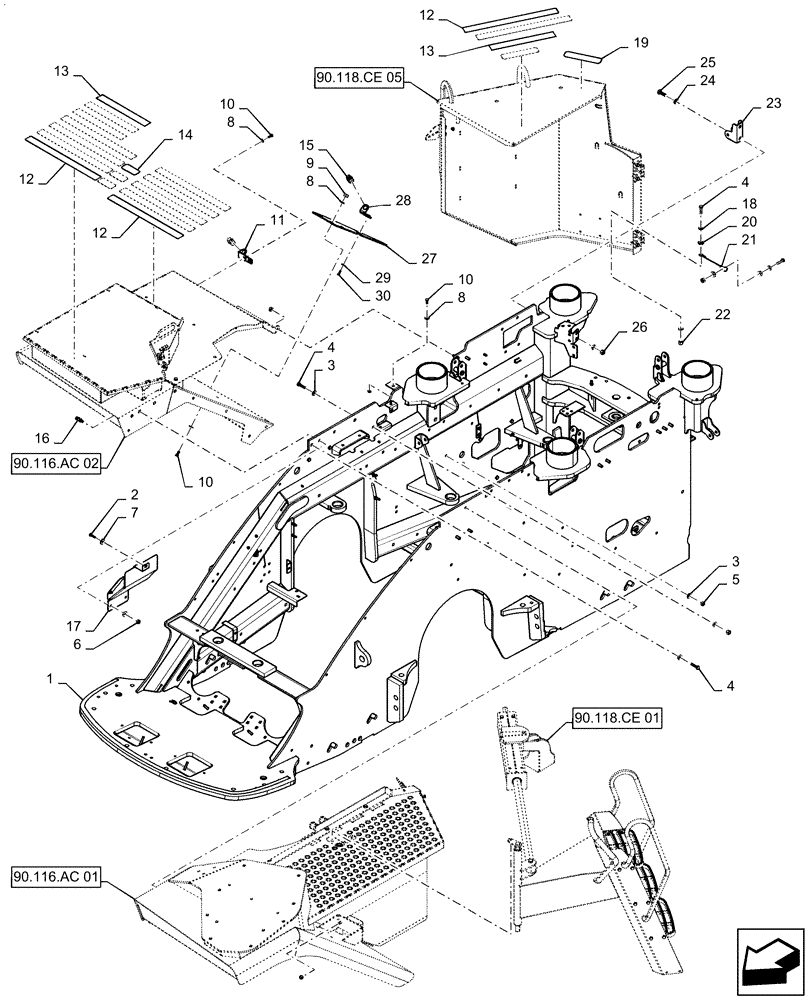

Запчасти Case IH QUADTRAC 620 (39.100.AY) - FRONT FRAME (39) - FRAMES AND BALLASTING

1

84542373

FRAME

Front, Suspended Cab, Serial Range: ZEF300001-ZFF308000

1шт.

1

47699089

FRAME

Front, Suspended Cab, Start Serial: ZFF308001

1шт.

2

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

29шт.

4

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

12шт.

5

829-1412

NUT,M12, Cl 10.9

19шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

7

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

11шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

11

84261782

BRACKET, SUPPORTING

Door Stop

1шт.

12

87307237

ANTI-SKID STRIP,2" x 23-1/4"

2" x 23-1/4"

11шт.

13

26-211

ADHESIVE STRIP

Bulk, Cut To Length Of 16" Each

1шт.

14

87750668

PAD,2" x 4-1/2"

Anti-Skid, 2" x 4-1/2"

3шт.

15

363226A1

BUMPER

Door

2шт.

16

426285A1

STUD

Threaded, M8

35шт.

17

47418827

SHIELD

Debris

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

5шт.

19

D55216

PAD,2" x 9"

2" x 9"

2шт.

20

47455748

BUSHING,12.65mm ID x 17.46mm OD x 4.2mm L

Retaining Cable

2шт.

21

47455742

CABLE,480mm L

Retaining

1шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

23

84485672

BRACKET

Damper

1шт.

24

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

25

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

26

829-1416

NUT,M16, Cl 10

2шт.

27

84600022

FENDER EXTENSION

Fender Plate

1шт.

28

443357A1

BRACKET

Door Stop

1шт.

29

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

30

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
