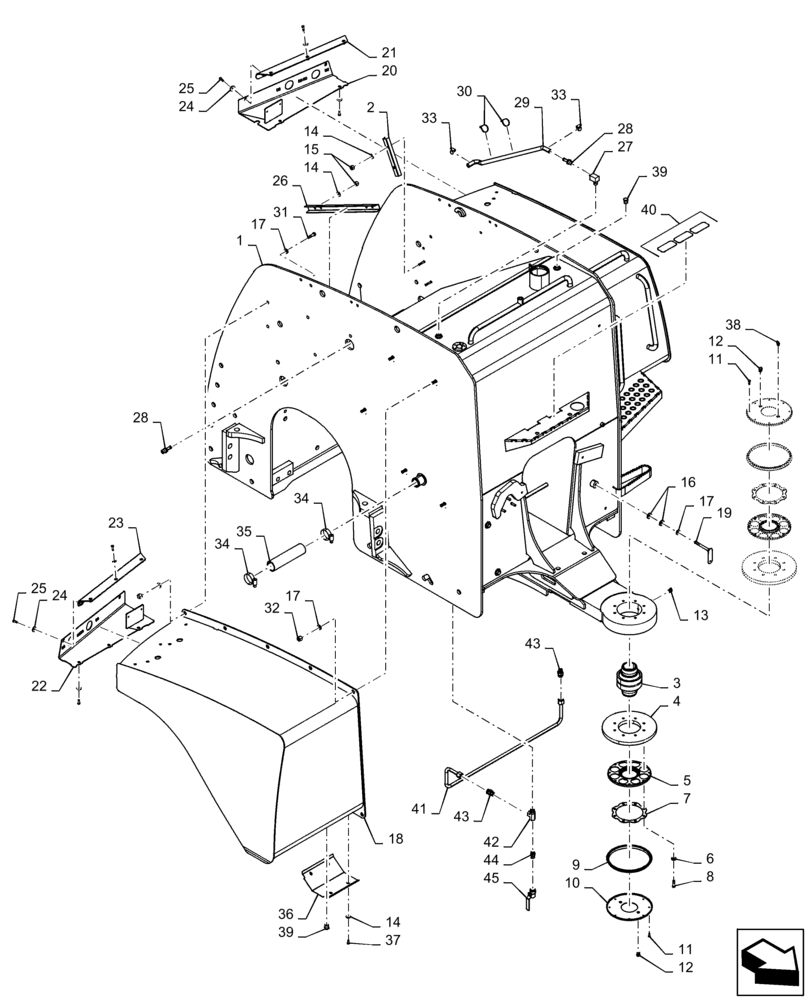

Запчасти Case IH QUADTRAC 620 (39.100.AS[04]) - REAR FRAME, 550, 580, 600, 620, ASN ZEF303001 (39) - FRAMES AND BALLASTING

1

47616568

FRAME

Rear, Fuel Tank

1шт.

2

84348136

CHANNEL

Wire Guard

2шт.

3

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

4

84179787

RING

Retaining

2шт.

5

84151002

HOUSING

Assembly

2шт.

6

432444A1

SPACER

Retaining

16шт.

7

87644212

RETAINING PLATE

Frame Pivot

2шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

9

84307902

RUBBER SEAL

Articulation Joint

2шт.

10

87644215

COVER

Articulation Joint

2шт.

11

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

12

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

16

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

18

47533228

FUEL TANK

RH Fuel

1шт.

19

406390A1

HANDLE

Articulation Lock Storage

1шт.

20

47423446

PANEL

Light Pod, LH, Years: -30-SEP-15

1шт.

W/ Ballast Mount

1шт.

20

47997362

PANEL

Light Pod, LH, Start Year: 01-OCT-15

1шт.

W/O Ballast Mount

1шт.

21

84476765

MOUNTING PLATE

Light Pod Bracket, LH

1шт.

22

47423448

PANEL

LIght Pod, RH, Years: -30-SEP-15

1шт.

W/ Ballast Mount (Shown)

1шт.

22

47997364

PANEL

Light Pod, RH, Start Year: 01-OCT-15

1шт.

W/O Ballast Mount

1шт.

23

84476772

MOUNTING PLATE

Light Pod Bracket, RH

1шт.

24

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

26

84348141

CHANNEL

Wire Guard

1шт.

27

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

28

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

29

84150655

HOSE

Formed Rubber

1шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

31

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.

32

832-10412

NUT,M12 x 1.75, Cl 8

10шт.

33

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

34

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

35

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

Transfer

1шт.

36

84347299

COVER

Fuel Hose

1шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

38

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

39

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

3шт.

40

87750668

PAD,2" x 4-1/2"

Non-Slip, 2" x 4-1/2"

3шт.

41

47648533

TUBE

Fuel Crossover

1шт.

42

84292714

TEE

3/4" - 16 NPT x 3/4" - 16 NPT x 3/4" - 16 NPT

1шт.

43

87351379

HYD CONNECTOR

1" - 14 ORFS x 3/4" - 16 ORB

2шт.

44

47646702

ADAPTER,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

45

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel Drain

1шт.
