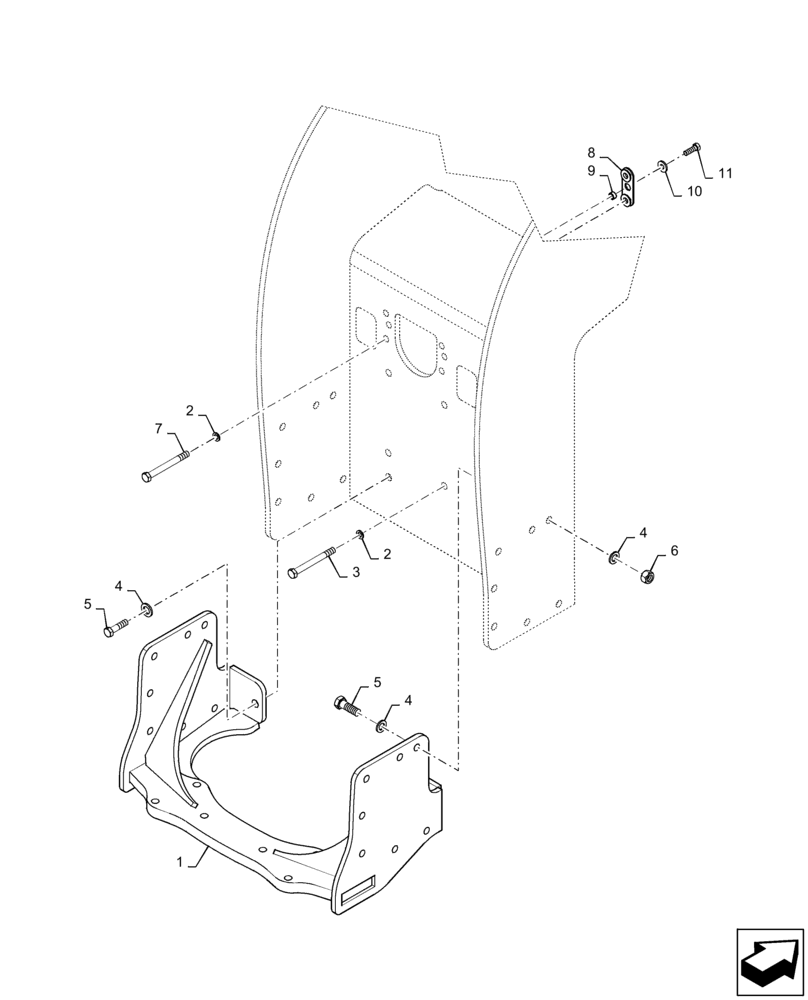

Запчасти Case IH QUADTRAC 620 (37.100.AB[04]) - DRAWBAR HANGER, W/ PTO, 550, 580, 600, 620 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87740181

HANGER

Drawbar

1шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

3

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

4шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

5

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

14шт.

6

829-1424

NUT,M24, Cl 10

12шт.

7

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

8

259389A1

PLATE

Spacer

2шт.

9

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

627-16025

BOLT,Hex, M16 x 2 x 25mm, Cl 10.9, Full Thd

2шт.
