Запчасти Case IH QUADTRAC 620 (37.100.AA[08]) - DRAWBAR, SCRAPER QUICK-HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

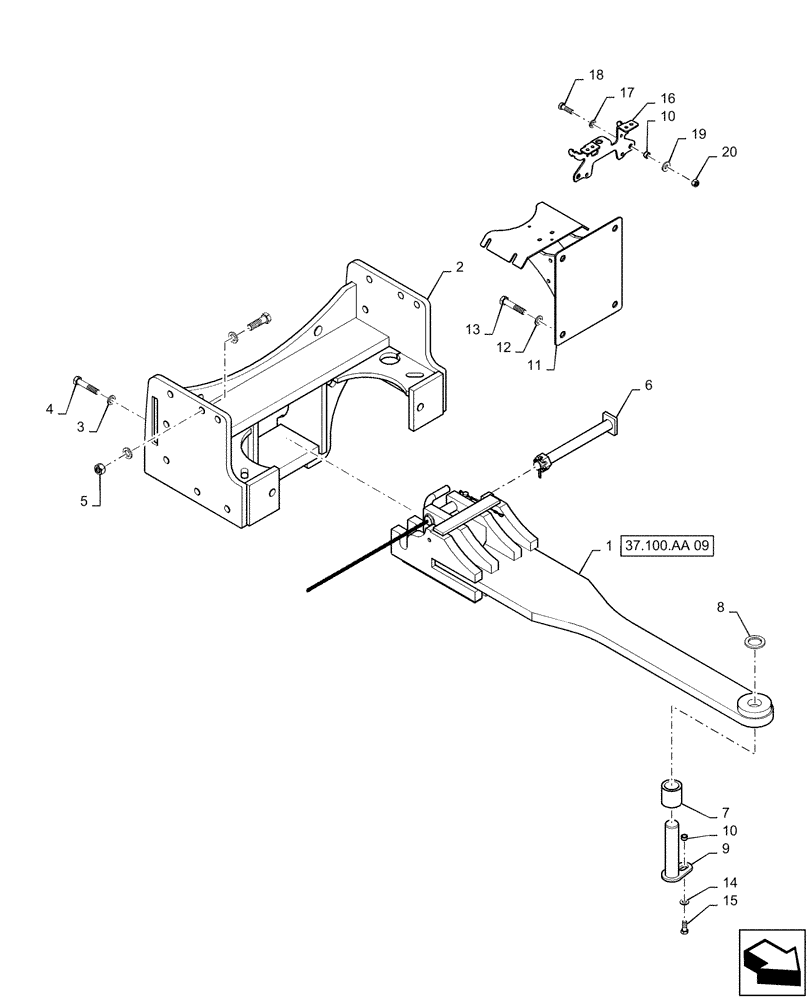

Схема запчастей Case IH QUADTRAC 620 - (37.100.AA[08]) - DRAWBAR, SCRAPER QUICK-HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
17
4
14
7
16
19
9
5
37.100.aa 09
3
1
18
8
6
12
20
15
13
10
10
11

Артикул

Название

Примечание

Количество

1

84268954

DRAWBAR

Scraper Quick Hitch

1шт.

2

87737113

HANGER

Drawbar

1шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

26шт.

4

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

14шт.

5

829-1424

NUT,M24, Cl 10

12шт.

6

84268964

PIN

Drawbar

1шт.

7

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

54mm x 76.2mm x 76mm

1шт.

8

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

2" x 3" x 0.25"

1шт.

9

87524404

PIN,50.65mm OD x 252mm L

Drawbar Mounting

1шт.

10

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

3шт.

11

87311759

MOUNTING PARTS

PTO Cover

1шт.

12

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

13

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

15

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

16

84271889

BRACKET

Optional PTO

1шт.

17

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

18

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

19

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

20

829-1416

NUT,M16, Cl 10

2шт.

Выбрано товаров: 20
