Запчасти Case IH QUADTRAC 620 (27.106.AK[03]) - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK, 550, 580, 600, 620 (27) - REAR AXLE SYSTEM

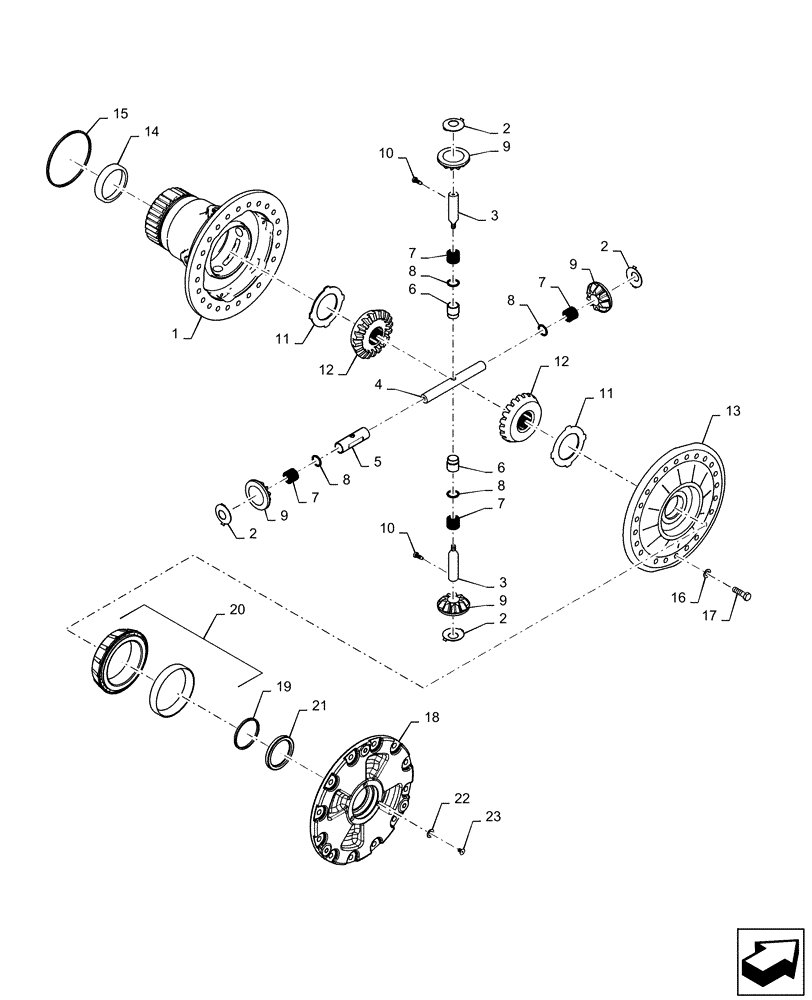

Схема запчастей Case IH QUADTRAC 620 - (27.106.AK[03]) - REAR AXLE DIFFERENTIAL, W/O DIFFERENTIAL LOCK, 550, 580, 600, 620 (27) - REAR AXLE SYSTEM
9
15
16
7
6
2
14
12
22
21
7
23
5
7
8
3
6
9
2
20
13
7
8
19
3
2
9
8
11
10
4
10
12
8
2
18
17
11
9
1

Артикул

Название

Примечание

Количество

1

47650237

CARRIER

Differential Assembly, W/ Plugs

1шт.

2

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential Pinion

4шт.

3

92906C1

SHORT SHAFT

Differential Pinion

2шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

1289349C1

SPACER

Pinion Needle, Long

1шт.

6

1289350C1

SPACER

Pionion Gear, Short

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Pinion Gear

112шт.

8

1289348C1

RING

Needle Bearing, Thrust

4шт.

9

92905C1

PINION

Differential, Machined

4шт.

10

1997421C1

BOLT

Differential Cross Pin

2шт.

11

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential Assembly

2шт.

12

1259633C3

GEAR

Differential Bevel, 20T

2шт.

13

84322117

COVER

Differential, Case W / O Lock

1шт.

14

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

15

148939C1

SEALING RING,OD 200.60 mm

Differential, Lock

1шт.

16

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

17

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

18

84140079

BEARING CARRIER

Differential

1шт.

19

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Ring, Seal, Differential

1шт.

20

84160921

TAPERED BEARING

Assembly

1шт.

21

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

22

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

23

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

Выбрано товаров: 23
