Запчасти Case IH QUADTRAC 620 (27.106.AC[03]) - REAR AXLE CARRIER, 550, 580, 600, 620, BEFORE AXLE SN AJB0298275 (27) - REAR AXLE SYSTEM

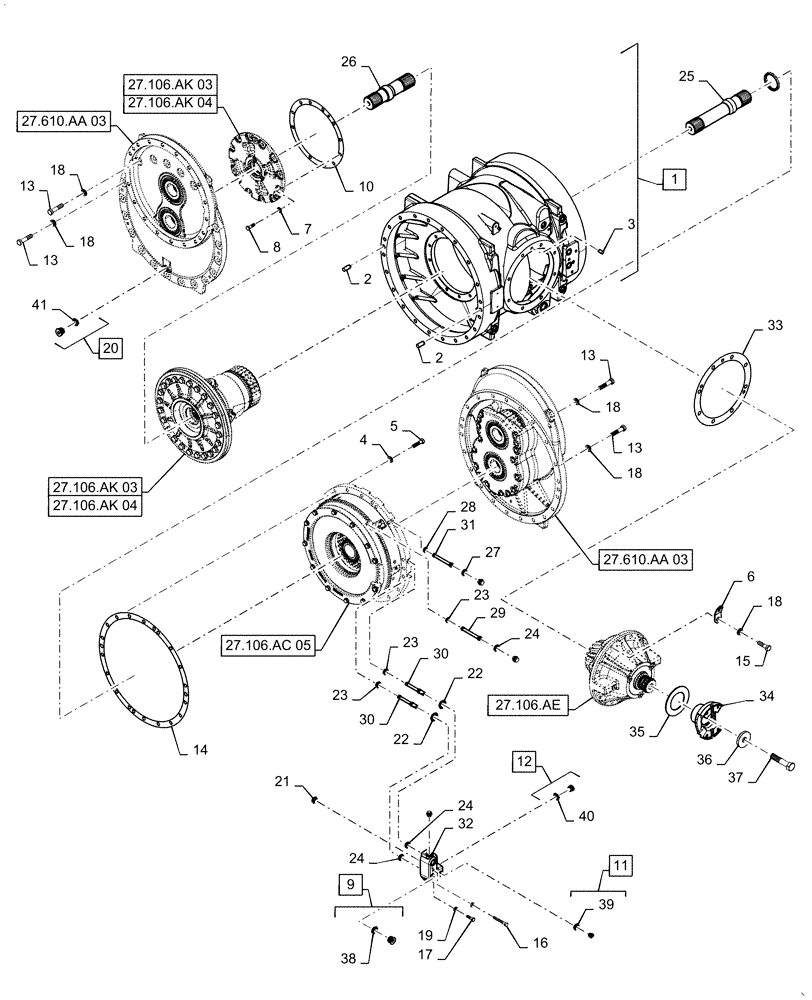

Схема запчастей Case IH QUADTRAC 620 - (27.106.AC[03]) - REAR AXLE CARRIER, 550, 580, 600, 620, BEFORE AXLE SN AJB0298275 (27) - REAR AXLE SYSTEM
27.106.ac 05
24
36
22
10
6
30
37
41
14
34
15
9
18
39
2
31
3
21
8
24
13
1
29
13
16
2
35
12
24
11
27
4
19
38
23
23
30
33
17
13
13
18
18
18
28
23
18
5
20
40
32
25
26
7
22
27.106.ak 04
27.106.ak 04
27.106.ak 03
27.106.ak 03
27.610.aa 03
27.610.aa 03
27.106.ae

Артикул

Название

Примечание

Количество

1

87438234

AXLE HOUSING

Incl 2 - 3

1шт.

2

837-16040

DOWEL,M16 x 40

6шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

5

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

6

87306552

BRACKET

Rear Axle

1шт.

7

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

8

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

9

221579A1

PLUG,M22 x 1.5 ORB

Incl 38

1шт.

10

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

10

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

10

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

10

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

11

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 39

1шт.

12

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 40

1шт.

13

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

32шт.

14

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

14

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

14

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

14

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

15

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

16

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

18

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

20

221578A1

PLUG,M18 x 1.5 ORB

Incl 41

2шт.

21

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

22

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

23

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

3шт.

24

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

25

279843A2

SHAFT,364mm L

Drive, Long

1шт.

26

279844A2

SHAFT,271mm L

Drive, Short

1шт.

27

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

28

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

29

298567A1

TUBE,11.85 mm OD, 156 mm Length

Park Brake Jumper

1шт.

30

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

Lube Jumper

2шт.

31

284188A1

TUBE,7.47 mm ID, 11.85 mm OD, 120 mm Length

Service Brake Jumper

1шт.

32

428862A1

MANIFOLD

Axle Lube

1шт.

33

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

33

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

33

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

33

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

34

87659900

YOKE

Rear Axle, 9C

1шт.

35

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

35

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

35

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

35

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

36

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

1шт.

37

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

38

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

39

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

40

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 53
