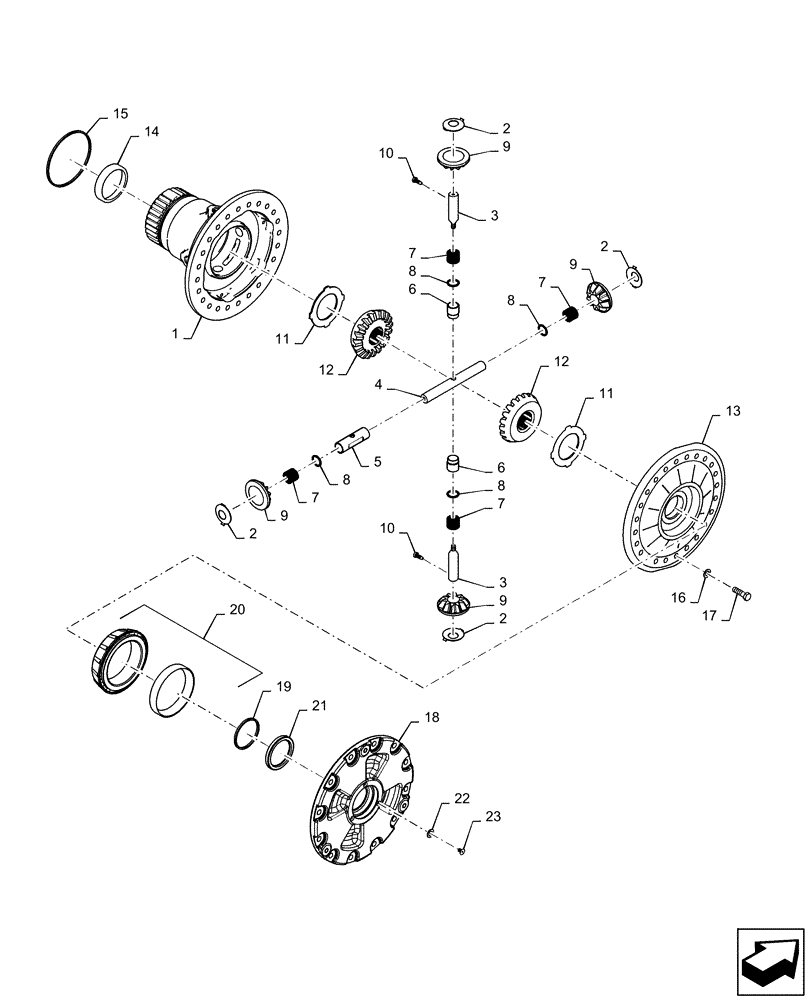

Запчасти Case IH QUADTRAC 620 (25.102.AD[08]) - FRONT DIFFERENTIAL CARRIER, W/O DIFFERENTIAL LOCK, 550, 580, 600, 620 (25) - FRONT AXLE SYSTEM

1

47650237

CARRIER

Incl 19

1шт.

2

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential Pinion

4шт.

3

92906C1

SHORT SHAFT

Differential Pinion

2шт.

4

92907C1

SHAFT

Differential Pinion, Long

1шт.

5

1289349C1

SPACER

Long, Pinion Needle

1шт.

6

1289350C1

SPACER

Short, Pinion Needle

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Pinion Gear

112шт.

8

1289348C1

RING

Needle Bearing Thrust

4шт.

9

92905C1

PINION

Differential

4шт.

10

1997421C1

BOLT

Differential Cross Pin

2шт.

11

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

95mm ID x 143mm OD

2шт.

12

1259633C3

GEAR

Differential Bevel, 20 Teeth

2шт.

13

84322117

COVER

Differential Case, No Lock

1шт.

14

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

15

148939C1

SEALING RING,OD 200.60 mm

1шт.

16

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

17

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

18

84140079

BEARING CARRIER

Cover Plate

1шт.

19

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Differential Carrier

1шт.

20

84160921

TAPERED BEARING

Incl Bearing Cup

1шт.

21

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

22

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

23

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.
