Запчасти Case IH QUADTRAC 620 (21.135.AQ[07]) - TRANSMISSION CONTROL VALVE, RANGE GEAR, ASN ZFF308001 (21) - TRANSMISSION

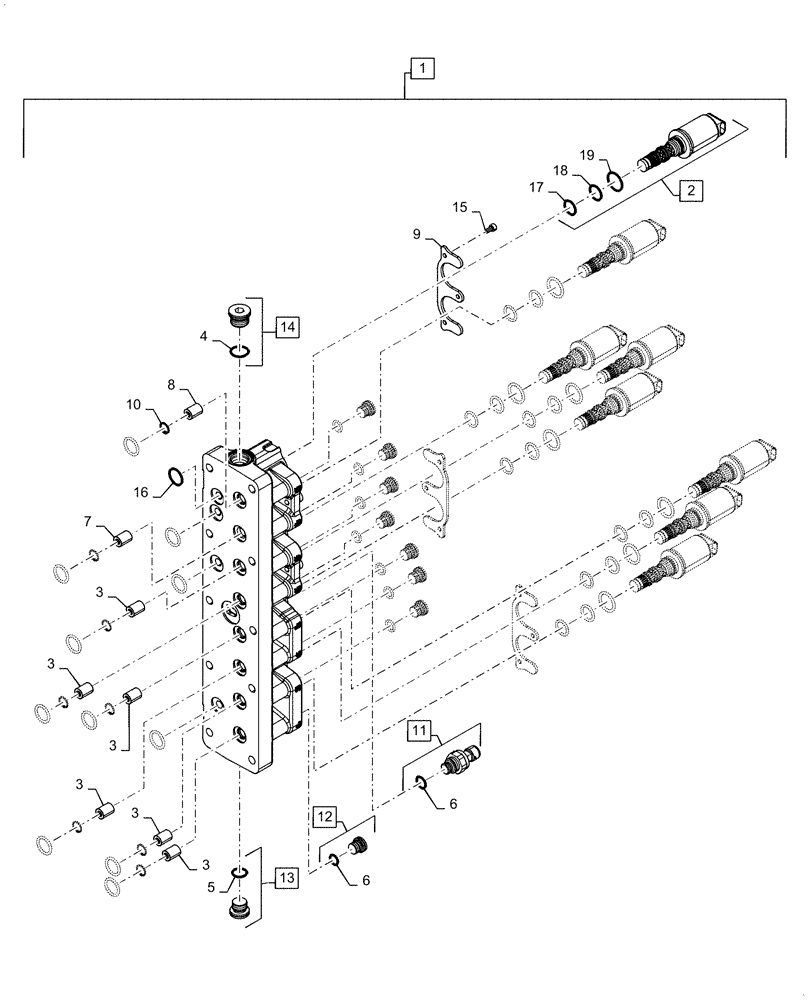

Схема запчастей Case IH QUADTRAC 620 - (21.135.AQ[07]) - TRANSMISSION CONTROL VALVE, RANGE GEAR, ASN ZFF308001 (21) - TRANSMISSION
3
7
3
8
2
14
13
11
16
12
9
15
3
6
4
3
3
6
10
3
18
17
19
5
1

Артикул

Название

Примечание

Количество

1

47849518

VALVE

Powershift, Incl 2 - 22

1шт.

2

84173878

SOLENOID

PWM, Incl 17 - 19

8шт.

3

87350429

CHECK VALVE

3.45mm

5шт.

4

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

9шт.

7

47936346

CHECK VALVE,4.089mm

1шт.

8

47936347

CHECK VALVE,6.35mm

1шт.

9

47849519

COVER

Plate

3шт.

10

100-2156

SNAP RING,0.562", Int, #56

8шт.

11

86987513

SENSOR

PWM Transmission Pressure, Incl 20

1шт.

12

86598044

PLUG,Hex, M14 x 1.5 ORB

Incl 6

8шт.

13

221578A1

PLUG,M18 x 1.5 ORB

Incl 5

1шт.

14

221579A1

PLUG,M22 x 1.5 ORB

Incl 4

1шт.

15

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

9шт.

16

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

12шт.

17

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

8шт.

18

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

8шт.

19

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

8шт.

Выбрано товаров: 19
